11.4
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

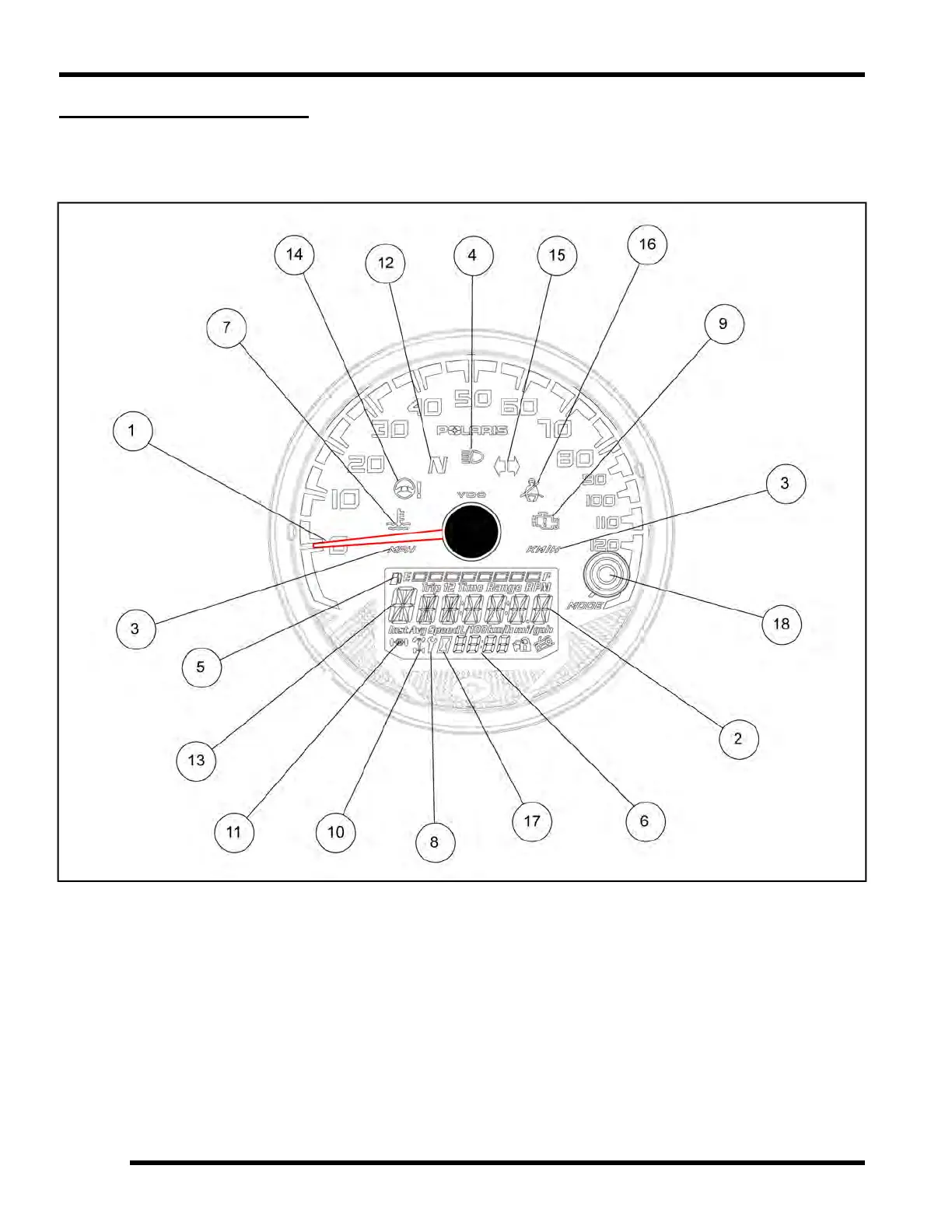

INSTRUMENT CLUSTER
Overview
The instrument cluster displays critical vehicle information to the user. Reference the following page for display
functions and descriptions.
NOTE: Some features are not applicable to all models.
The use of a high pressure washer may damage the instrument cluster. Wash the vehicle by hand or with a
garden hose using mild soap. Certain products, including insect repellents and chemicals, will damage the
instrument cluster lens. Do not use alcohol to clean the instrument cluster. Do not allow insect sprays to
contact the lens. Immediately clean off any gasoline that splashes on the instrument cluster.
The rider information display is located in the instrument cluster. All segments will light up for 1 second at start-up.
NOTE: If the instrument cluster fails to illuminate, a battery over-voltage may have occurred and the
instrument cluster may have shut off to protect the electronic speedometer.
ELECTRICAL
