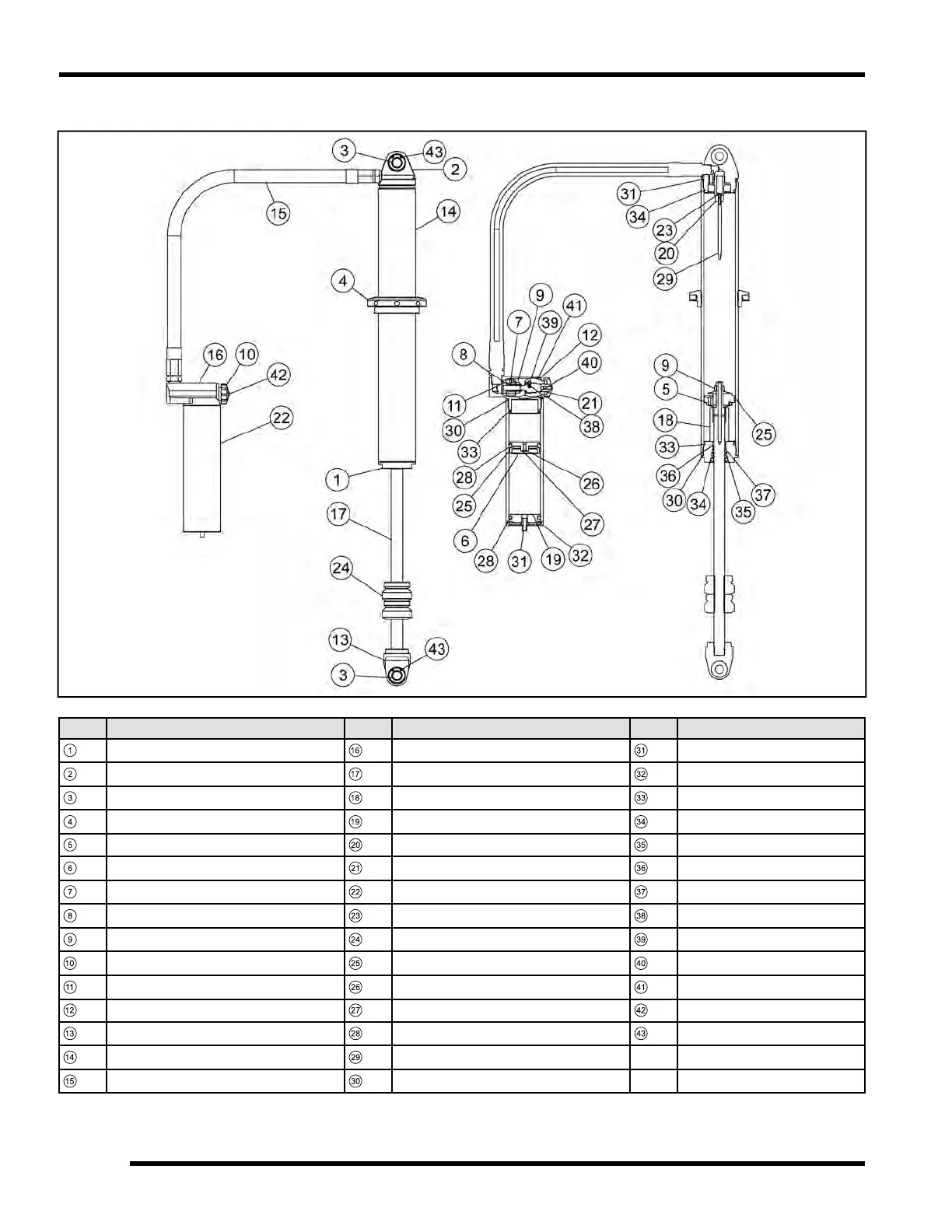

Walker Evans™ 2.5" Rear Shock
REF DESCRIPTION REF DESCRIPTION REF DESCRIPTION
1
Seal Head Asm.
16
Adjuster Mount
31
Schraeder Valve
2
Bearing w/ Needle Slot
17
Needle Shaft
32
Snap Ring
3
Spherical Bearing
18
Spacer
33
O-Ring
4
Spring Nut
19
End Cap
34
Wiper
5
Piston
20
Needle Bolt
35
Shaft Seal
6
Reservoir Piston
21
Adjuster Nut
36
Shaft Bushing (0.750")
7
Check Valve
22
Reservoir Body
37
O-Ring
8
Clicker Bolt
23
Bleed Screw
38
Detent Spring
9
Crimp Nut
24
Bump Stop
39
Detent Ball
10
Adjuster Knob
25
Wear Band
40
O-Ring
11
Ball (.250")
26
O-Ring
41
O-Ring
12
Retention Nut
27
Screw
42
Screw
13
9/16 Heim Shaftloop
28
O-Ring
43
Snap Ring
14
Shock Body
29
Needle
15
Hose
30
O-Ring
