9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

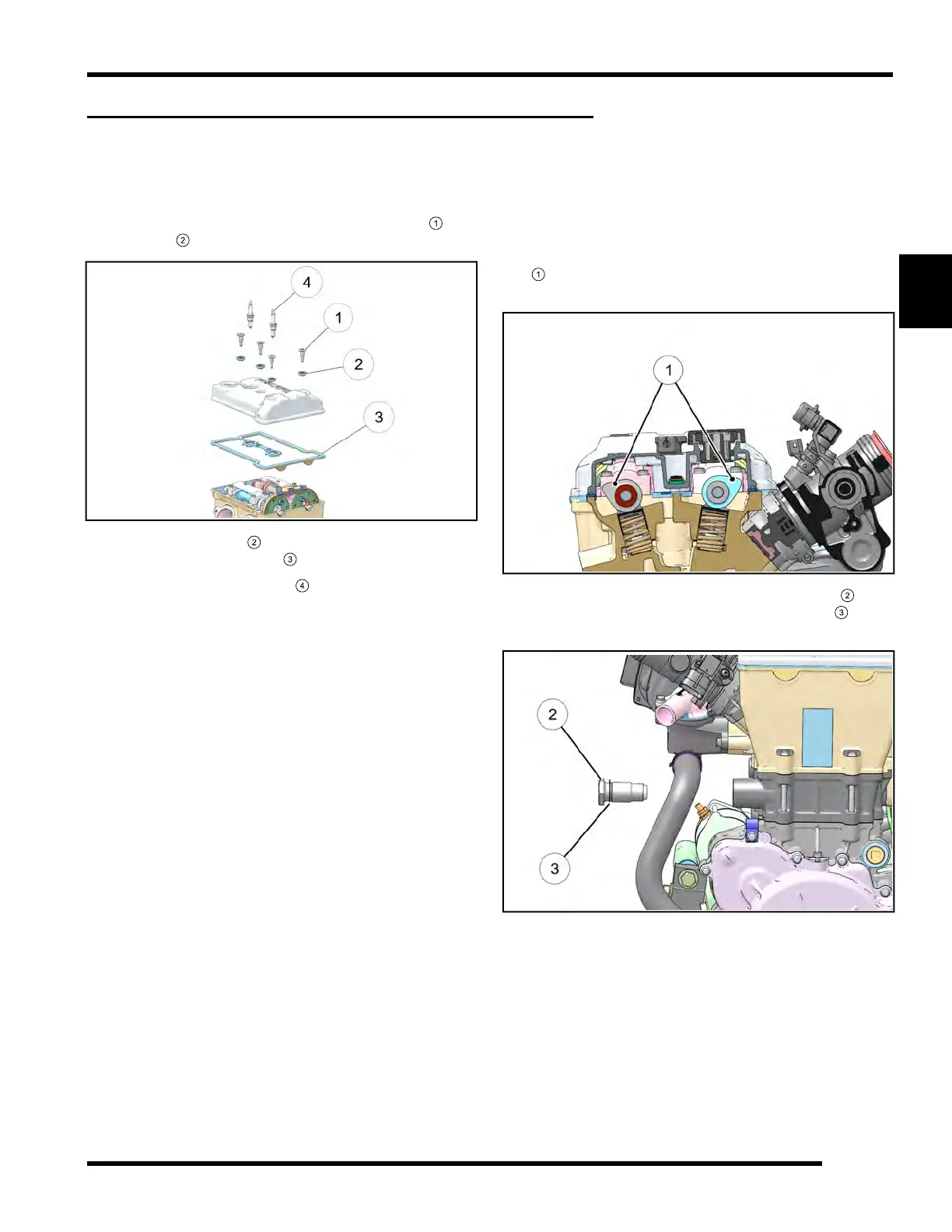

ENGINE DISASSEMBLY / INSPECTION - TOP END
Valve Cover Removal
NOTE: The valve cover can be removed with the
engine installed in the chassis.
1. Remove the four valve cover shoulder bolts
1
and
isolators
2
using a T40 driver.
2. Replace isolators
2
when they are removed and
replace valve cover seal
3
if oil leaks are evident.
3. Remove the spark plugs
4
. Stuff spark plug holes
with shop towels to prevent anything from falling into
the combustion chamber.
Camshaft Removal
NOTE: The camshafts can be removed with the
engine installed in the chassis.
1. Rotate the engine so the PTO cylinder is at Top
Dead Center (TDC) to relieve most of the valve
spring pressure. The camshaft lobes should face out
1
and the slots on the end of the camshafts should
line up.
2. Remove the hydraulic cam chain tensioner
2
from
the cylinder. Replace the sealing washer
3
upon
reassembly.
