7.28

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

Support Bearing Replacement

1. Remove the rear prop shaft from the vehicle (see

Chapter 7 – Rear Prop Shaft Removal, page 7.24).

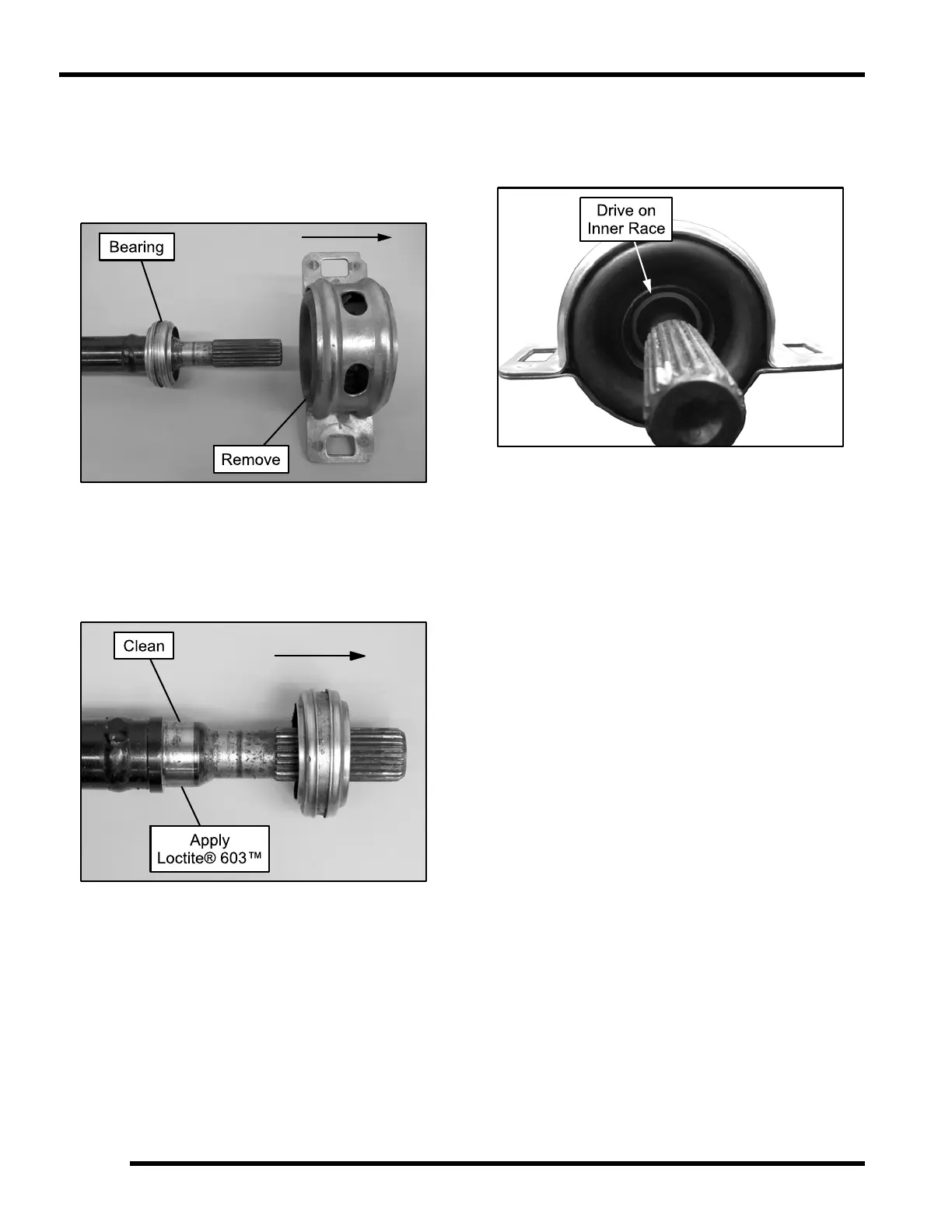

2. Using a rubber mallet, remove the rubber isolated

bearing support from the shaft to expose the bearing.

3. Using a commercially available 2-jaw puller, remove

the bearing from the end of the propshaft.

4. Clean the bearing mounting surface on the shaft and

apply Loctite

603

™

retaining compound to the

clean surface.

5. Install the new support bearing assembly onto the

end of the prop shaft.

NOTE: Do not attempt to separate the bearing

from the rubber isolated support assembly upon

installation.

6. Using an appropriate bearing/bushing installation

sleeve, drive the support bearing assembly onto the

propshaft until it seats against the shoulder on the

shaft.

NOTE: Take care while installing the support

bearing assembly. Be sure to only drive on the

inner race of the bearing. Driving on the bearing

or support in any other location will damage the

bearing or support assembly.

7. Wipe the bearing and shaft clean of any excess

retaining compound.

NOTE: Use care to not allow any of the Loctite

compound to get in the bearing.

8. Install the rear prop shaft into the vehicle (see

Chapter 7 – Rear Prop Shaft Installation, page

7.25).

FINAL DRIVE
