Transmission Disassembly

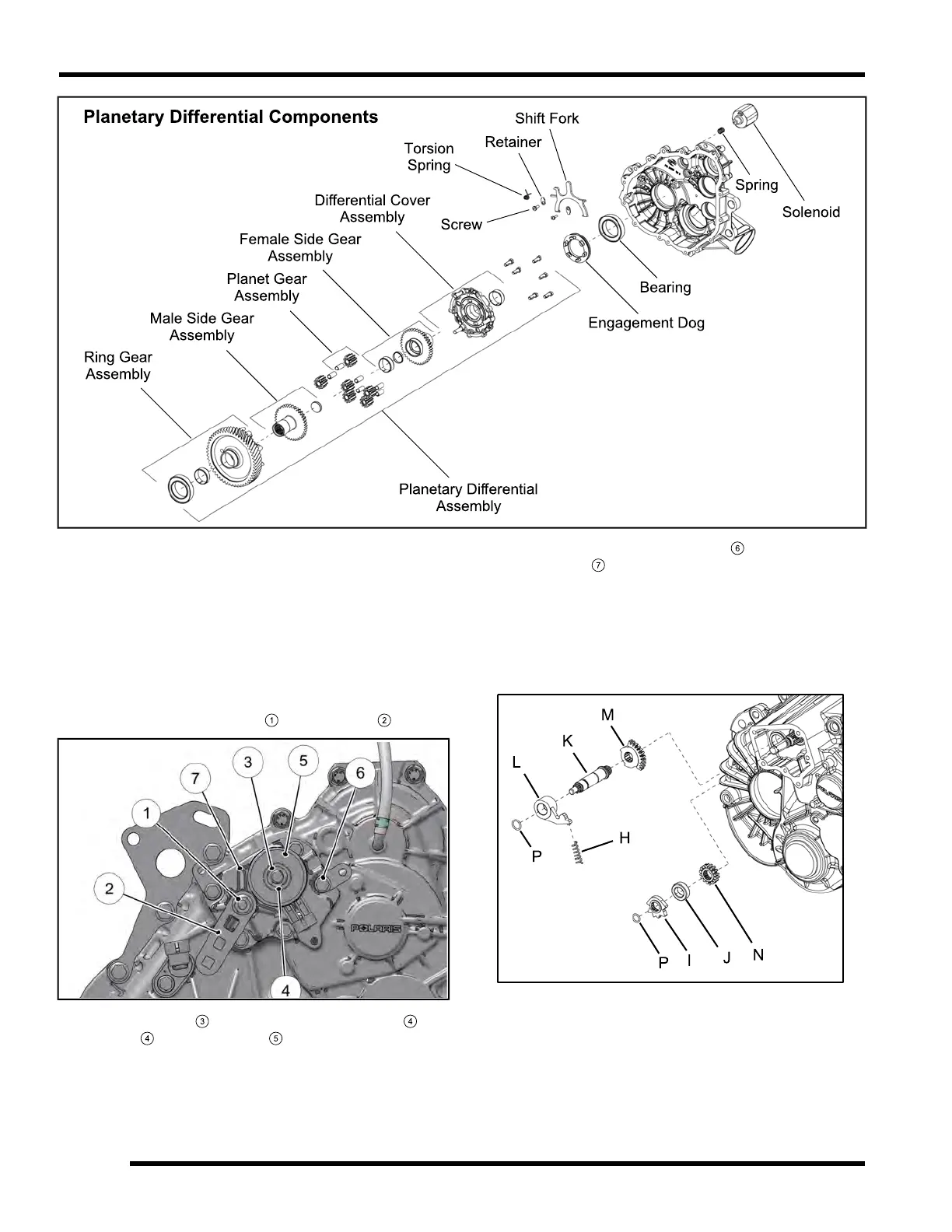

NOTE: Refer to the exploded view at the end of this
chapter as a reference.
1. Place transmission in High gear before disassembly.
2. Drain and properly dispose of the transmission
lubricant (see Chapter 2 – Transmission Lubrication,
page 2.23).
3. Remove the bellcrank nut
1
and bellcrank
2
.
4. Remove E-clip
3
that retains spring washer
4
, flat
washer
4
and gear switch
5
. Remove the switch.
5. Remove the sector cover bolts
6
and remove the
sector cover
7
.
NOTE: Removal can be aided by using your
thumbs to press in on the shafts while pulling
out the cover with your fingers.
6. Remove the compression spring (H).
7. Remove the detent star (I). Note how the detent star
fits onto the splined shaft with the raised edge facing
outward for reassembly.
8. Remove the spacer (J).
