3.50
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

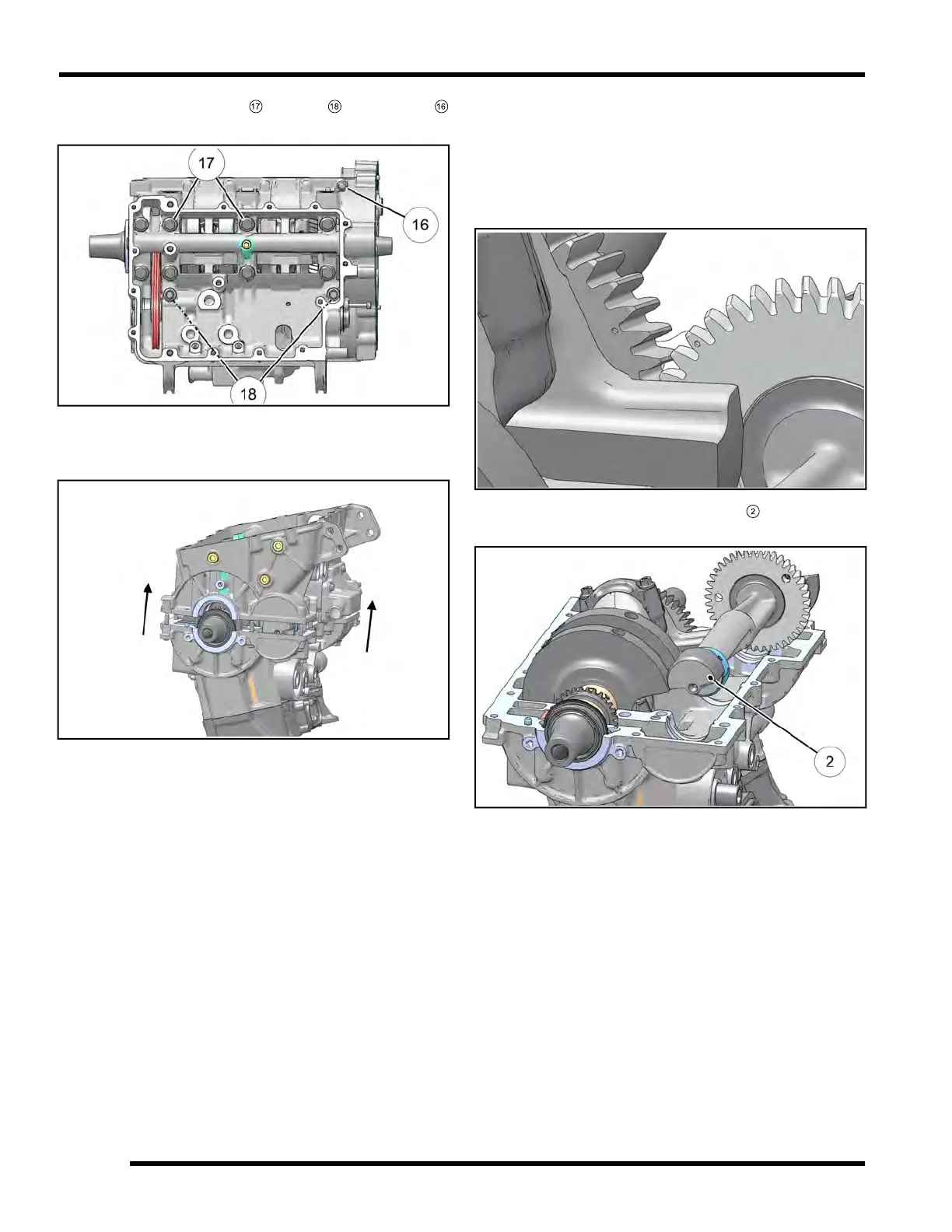

16. Remove the eight M10
, two M8
and one M6
lower crankcase bolts. Discard the eight M10 bolts.
17. Tap on the lower crankcase in reinforced areas with
a soft faced hammer to loosen. Carefully lift up and
remove the lower crankcase half.
Balance Shaft Removal / Inspection
1. Perform Crankcase Disassembly / Inspection, page
3.48 procedure.
2. Note timing marks on balance shaft and crankshaft
drive gears. Shafts must be properly timed upon
assembly.
3. Carefully rotate the balance shaft
and remove it
from the crankcase.
4. Inspect the balance shaft gear teeth for damage.
ENGINE / COOLING SYSTEM
