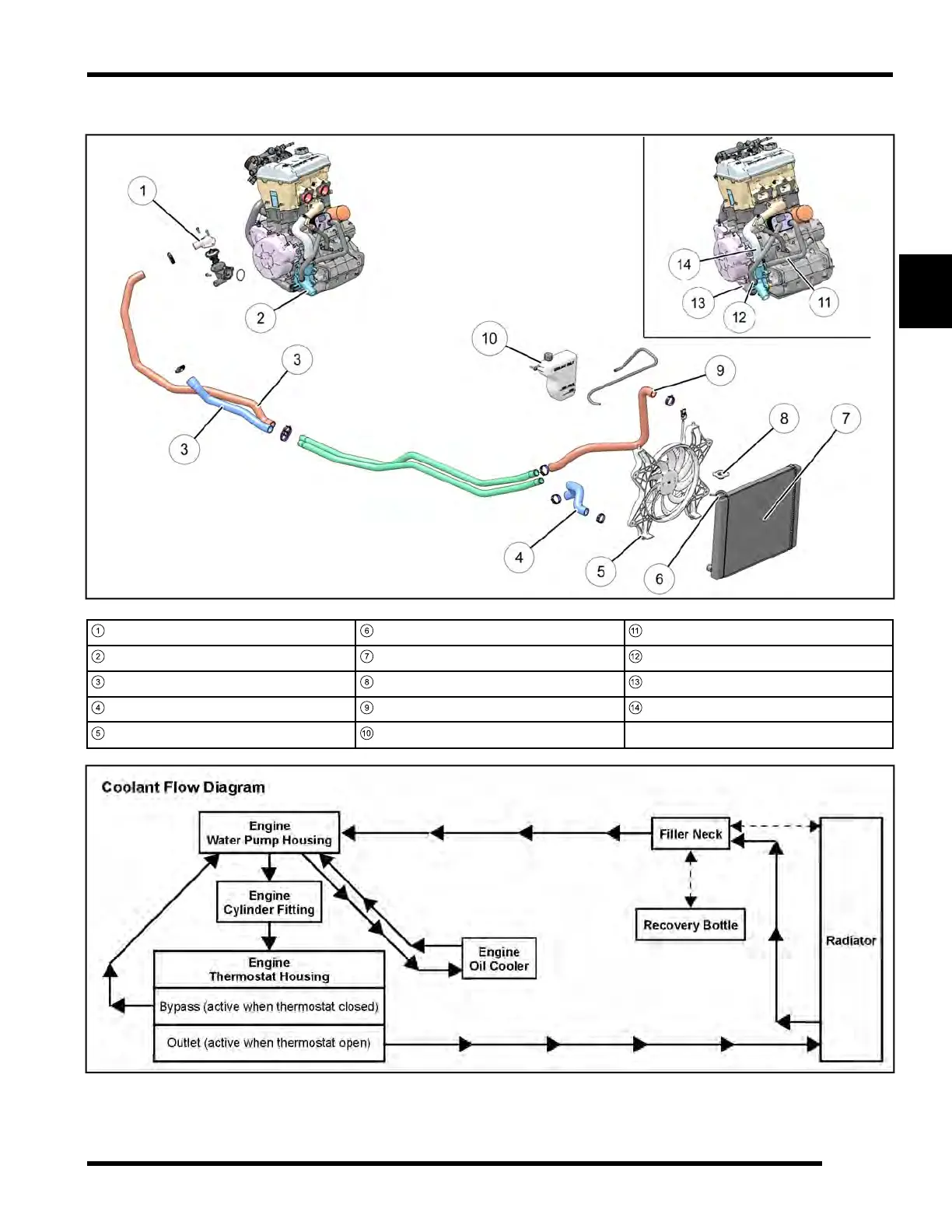

Cooling System Assembly View
1
Thermostat housing
6
Filler Neck
11
Oil Cooler Inlet Hose
2
Water Pump
7
Radiator
12
Oil Cooler Outlet Hose
3
Engine Hoses
8
Pressure Cap
13
Bypass Hose
4
Lower Radiator Hose
9
Upper Radiator Hose
14
Water Pump Outlet Hose
5
Fan Assembly
10
Recovery Bottle
ENGINE / COOLING SYSTEM
