5.21

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

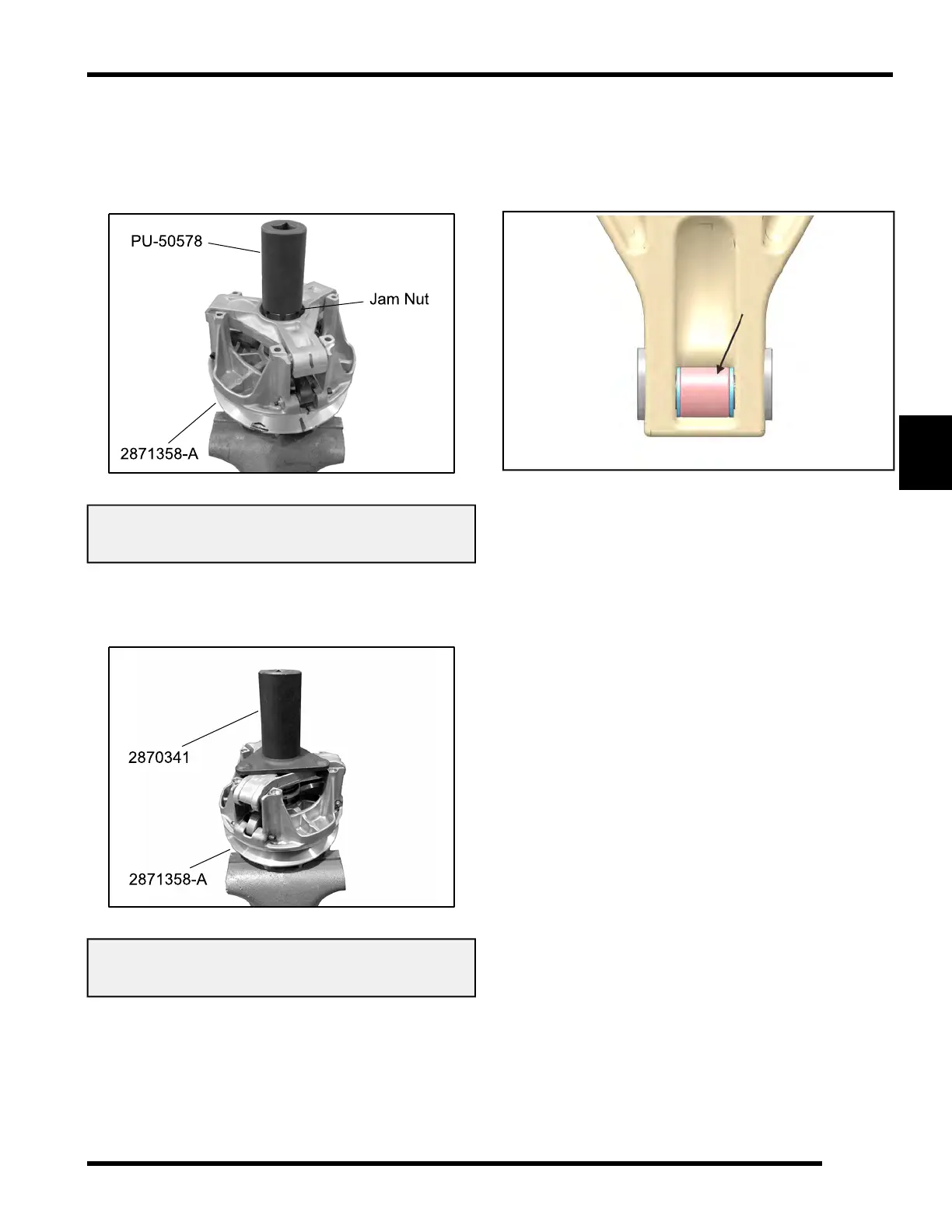

Spider Removal

1. Install clutch onto holding fixture (2871358-A) and

secure in bench vice. Loosen and remove the spider

jam nut (counterclockwise) using the Clutch Spider

Nut Socket (PU-50578).

Clutch Spider Nut Socket: PU-50578

Clutch Holding Fixture: PN 2871358-A

2. Loosen and remove the spider (counterclockwise)

using Clutch Spider Removal / Installation Tool (PN

2870341).

Spider Removal / Installation Tool: 2870341

Clutch Holding Fixture: 2871358-A

Roller, Pin, and Thrust Washer Inspection

1. Inspect all rollers, roller bushings and roller pins by

pulling a flat metal rod across the roller.

2. Turn roller with your finger. If you notice resistance,

galling, or flat spots, replace the drive clutch.

NOTE: Rollers, pins, thrust washers and buttons

are not serviceable at the time of this publication.

PVT SYSTEM
