SHIFT LEVER
Removal

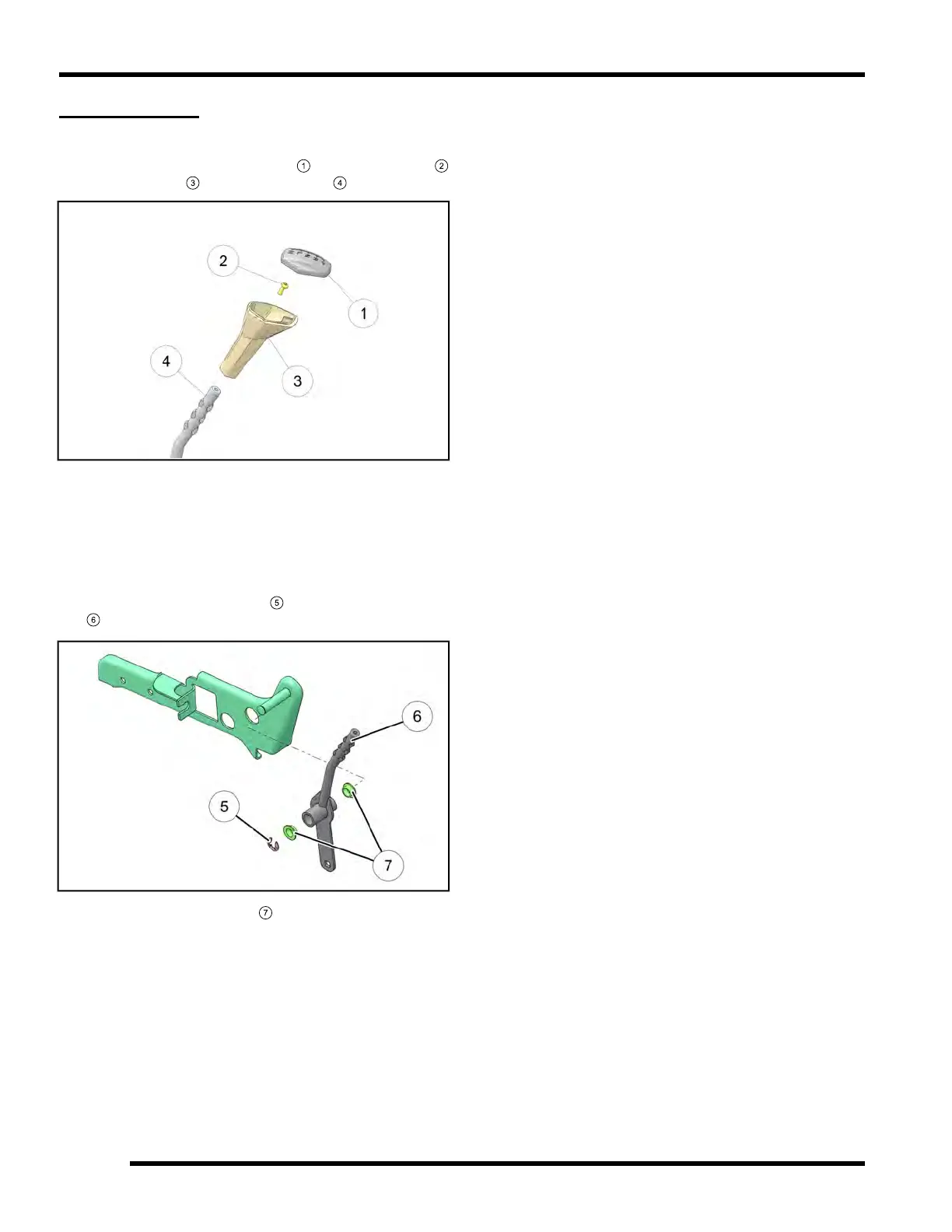

1. Remove the shift knob cover
1
, retaining screw
2
and shift knob
3
from the shift lever
4
.
2. Remove the screws retaining the center console
using a T27 and T30 Torx driver. Remove the
console from the vehicle.
3. Remove the clip and washer retaining the shift cable
to the shift lever and disconnect the cable end from
the lever.
4. Remove the retaining ring
5
and slide the shift lever
6
off the mounting bracket and out from the frame.
5. Remove both bushings
7
from the shift lever and
service as needed.
Installation
1. Perform the removal steps in reverse order to install
the gear shift lever (lever, cable, console, shift knob).
