9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

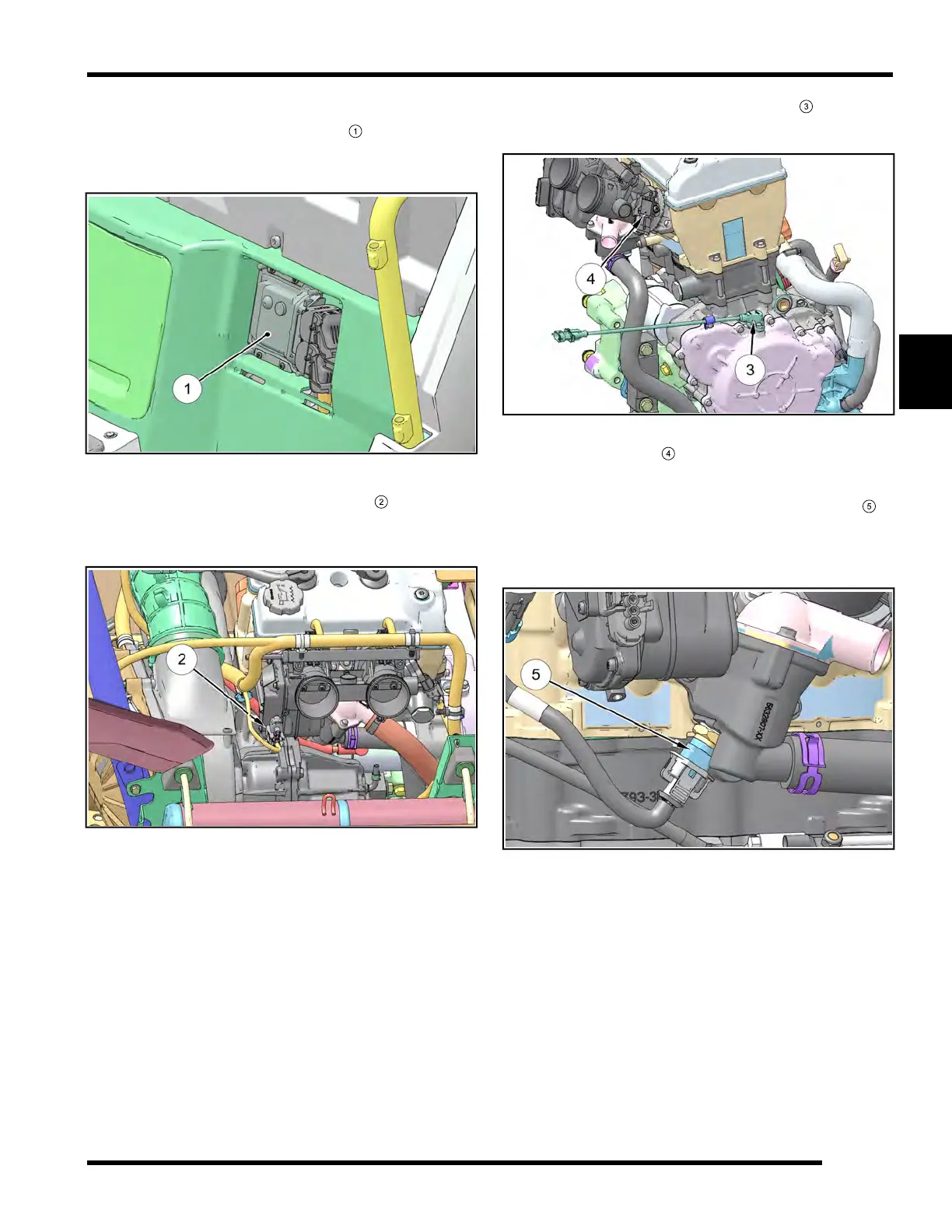

EFI System Component Locations
• Electronic Control Unit (ECU)
1
Behind driver’s seat. Behind LR seat on RZR XP 4
1000.
• Electronic Throttle Control (ETC)
2
Located on the PTO side of the throttle body
assembly.
• Crankshaft Position Sensor (CPS)
3
Located on top of the stator cover.
• Temperature and Manifold Absolute Pressure
(TMAP) Sensor
4
Located on the Mag side of the throttle body.
• Engine Coolant Temperature Sensor (ECT)
5
Located on the left side of the thermostat housing.
The sensor can be accessed with the air box
assembly removed.
