11.39

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

Starter Motor Removal

1. Remove driver side seat and disconnect the battery.

2. Raise and support rear of vehicle.

3. Remove the RH rear wheel.

4. Remove (+) positive wire from starter motor terminal.

5. From the RH side wheel well using an 8mm flex

socket, remove the negative battery cable nut and

the two fasteners securing the starter motor to the

engine.

NOTE: The (-) negative battery cable is mounted

to the engine using the upper starter mounting

bolt / stud.

6. Remove the starter from the engine.

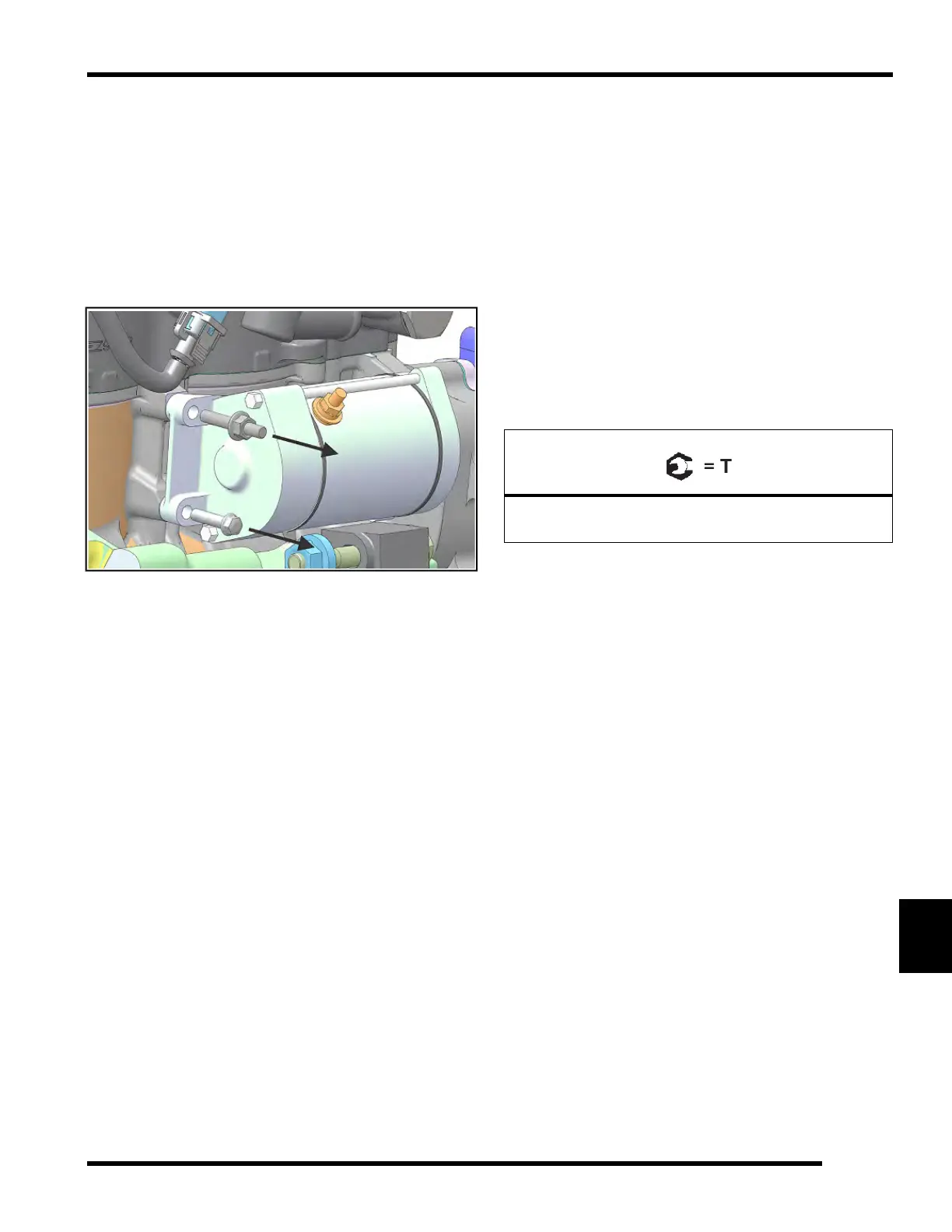

Starter Motor Installation

1. Inspect and replace starter motor O-ring if needed.

2. Lubricate starter motor O-ring with fresh engine oil.

3. Install the starter motor onto the engine case.

4. Hand tighten the upper starter mounting bolt / stud.

5. Install and torque the lower mounting bolt to

specification.

NOTE: Tighten the lower starter bolt first, as the

bottom hole acts as a pilot hole to properly align

the starter drive (bendix) with the flywheel. This

helps prevent binding and starter damage.

6. Torque upper starter mounting screw to specification.

7. Install (-) negative battery cable to the upper starter

mounting bolt / stud. Torque nut to specification.

Starter Mounting Bolts and Nut:

7 ft-lb (10 Nm)

ELECTRICAL
