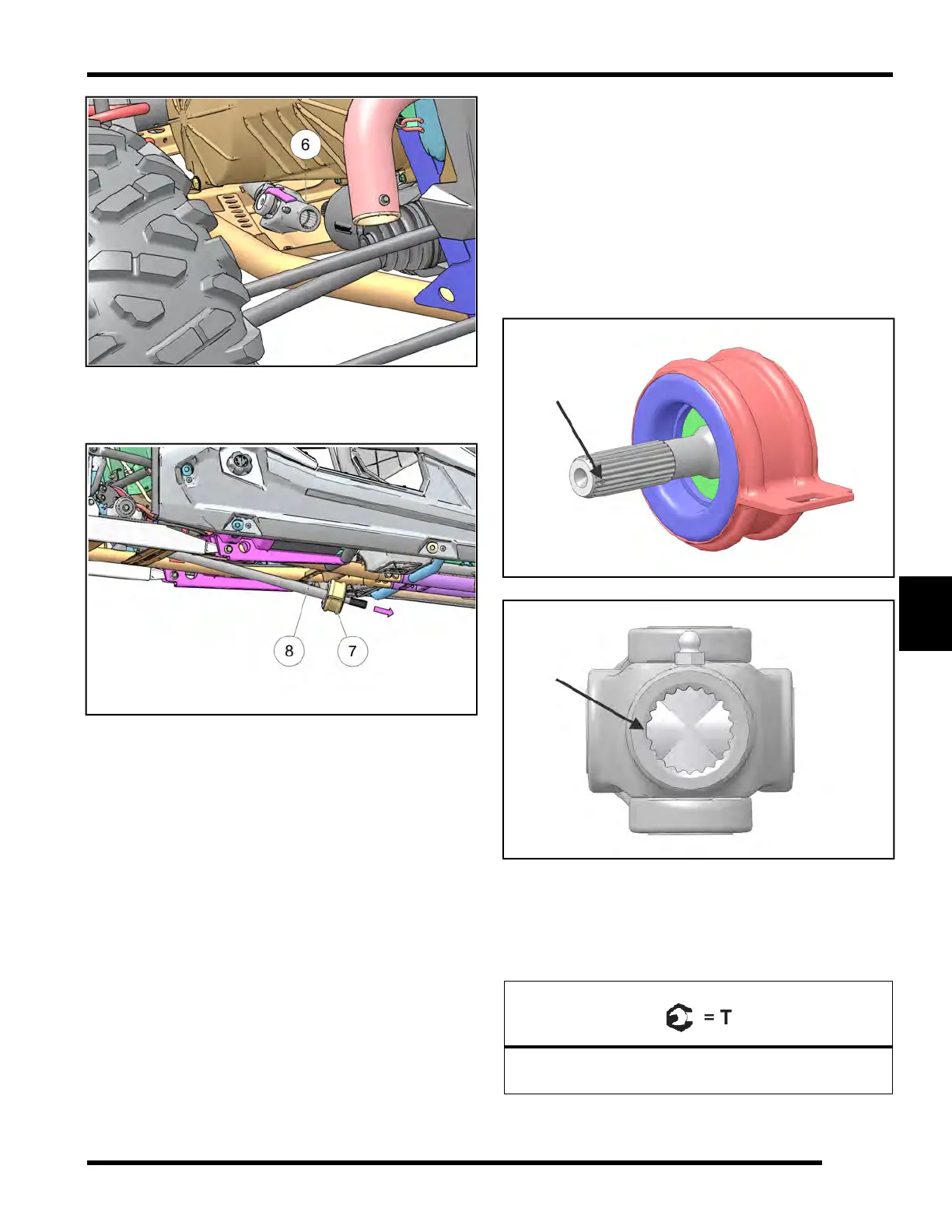

7. Slide the prop shaft to the rear of the vehicle until the
front of the shaft clears the frame support and slide
the prop shaft forward out of the vehicle.
Rear Prop Shaft Installation XP 4
1. Reverse the appropriate Rear Prop Shaft Removal
XP 4, page 7.26 procedure to reinstall the rear prop
shaft.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Align the front and rear prop shafts and slide them
together.
NOTE: Paint marks are applied to the front and
rear propshafts to aid shaft alignment. Reference
these marks during installation if still visible.
5. Torque the support bearing fasteners to specification.
Support Bearing Fasteners:
35 ft-lb (47 Nm)
