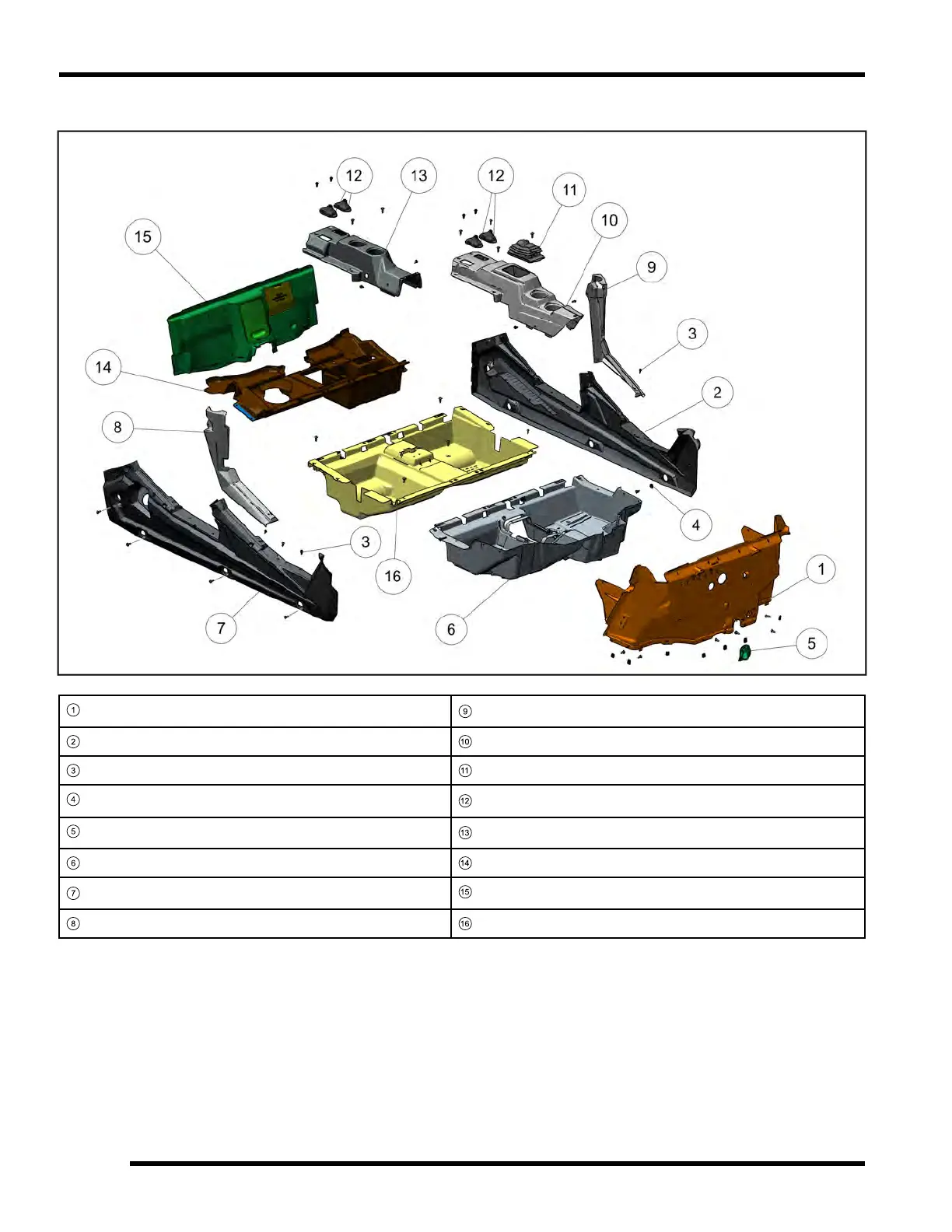

Floor / Rocker Panels XP 4
1
Main Floor Upper
9
B-Pillar Cover LH
2
Rocker LH
10
Console Front
3
Rivet
11
Shifter Boot
4
U-Type Nuts
12
Seat Belt Boot Front
5
Block Off Flap
13
Console Rear
6
Main Floor Lower
14
Lower Rear Close-off Panel
7
Rocker RH
15
Upper Rear Close-off Panel
8
B-Pillar Cover RH
16
Floor Rear
