WARNING
Upon rear trailing arm installation, test vehicle at low
speeds before putting into service.

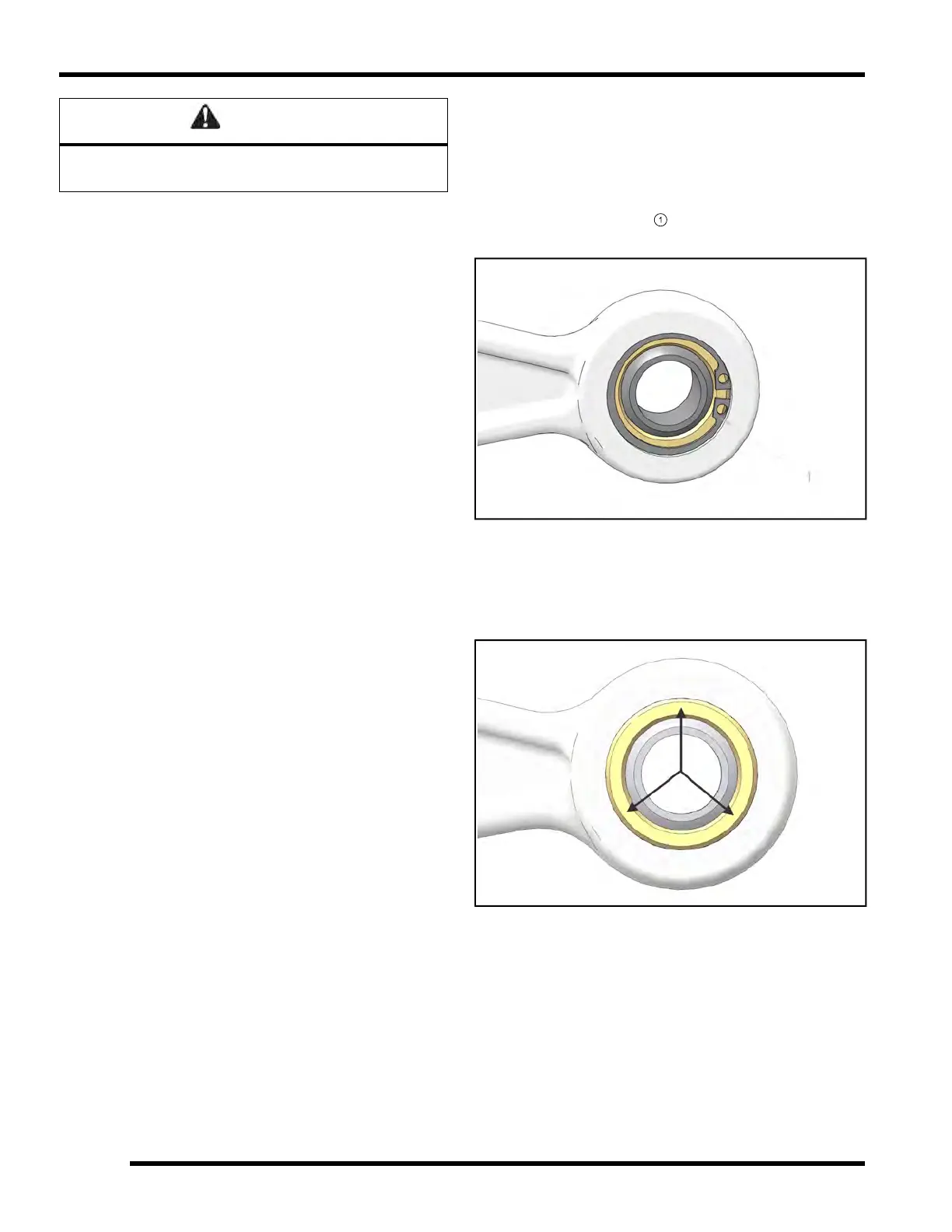

Trailing Arm Spherical Bearing
Replacement
1. Remove trailing arm (see Chapter 8 – Trailing Arm
Removal / Installation, page 8.22).
2. Remove bushings and O-rings.
3. Remove snap ring
that retains the spherical
bearing.
4. Properly support the trailing arm and press the
spherical bearing out of trailing arm casting.
5. Be sure to only press on outer most surface of
bearing race, do not press on the center spherical
bearing.
6. Inspect trailing arm bearing housing for wear or
damage. Replace trailing arm if damaged.
7. Press in new bearing until fully seated into trailing
arm casting.
8. Install new snap ring, O-rings (not required) and
bushings.
STEERING / SUSPENSION
