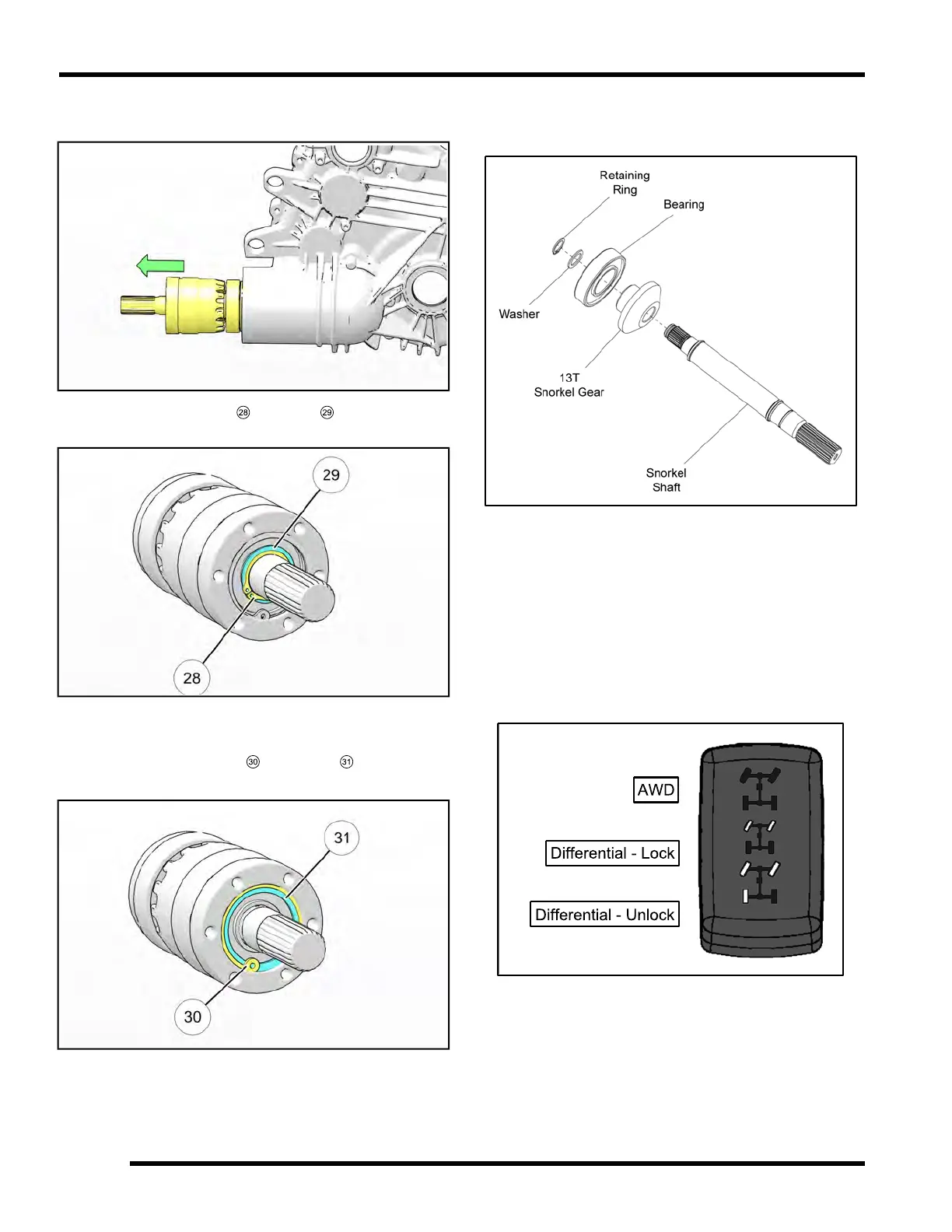

27.Remove the snorkel tube and shaft assembly from
the transmission case.
28.Remove the snap ring
28
and shim
29
from the snorkel
shaft.
29.Use an arbor press to remove the snorkel tube from
the snorkel shaft.
30.Remove the snap ring
30
and shim
31
retaining the
bearing in the snorkel tube.
31.Lightly tap on the bearing from the opposite side to
remove it from the snorkel tube.
32.Remove the retaining ring to remove the remaining
washer, bearing and gear from the snorkel shaft.
Differential Operation (Turf Mode Models
Only)
Transmissions equipped with Turf Mode have two
traction operational modes: Differential Lock and
Differential Unlock. Locking the rear differential is
beneficial in low traction and rough terrain conditions.
Unlocking the rear differential makes maneuvering easier
and minimizes damage to terrain.
When “Differential-Unlock” is selected, the rear
differential becomes unlocked for tighter turns. An
electrical solenoid mounted in the rear portion of the
gearcase actuates the shift fork. The solenoid plunger
extends out to move the fork and slides the engagement
dog away from the side gear that is part of the planetary
differential assembly. This unlocks the rear differential.
