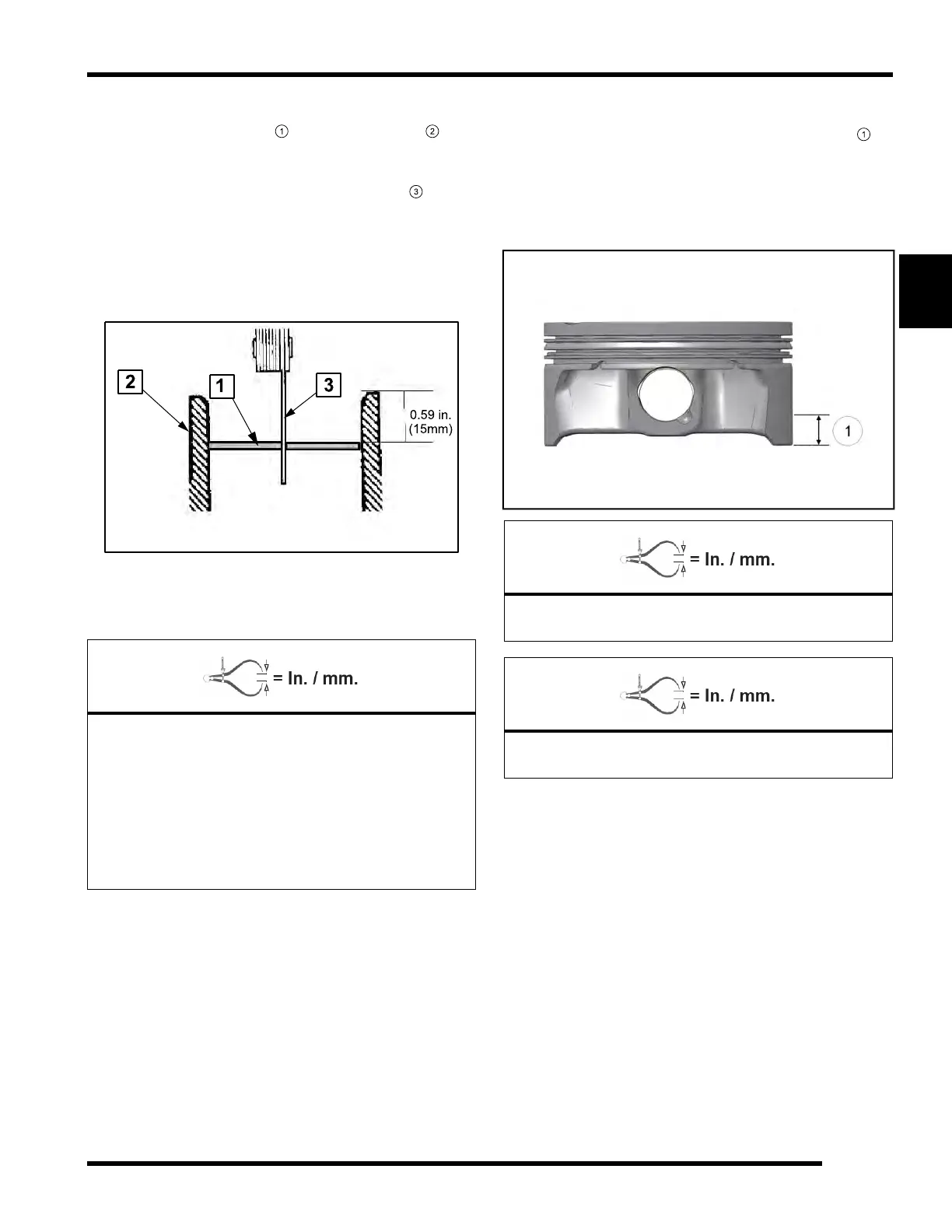

Piston Ring Installed Gap
1. Place each piston ring
inside the cylinder
. Use
the piston to push the ring squarely into cylinder, as
shown below.
2. Measure installed gap with a feeler gauge
at both
the top and bottom of the cylinder.
NOTE: A difference between top and bottom end
gap measurements is a general indication of
cylinder taper (wear). The cylinder should be
measured for taper and out of round.
3. If the installed gap measurement exceeds the
service limit, replace the rings.
Piston Ring Installed Gap:
Top Ring: 0.010 - 0.014" (0.25 - 0.35 mm)
Service Limit: 1.6118 - 1.6122" (40.942 - 40.950 mm)
Second Ring: 1.6118 - 1.6122" (40.942 - 40.950 mm)
Service Limit: 0.028" (0.70 mm)
Oil Control Rails: 0.008 - 0.028" (0.20 - 0.70 mm)
Service Limit: 0.0354" (0.9 mm)
NOTE: Always check piston ring installed gap
when installing new rings and/or a new cylinder.
Piston-to-Cylinder Clearance
Measure piston outside diameter at a point 10 mm
up
from the bottom of the piston, at a right angle to piston
pin bore.
Subtract measurement from maximum measurement
obtained in Step 4 of Cylinder Inspection, page
3.55“Cylinder Inspection” procedure.
Piston O.D. (Standard):
3.6597 ± 0.0003" (92.959 ± 0.008 mm)
Piston to Cylinder Clearance:
0.0009 - 0.0019" (0.025 - 0.050 mm)
