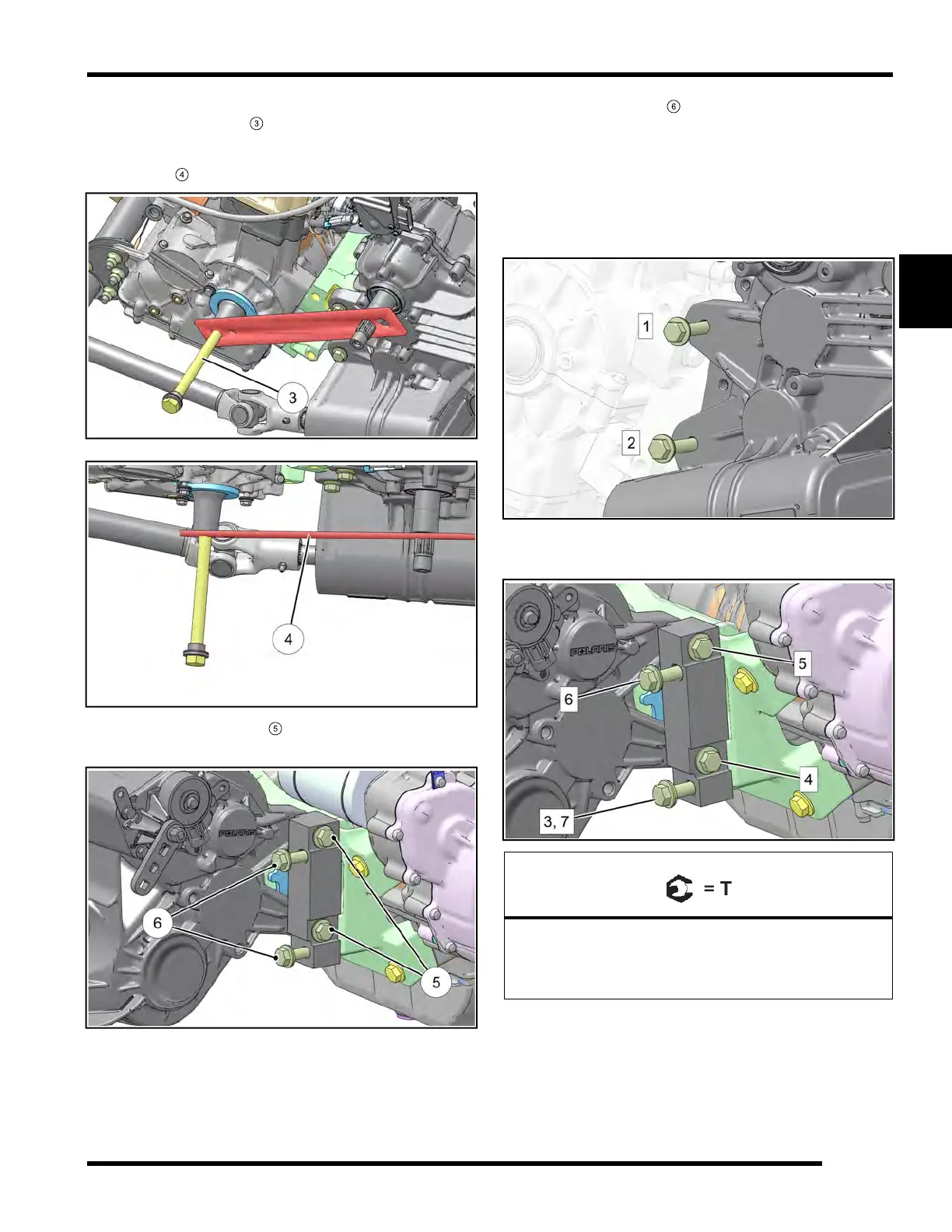

7. Install the Clutch Center Distance Tool (PU-50658)
onto the crankshaft
3
and transmission input shaft to
properly position the clutch center distance. The
pictures below show the tool (PU-50658) properly
installed
4
.
8. Loosen the two bolts
5
retaining transmission joint
bracket to the transmission on the right side.
9. Align the front transmission mounting holes with
transmission joint bracket mounting holes on engine.
10. Install the two bolts
6
retaining the transmission joint
bracket to the engine on the right side. Hand tighten
the bolts so they remain loose at this time.
NOTE: DO NOT torque fasteners at this time.
11. Install the two longer bolts into left side mounting
holes. Torque left side mounting bolts to specification
using the numbered sequence shown.
12. Torque right side mounting bolts to specification
using the numbered sequence shown.
Engine / Transmission Mounting Bolts:
Step 1-2: 64 ft-lb (87 Nm)
Step 3: 5 ft-lb (7 Nm)
Step 4-7: 44 ft-lb (60 Nm)
13. Remove the clutch center distance tool.
