3.80

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

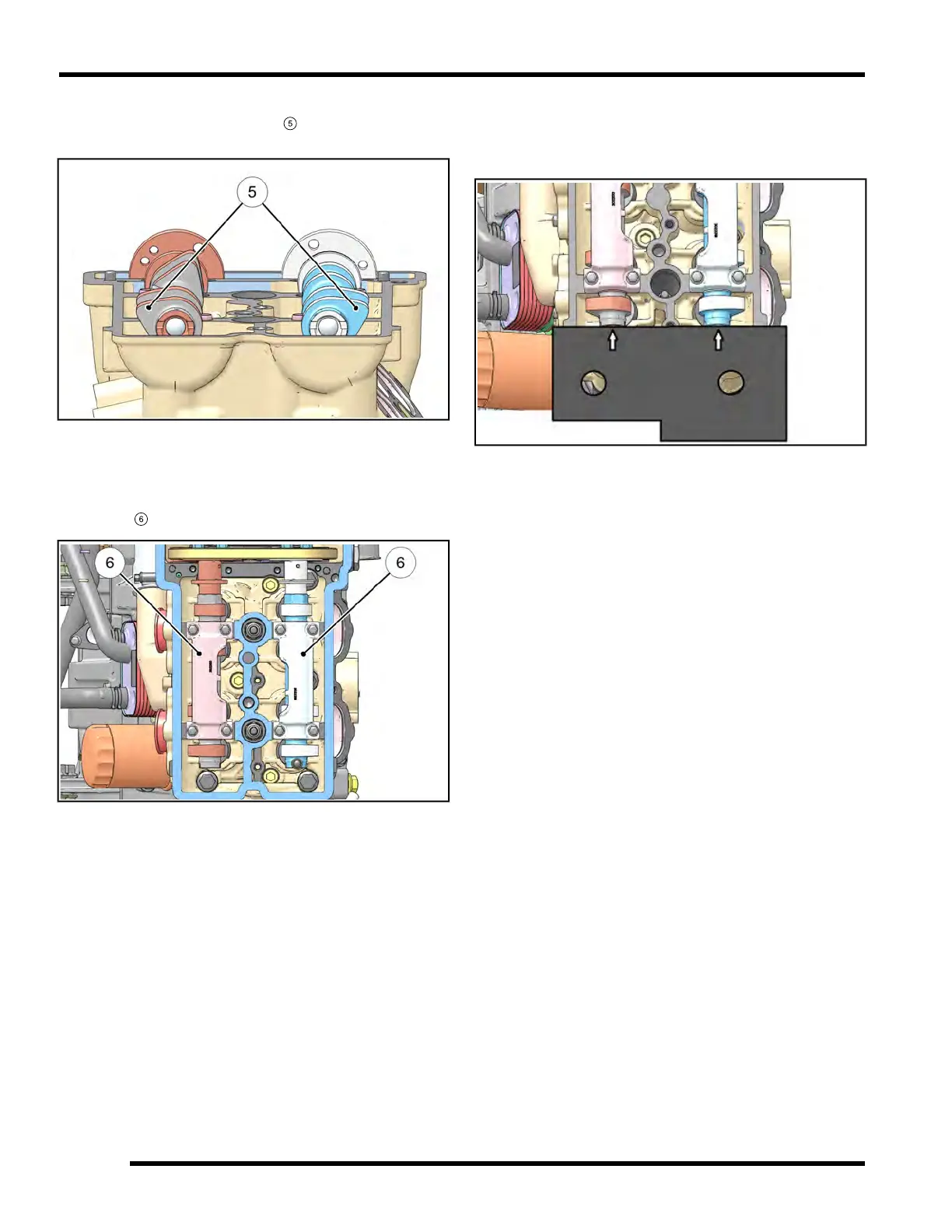

4. Carefully install the camshafts into the cylinder head.

The PTO camshaft lobes

should face out as

shown.

5. Carefully install the rear camshaft carriers onto the

camshafts. Carrier openings should face each other

when installed properly.

6. Install the four bolts that retain each rear camshaft

carrier

and tighten the bolts evenly until snug.

7. Install the Cylinder Holding & Camshaft Timing Plate

(PU-50563) into the end of camshafts as shown. Use

a 13/16” open-end wrench to rotate camshafts

slightly if needed.

8. Verify the TDC mark on the flywheel is still properly

aligned (see Step 1).

9. Pull cam chain upward, making sure it is engaged

with the drive sprocket on the crankshaft.

10. While lifting the cam chain up, engage the cam

sprockets into the chain with the “I” and “E” marks

facing out.

11. Install the sprockets onto the camshafts and align

the sprocket marks with the valve cover gasket

surface (see Chapter 3 – Camshaft Timing - Quick

Reference, page 3.83).

NOTE: Intake cam sprocket should have “I”

marks aligned with gasket surface and the

exhaust cam sprocket should have “E” marks

aligned with gasket surface.

Install the exhaust cam sprocket first (opposite

the cam chain tensioner) to ensure proper cam

timing.

ENGINE / COOLING SYSTEM
