4
4.15
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

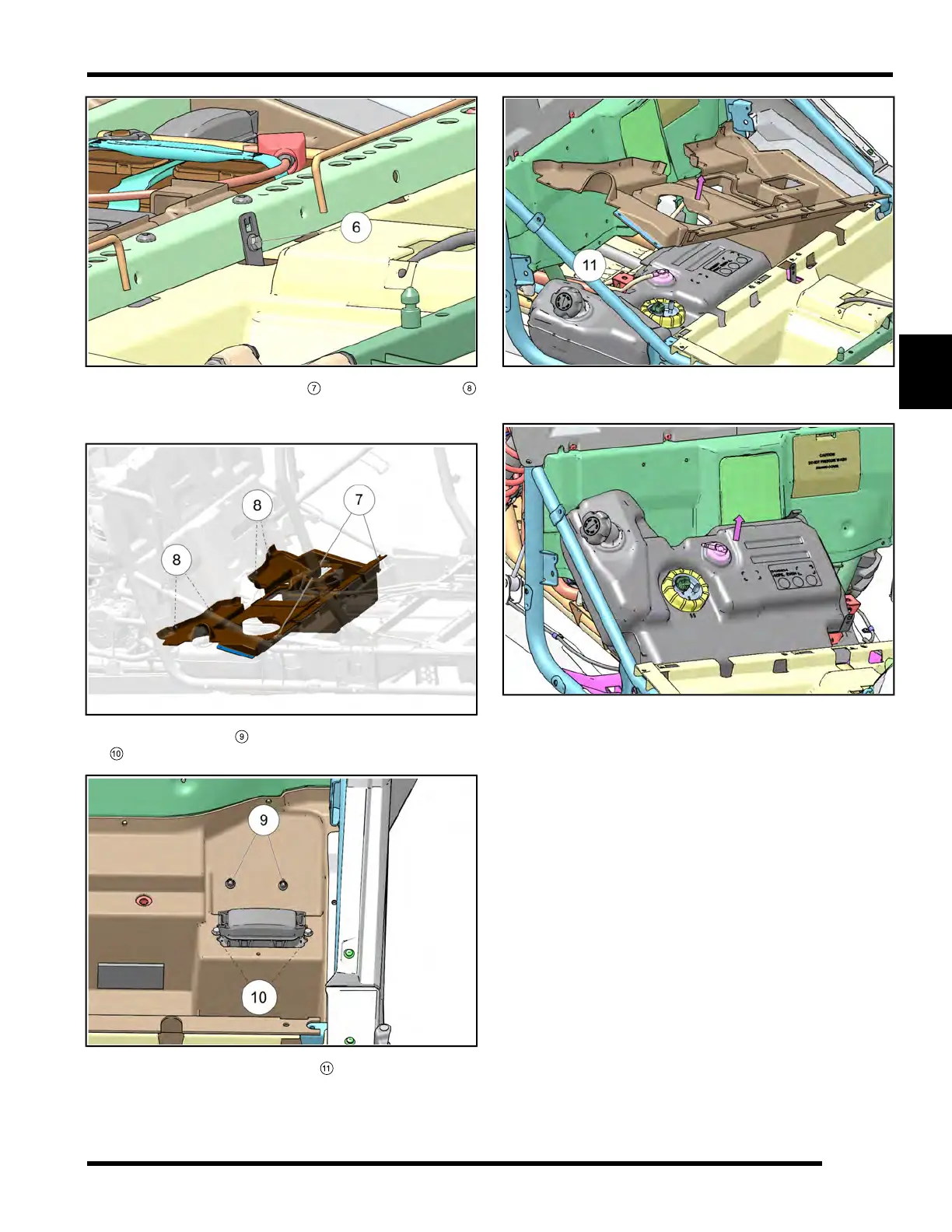

10.Remove the Torx screws
7
and push rivets
8
retaining the lower rear close-off panel using a T40
Torx driver. Remove the panel from the vehicle.
11. Remove the nuts
9
retaining the regulator and bolts
10
retaining the fuse box.
12.Remove the fuel tank vent line
11
from the tank fitting.
13.Lift the rear of the fuel tank up first. Carefully pull the
fuel tank out of the vehicle.
FUEL SYSTEM
