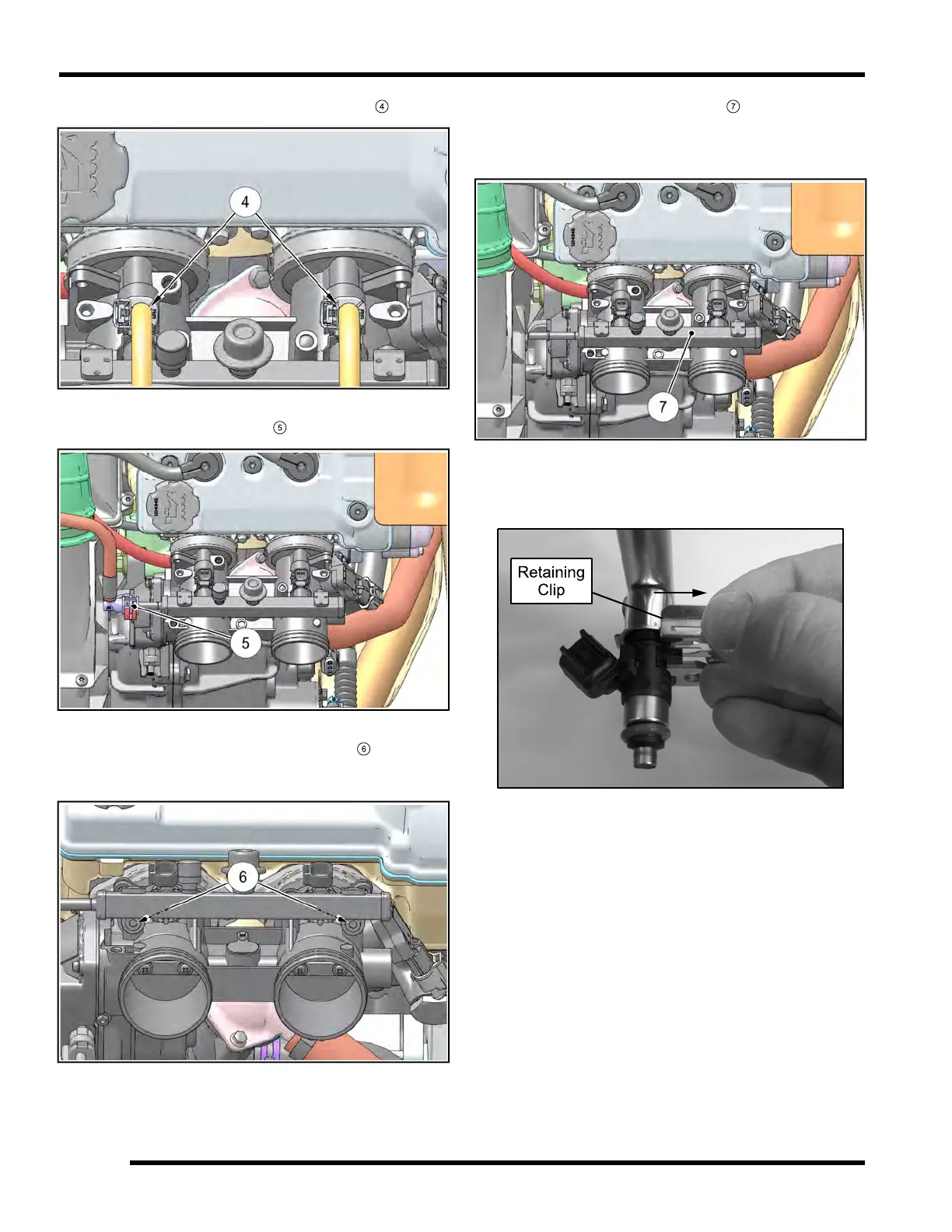

6. Disconnect the fuel injector harness leads
4
.
7. Hold a shop towel over the fuel line fitting and
remove the fuel supply line
5
from the fuel rail.
8. Remove tie strap retaining the injector harness leads
to the fuel rail. Remove the two screws
6
that mount
the fuel rail to the throttle body using a 5 mm Allen
wrench.
9. Carefully pull up on the fuel rail
7
and injectors and
remove them from the throttle body as an assembly.
Take care not to damage the fuel injector ends
during removal.
10. Pull out on the fuel injector retaining clip and pull the
injector out of the fuel rail. Repeat on the other
injector if removal is necessary.
11. Upon installation of the new fuel injectors, lightly
lubricate the injector O-rings to aid installation.
FUEL SYSTEM
