9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

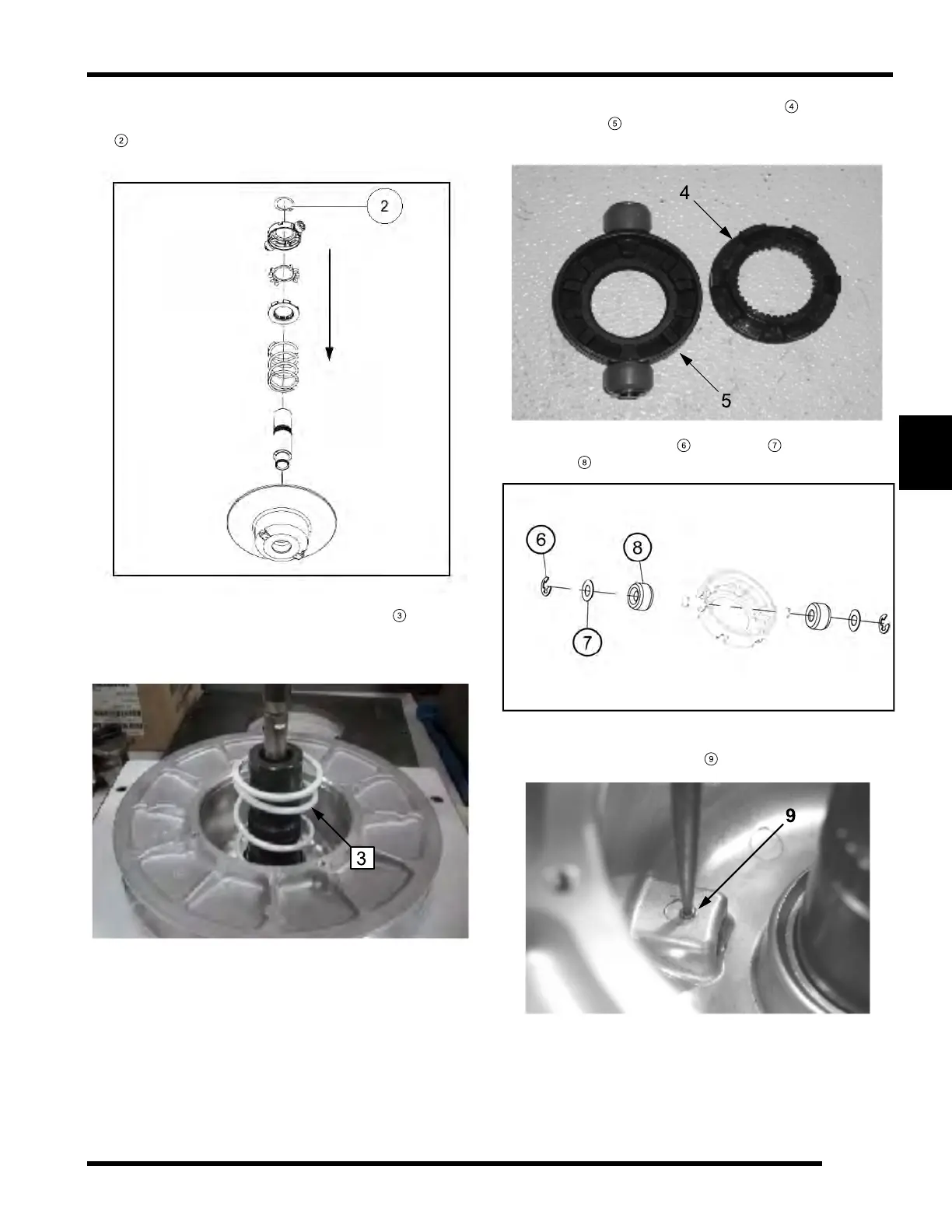

5. Press down on the top of the spider assembly,
pushing the spider onto the shaft. Remove snap ring
2
and slowly release the assembly.
6. Remove the spider assembly and spring
3
.
NOTE: Spring is compression only and has no
torsional wind.
7. Remove the inside spider plate
4
and spider
dampener
5
. Inspect the spider dampener for wear
and replace if needed.
8. Remove the E-clips
6
, washers
7
, and the clutch
rollers
8
. Inspect the rollers for wear; replace if worn.
9. Remove the clutch assembly from the holding tool.
10. Press out the spring pins
9
in the inner sheave.
PVT SYSTEM
