6.49

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

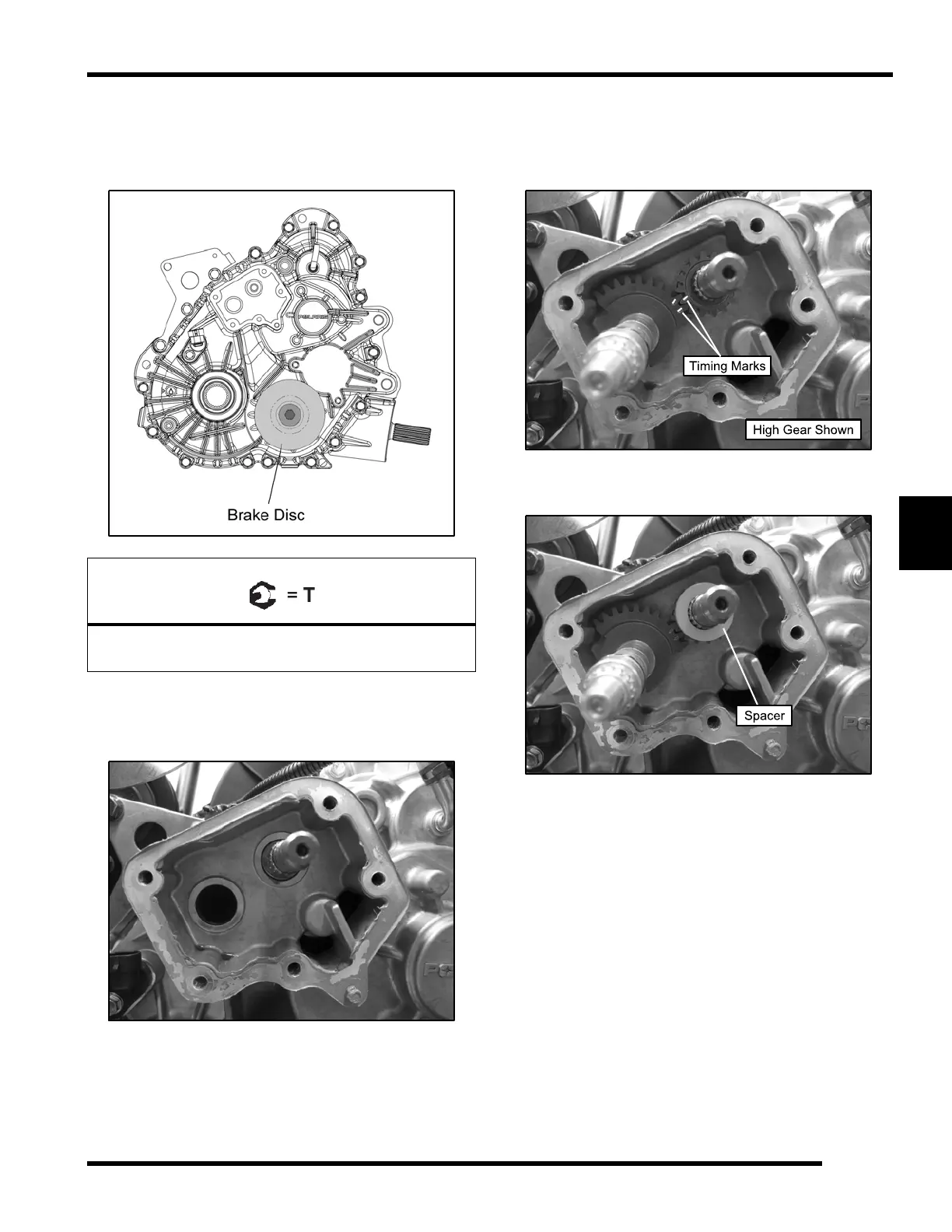

31. Install the brake disc onto the pinion shaft. Install the

washer and apply Loctite

262

™

or 2760

™

to the

mounting bolt threads. Torque the bolt to

specification.

Park Brake Disc Mounting Bolt:

14 ft-lb (20 Nm)

32. Thoroughly clean the shift shaft housing. Be sure

the transmission is in High gear prior to

reassembly.

33. Install the sector gear (16T) onto the shift drum shaft.

Install the shift shaft assembly and sector gear (11T)

into the bushing pocket on the left side. Align the

timing marks on the gears as shown.

34. Install the spacer onto the shift drum shaft.

35. Install the detent star onto the shift drum shaft. Be

sure to install the detent star with the raised edge

facing outward and skip-tooth aligned.

TRANSMISSION
