9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.
4. Install the lower shock mounting bolt and new nut.
Torque fastener to specification.
Lower Shock Bolt to Trailing Arm:
70 ft-lbs (95 Nm)
5. Install the stabilizer bar mounting bolt, washer and
new nut. Torque fastener to specification.
Stabilizer Bar Linkage:
40 ft-lbs (54 Nm)
6. Apply Anti-Seize to drive shaft axle splines.

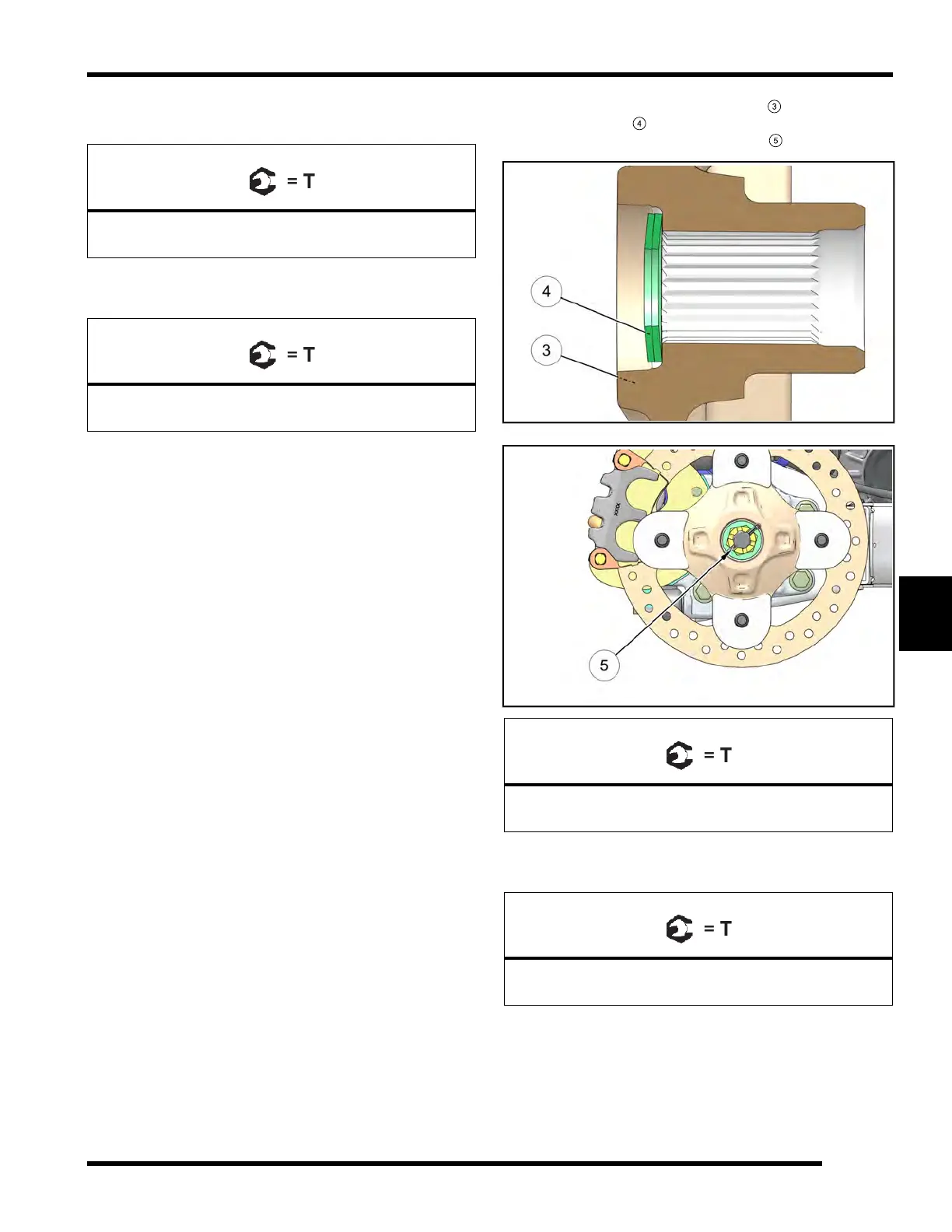

7. Install rear wheel hub assembly
3
. Install the two
cone washers
4
and castle nut. Torque castle nut to
specification. Install new cotter pin
5
.
Rear Hub Castle Nut:
110 ft-lbs (149 Nm)
8. Install the radius rod bolts, washers and new nuts.
Torque fasteners to specification.
Radius Rods to Bearing Carrier:
40 ft-lb (54 Nm)
FINAL DRIVE
