FRONT GEARCASE / CENTRALIZED HILLIARD

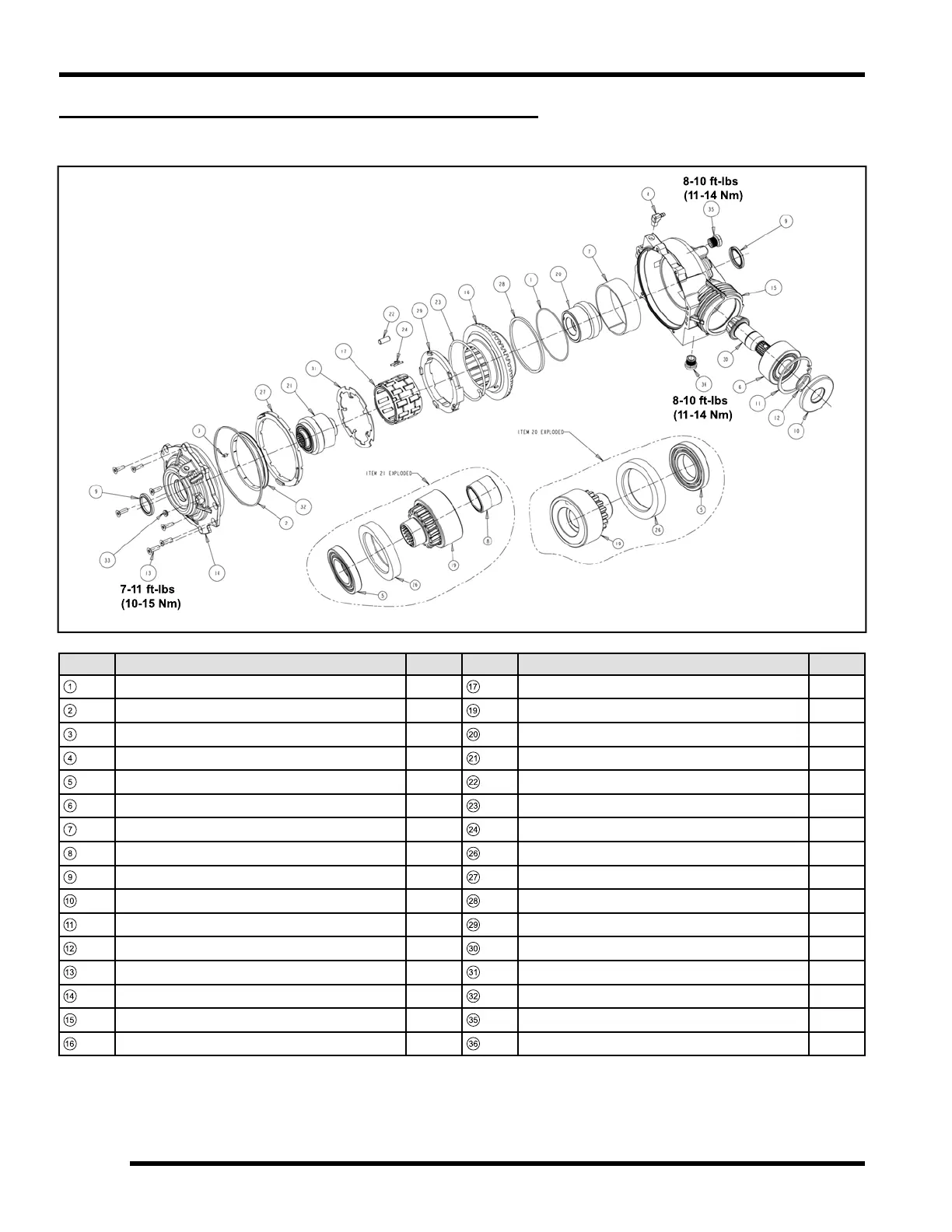

Centralized Hilliard Assembly View
REF# DESCRIPTION
QTY
REF# DESCRIPTION
QTY
1
O-Ring
1
17
Roll Cage
1
2
O-Ring
1
19
Hub / Race Assembly
2
3
Dowel Pin 1
20
Hub Sub-Assembly (Female)
1
4
Vent Hose Fitting
1
21
Hub Sub-Assembly (Male)
1
5
Ball Bearing
2
22
Rollers 20
6
Ball Bearing (Double Row)
1
23
Torsion Spring
1
7
Bushing
1
24
H-Clip Spring
20
8
Bushing
1
26
Nylon Spacer
2
9
Oil Seal 2
27
Backlash Spacer
1
10
Oil Seal 1
28
Ring Gear Spacer
1
11
Retaining Ring, Internal
1
29
Torsion Spring Retainer
1
12
Retaining Ring
1
30
Pinion Gear 1
13
Cover Screws, M6 (T30 Torx)
7
31
Armature Plate 1
14
Cover Plate Assembly
1
32
AWD Coil 1
15
Gearcase Housing
1
35
Fill Plug
1
16
Clutch Housing (Ring Gear)
1
36
Drain Plug, Magnetic
1
