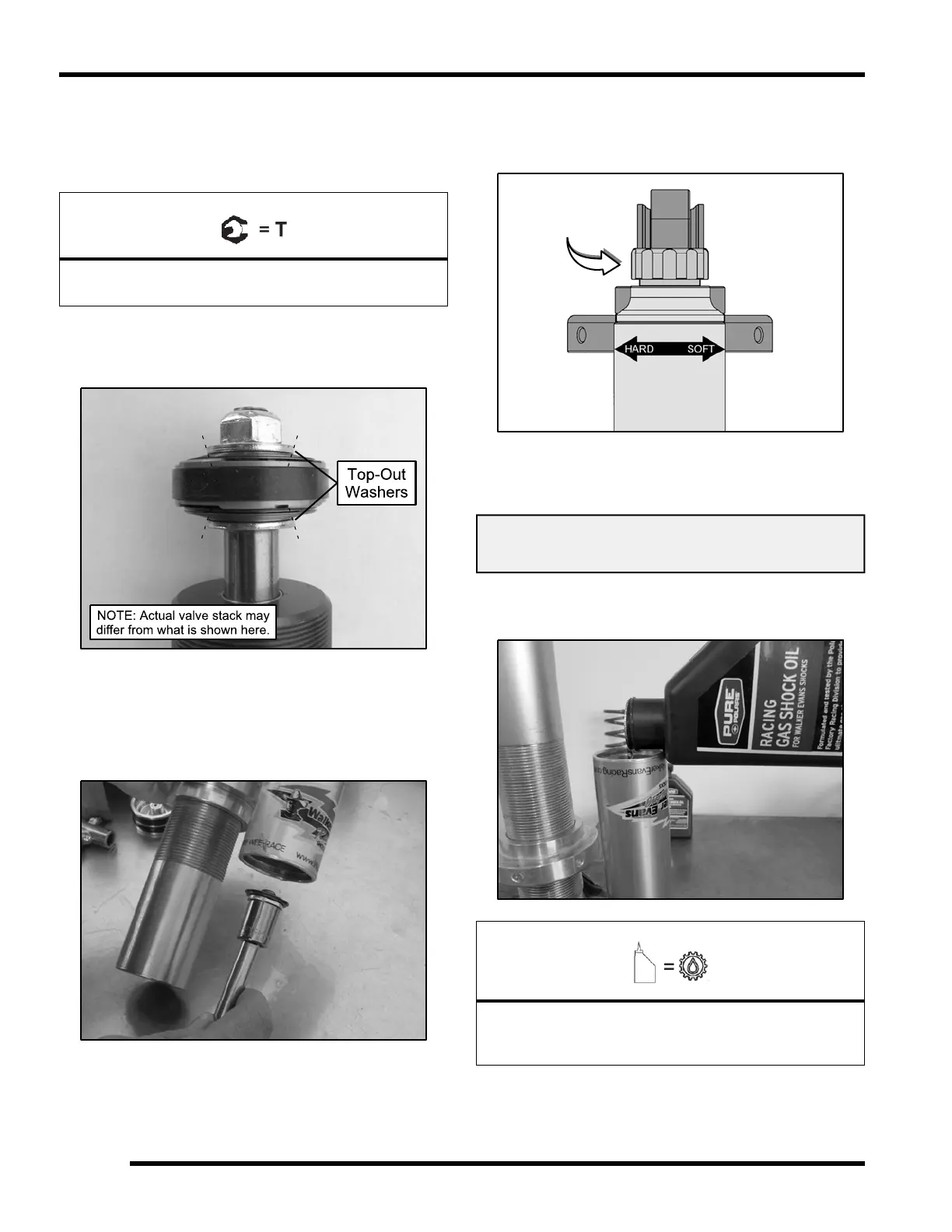

8. Place a new lock nut onto the shock rod. Torque the
new lock nut to specification.
NOTE: Do not over torque the nut or damage to
the valve stack can occur.
Lock Nut:
14 ft-lbs (19 Nm)
NOTE: Make sure “Top-Out” washers are
orientated as shown.
9. Front Shocks Only: Assemble the clicker valve
stack on top of the fastener and install the assembly
into the reservoir body. Tighten the valve stack
fastener securely.
10. Turn the compression adjuster knob counter-
clockwise (soft) until it stops, so damping is in the full
open position.
11. Use the appropriate shock body holding tool to
properly secure the shock assembly into a vice for
service.
Front Shock Body Holding Tool: PU-50979
Rear Shock Body Holding Tool: PU-50938
12. Fill the shock body and remote reservoir 1/2 full of
the recommended gas shock oil.
Recommended Shock Oil:
Racing Gas Shock Oil (PN 2874124) (Quart)
10 Weight for Walker Evans Shocks
