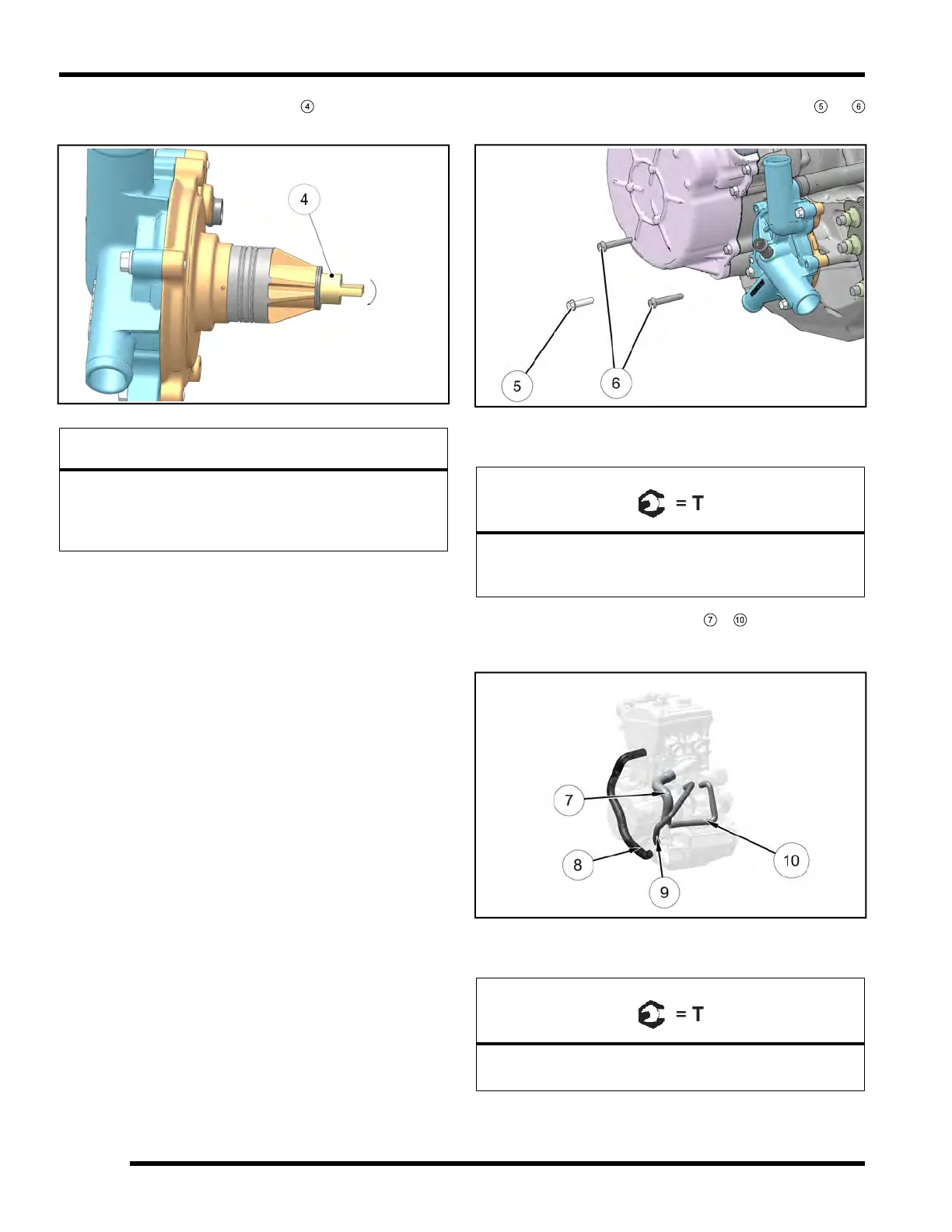

6. Rotate water pump drive tab

so it matches the

angle of the drive slot in the engine.

CAUTION

The water pump drive tab and slot must be aligned

properly during installation. Severe engine or water

pump damage will occur if the tab and slot are not in

alignment during water pump installation.

7. Maneuver water pump up through the access hole in

the skid plate on the RH side of the vehicle.

8. Slide water pump into engine crankcase.

9. Be sure water pump is fully seated and the drive tab

and slot are properly engaged.

10. Install the three water pump mounting bolts

and torque to specification.

NOTE: Install different bolt lengths as shown.

Water Pump Mounting Bolts:

7 ft-lb (10 Nm)

(Apply Loctite® 204™ to bolt threads)

11. Install the four coolant hoses

–

that attach to the

water pump. Be sure orientation and routing are

correct.

12. Install the right rear lower shock bolt and new nut.

Torque mounting bolt to specification.

Rear Shock Mounting Bolt:

70 ft-lbs (95 Nm)
