PLX51-PBM Diagnostics
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 176 of 196
Statistics
The Statistics tab (for both PLX51-PBM Master and Slave modes) displays the
following general parameters:

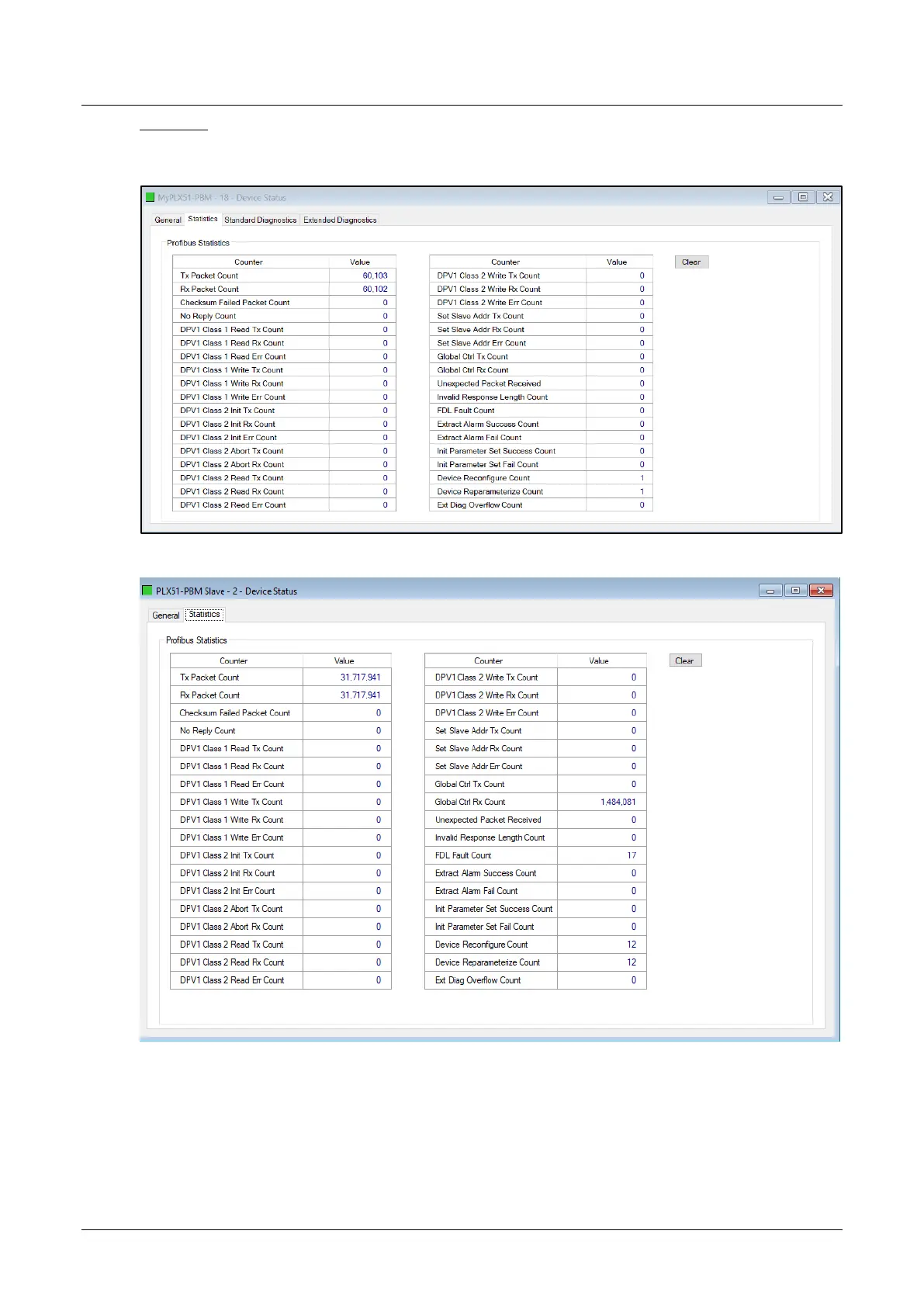

Figure 8.25 – Device Status monitoring (PLX51-PBM Master mode) - Statistics
Figure 8.26 – Device Status monitoring (PLX51-PBM Slave mode) – Statistics
