Power Unit
1 2
29) Installing Throttle Link
LIT

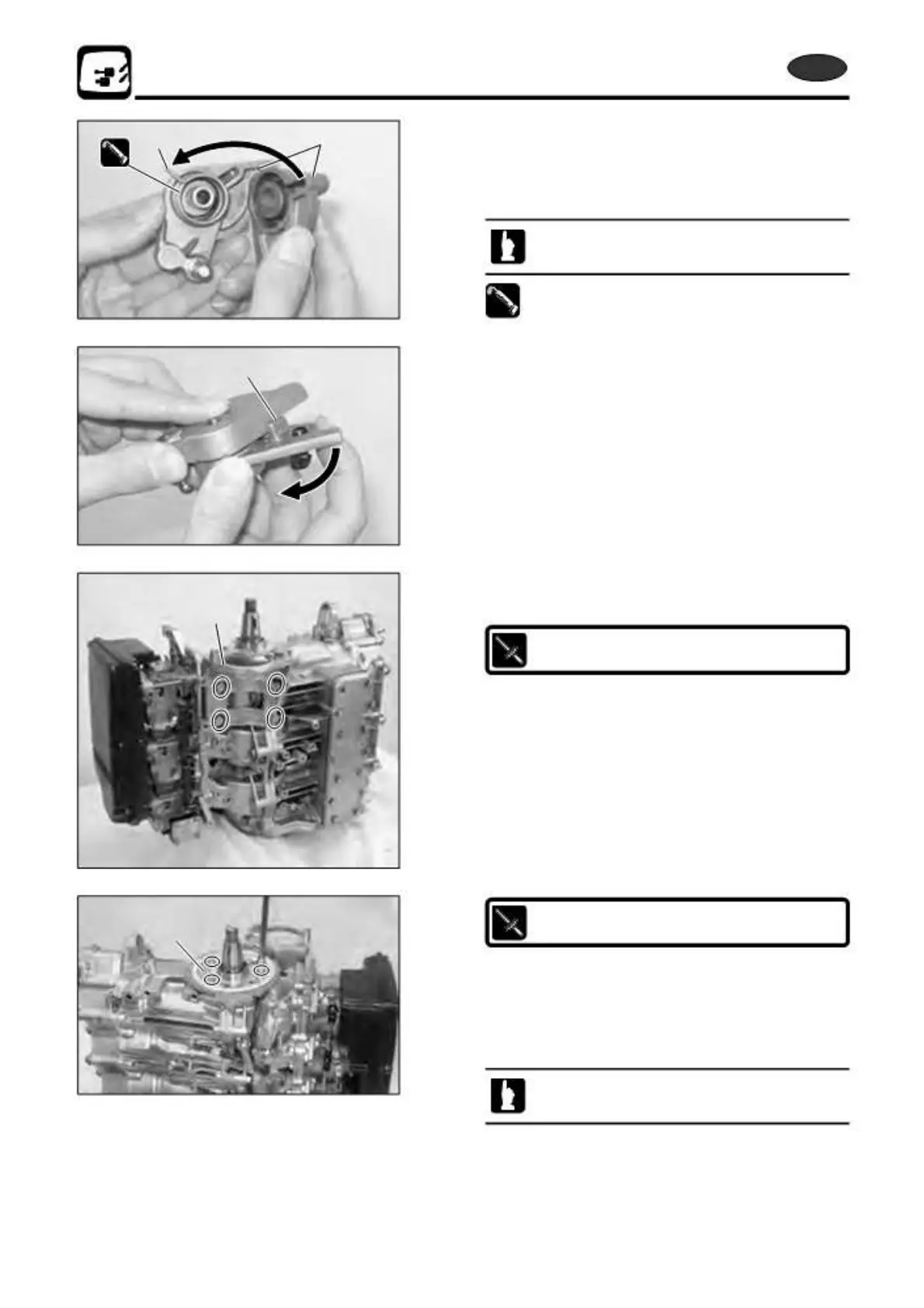

1. Assembling advancer lever.
LIT
Align spring 1 and slot of the advancer lever 2, and
turnover the stopper a to install as shown.
Apply grease to advancer lever spring and collar.
LIT
LIT
a
2.
3
3.
4
4.
5-90
Attach starter motor bracket 3, and tighten the nut to
specified torque.
Starter Motor Bracket Bolts :
12 N · m (9 lb · ft) [1.2 kgf · m]
Attach coil plate bracket 4 to cylinder ass’y and secure
them with bolts.
Coil Bracket Bolts :
6 N · m (4 lb · ft) [0.6 kgf · m]
As for the installation of the following part, refer to the step of
their removal.
• Advancer arm
• Throttle link rod
Apply grease to collar of advancer arm.
2st X50D2 2011
