Raider 50 - Recoil Starter

Power Unit
GB

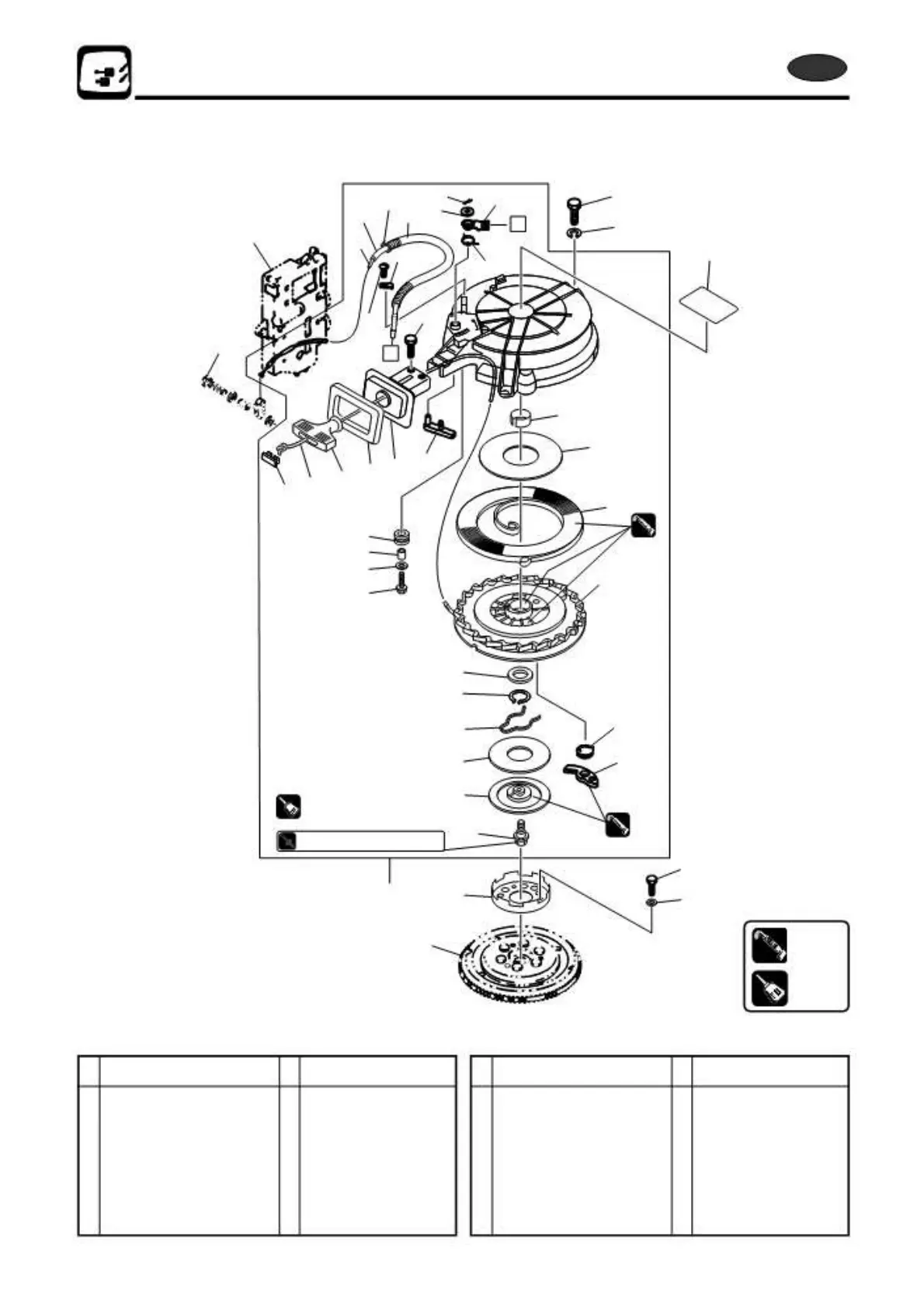

Recoil Starter P/L Fig. 7
LIT
LIT
1342
1342
LIT
LIT
LIT
LIT
1342
1 342
Ref.
No.
Description Q'ty Remarks
Ref.
Description Q'ty Remarks
No.
1 Recoil Starter Ass'y 1 11 Sliding Plate 1
2 Reel Ass'y 1 12 C-Ring 1
3 Ratchet 1 13 Bolt 3
4 Starter Spring 1 14 Starter Rope ø6-2250 1
5 Friction Spring 1 15 Starter Handle 1
6 Return Spring 1 16 Rope Anchor 1
7 Friction Plate 1 17 Rope Guide 1
8 Bushing 1 18 Starter Lock 1
9 Washer 1 19 Starter Lock Cam 1
10 Sliding Plate 1 20 Starter Lock Spring 1
