Bracket
GB

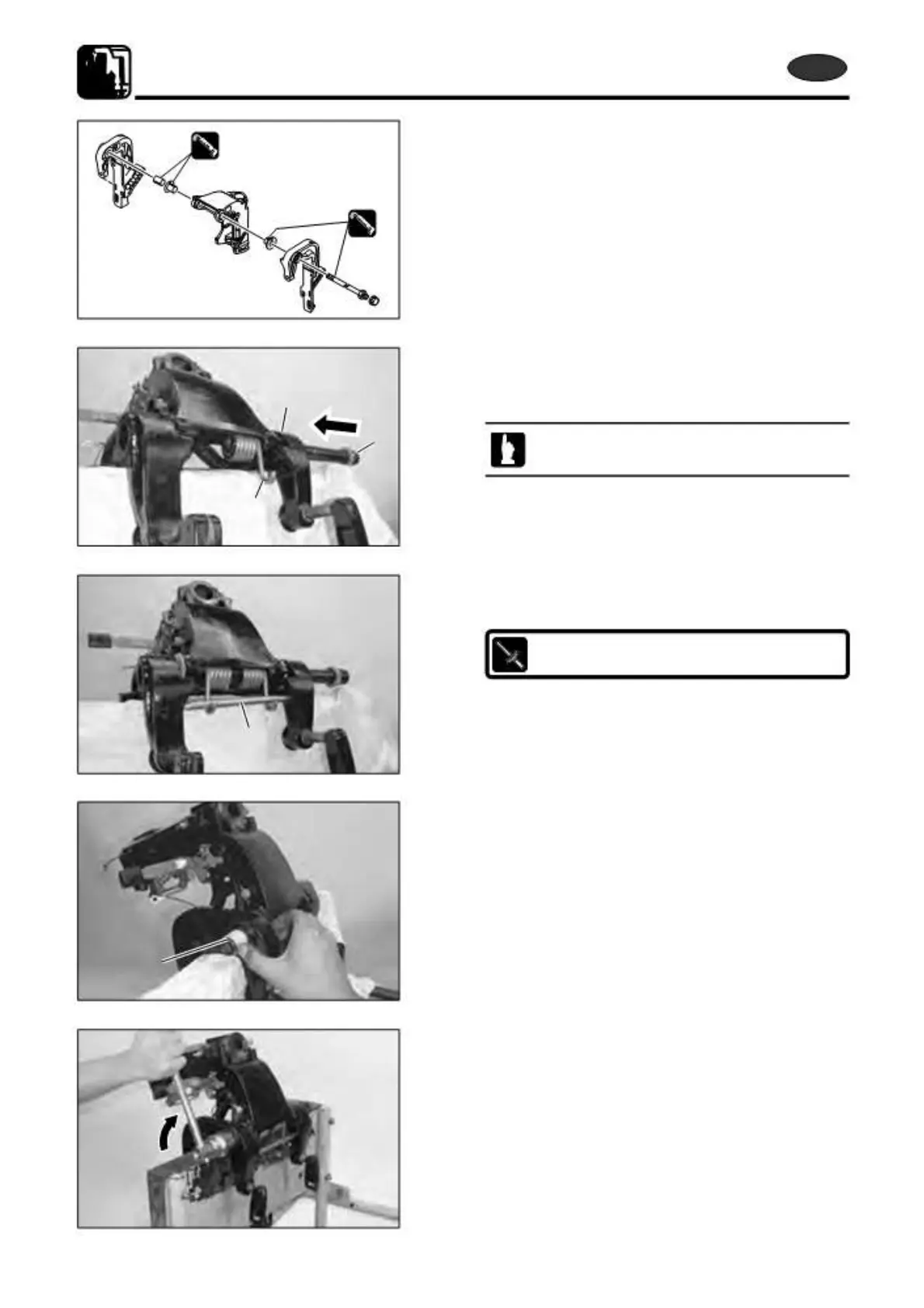

14) Assembling Clamp Bracket
OBM
OBM
OBM
OBM
1.
Apply grease to swivel bracket, swivel bracket shaft,
bushing.
2. Put bushing to swivel bracket, and then, insert swivel
bracket shaft 1 into clamp bracket 2 and tilt assistant
2
spring 3.
1
Set the tilt stop lever to “Release” position, then
install swivel bracket shaft and assistant spring.
*Tilt assistant spring 3 is discontinuing products for after January in 2012.
3
3.
Install tilt assistant shaft 4 and bushing 5. And then,
tighten nylon nut to the specified torque.
Nylon Nut 5 :
25 N · m (18 lb · ft) [2.5 kgf · m]
4
5
7-48
2st X50D2 2011
To Next Page
