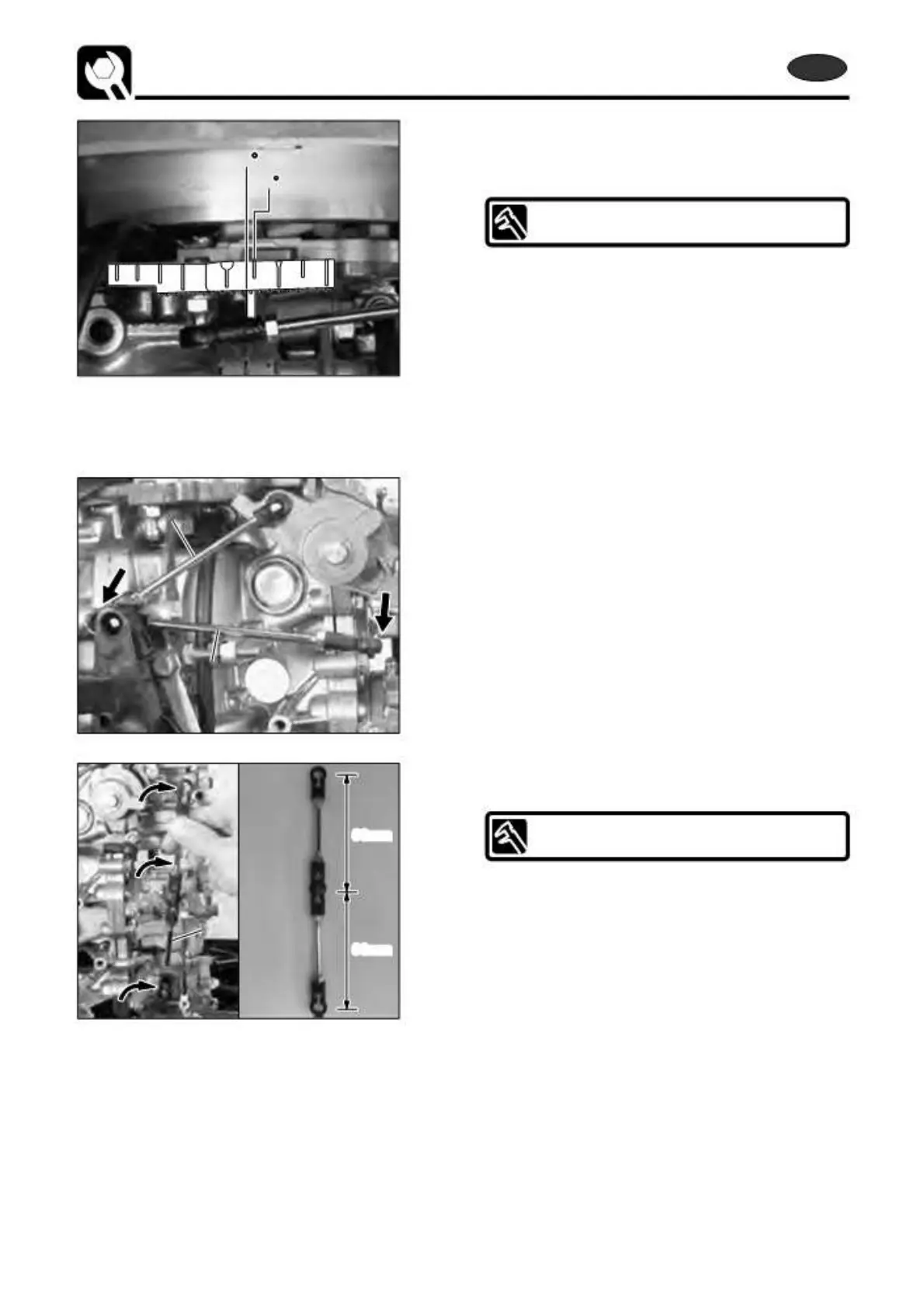

Place advancer arm in the minimum speed position
(throttle fully closed) and adjust low, speed side stopper so
ignition timing matches the following specifications.
Ignition Timing-Throttle closed : ATDC 3°
11) Carburetor Synchronization
1. Remove the intake silencer cover.
2.
Disconnect ignition timing link 1 and throttle link 2 so
throttle lever roller dose not make contact with throttle
cam.
2
3. Adjust the length of each carburetor throttle link rod 3 to
following specification.
Link Length : 90 mm (3.54 in)
3
4. Reconnect timing link.
