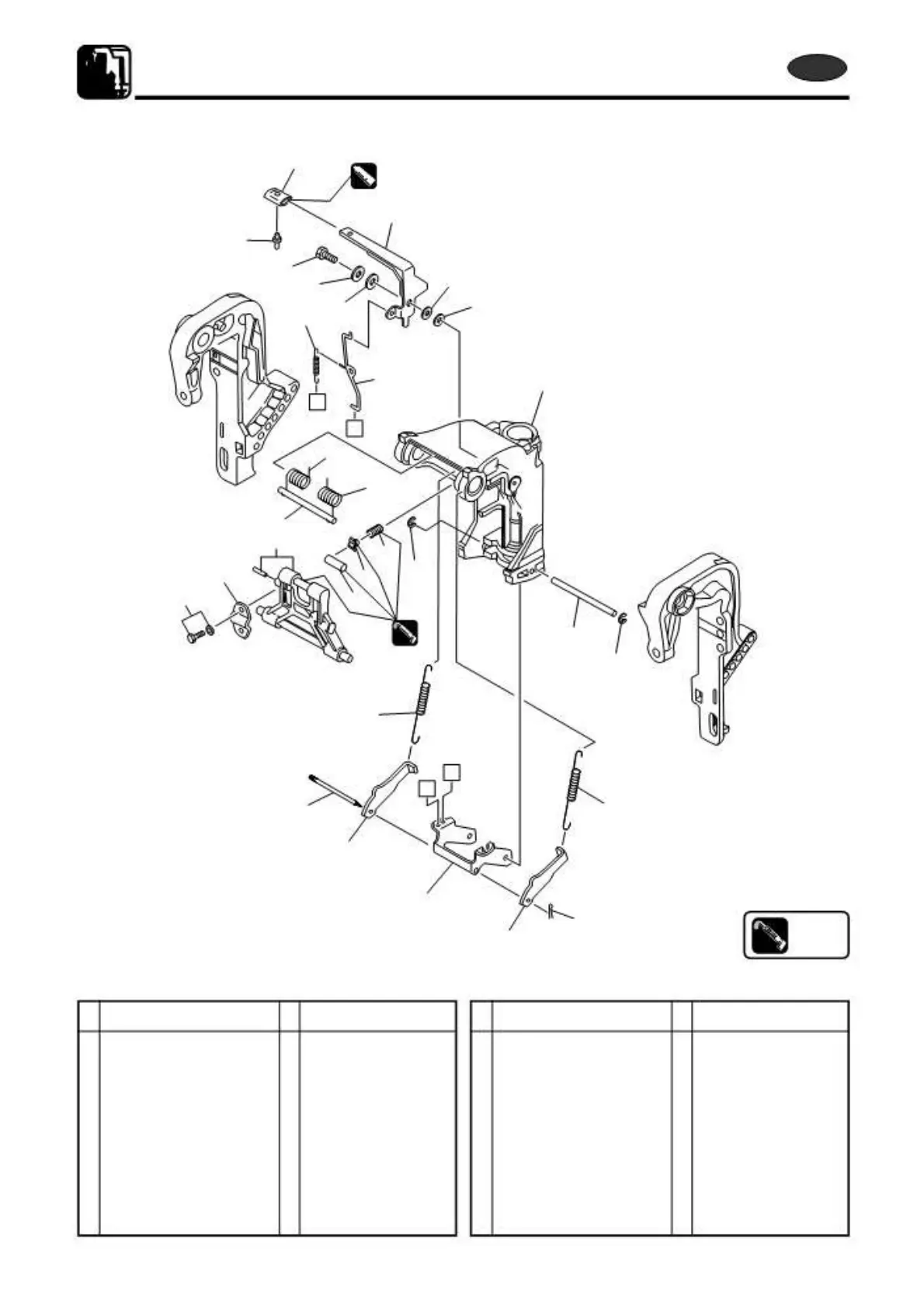

Bracket
GB
Manual Tilt
P/L Fig. 18
G17
G17
OBM
OBM
OBM
OBM
Ref.
No.
Description Q'ty Remarks
Ref.
Description Q'ty Remarks
No.
1 Tilt Stopper Ass'y 1 15 Reverse Lock Rod 1
2 Bushing 10.2-12-29.5 1 16 Split Pin 2-12 1
3 Setting Plate 1 17 Tilt Stopper Lever 1
4 Bolt 2 18 Reverse Lock Spring (L) 2 for Transom “L”, “UL”
5 Friction Spring 1 19 Reverse Lock Spring (S) 2 for Transom “S”
6 Setting Piece 1 20 Shoulder Bolt 6-8 1
7 Tilt Assistant Spring (R) 1 MX50D2 for Transom “UL” 21 Washer 6-16-1.5 1
8 Tilt Assistant Spring (L) 1 MX50D2 for Transom “UL” 22 Washer 1
9 Tilt Assistant Shaft 1 MX50D2 for Transom “UL” 23 Bushing 8.1-20 1
10 Reverse Lock (L) 1 24 Washer 8.5-18-1.6 1
11 Reverse Lock (R) 1 25 Link 1
12 Reverse Lock Arm 1 26 Spring 1
13 Reverse Lock Shaft 1 27 Reverse Lock Lever Grip 1
14 E-Ring d=6 2 28 Stopper 1
*7 and 8 are discontinuing products for after January in 2012.
7-8
2st X50D2 2011
To Next Page
