Raider 50 - Disassembly of Water Pump Case (Lower); Assembly of Water Pump Case (Lower)

Lower Unit
RO

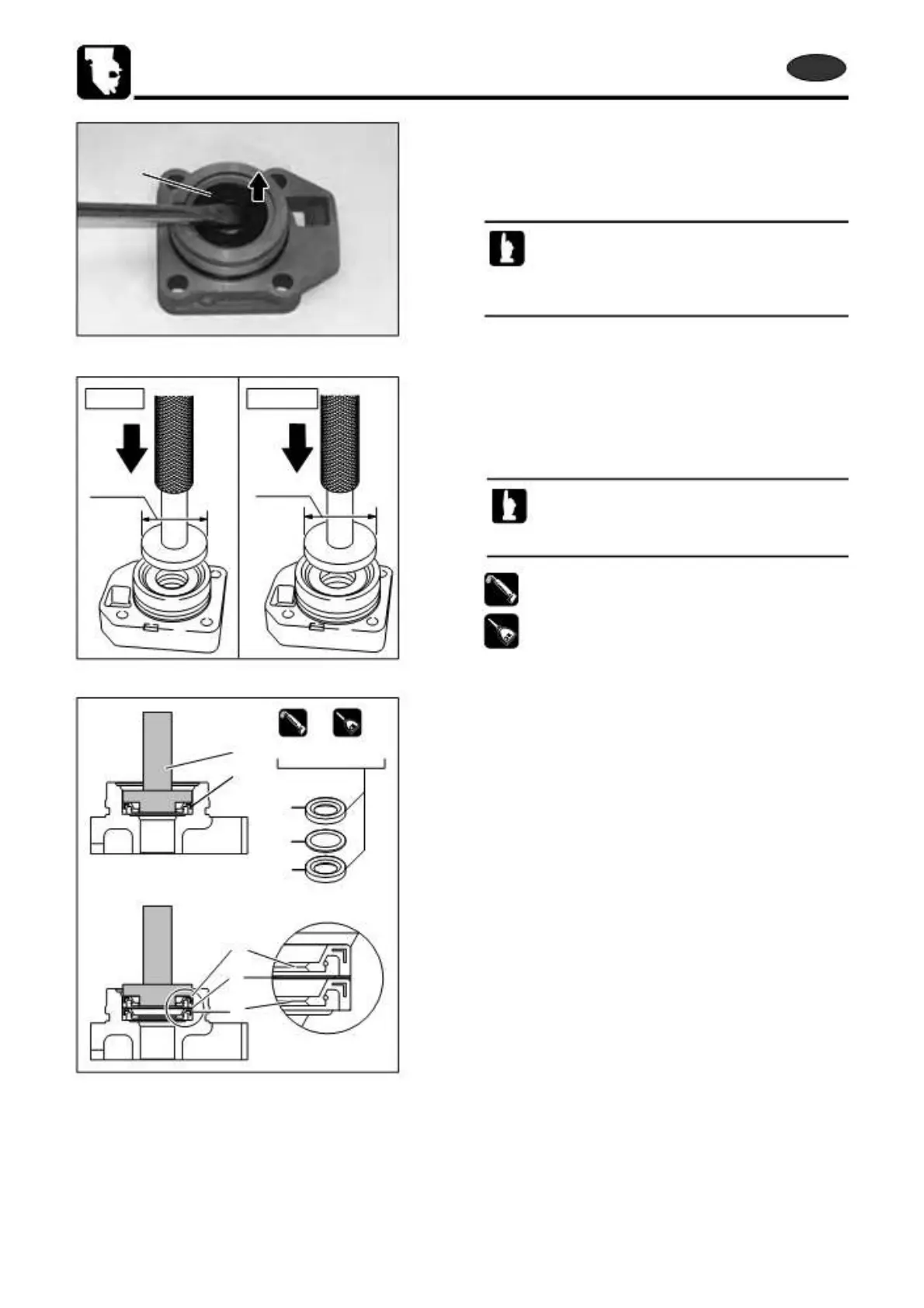

10) Disassembly of Water Pump Case
(Lower)
1
1. Use bladed screw driver or seal remover to remove oil
seal 1.
· Two oil seals are used. Note that there is a shim in
between oil seals.
· Be careful not to give flaw to oil seal press fit
face.
11) Assembly of Water Pump Case
(Lower)
1. Install oil seal 1 and shim 2 by using suitable press 3
and then press-fit perpendicularly.
· Apply gear oil to oil seal circumference before
installing oil seal.
· Apply OBM grease to oil seal lip.
OBM
OBM
GEAR
GEAR
OBM
OBM
3
1 A
1
2
1
1
2
1
GEAR
GEAR
6-34
2st 50D2 2011
