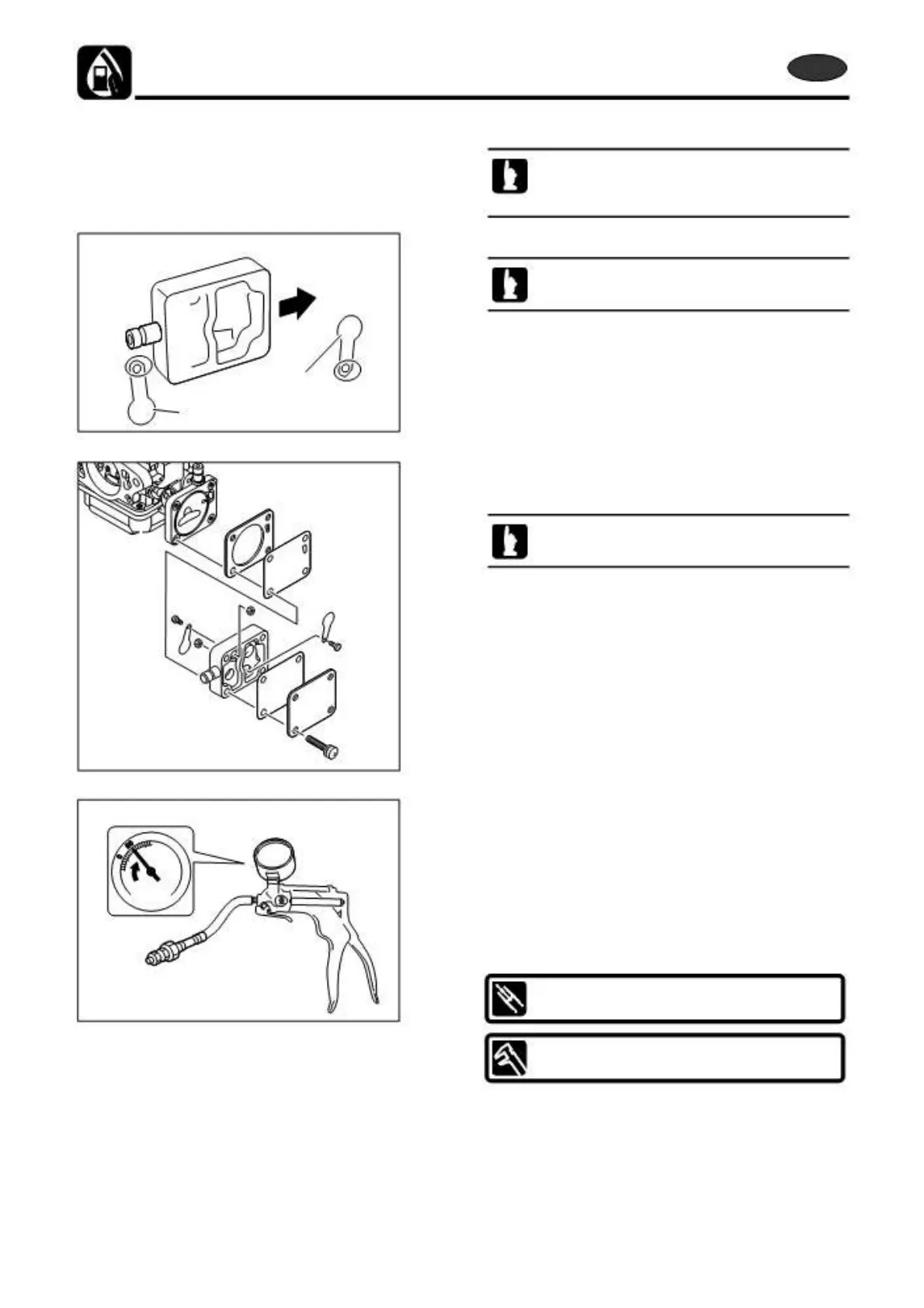

6) Assembly of Fuel Pump
To achieve higher tightness of gasket, wet
interior of fuel pump with small amount of
gasoline.
1.
a
1
1
Attach check valves 1 as shown illustration.
Locate cutaway part of check valve toward a.
2. Attach new gasket and assemble fuel pump body using
screws (4).
After assembling, check for air leak again.
7) Inspection of Fuel Connector
1. Check fuel connector for crack and damage.
2. Connect vacuum/pressure gauge to outlet of fuel connector.
3. Apply specified pressure, and check if the pressure is
maintained for 10 seconds. Replace if necessary.
Vacuum Pressure Gauge
P/N. 3AC-99020-1
Specified Pressure :
0.029 MPa (4 psi) [0.3 kgf/cm
2
]
8) Inspection of Fuel Filter
<Refer to inspection items of Chapter 3.>
