Raider 50 - Removing Intake Silencer and Carburetors

Power Unit
GB

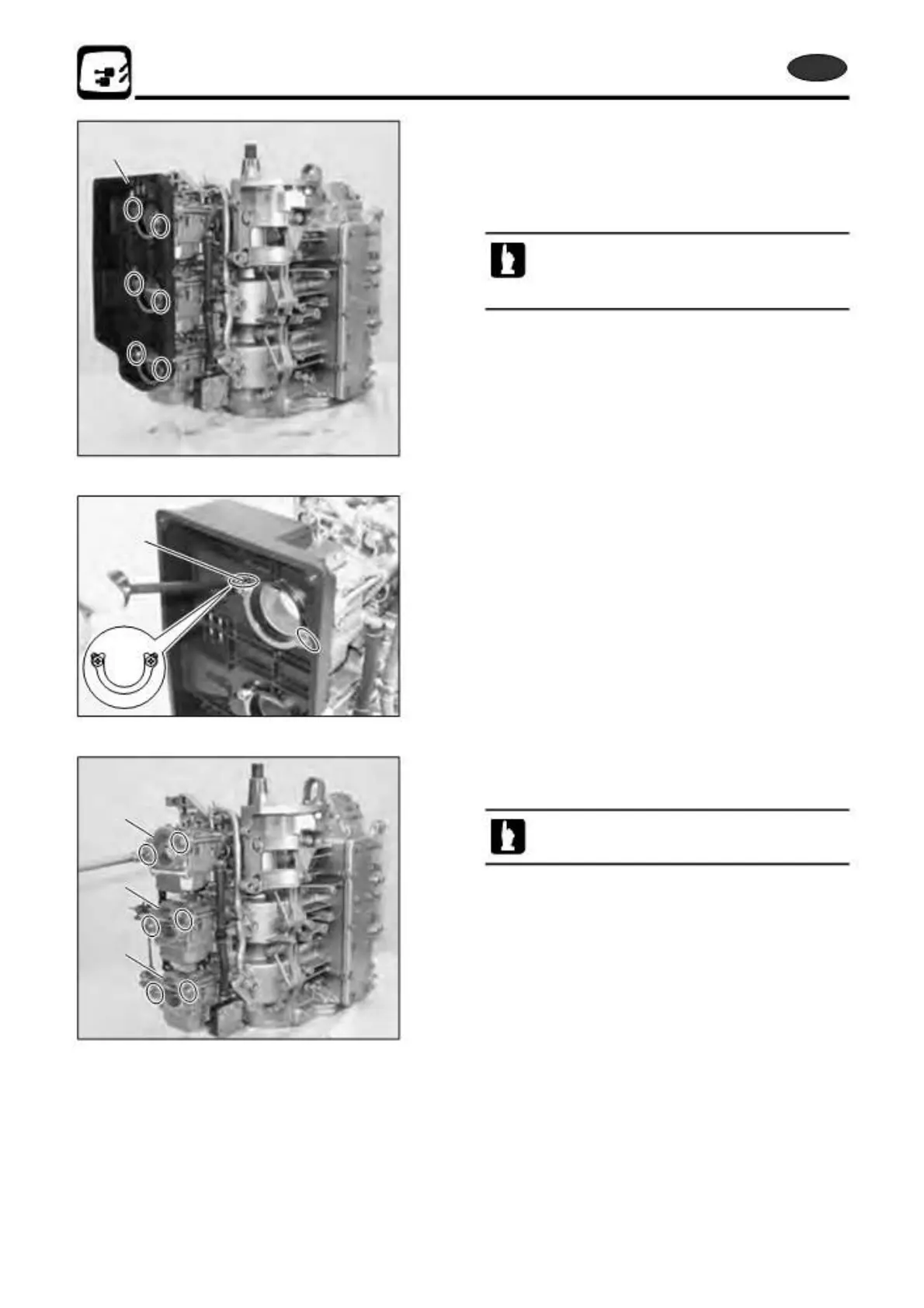

5) Removing Intake Silencer and
1
Carburetors
1. Remove intake silencer cover and loosen mounting bolts,
then remove intake silencer 1.
· Pry the tab a of lock plate as shown.
· When reuse intake silencer mounting bolts,
apply Three Bond’s thread lock # 1342.
a
*Do not reuse lock plate.
2. Loosen carburetor mounting bolts and remove the
carburetors.
#1
Loosen carburetor mounting bolts from #3 and #2
to #1.
#2
#3
5-38
2st X50D2 2011
