Raider 50 - Parts Layout; Fuel Line

Fuel System
2. Parts Layout

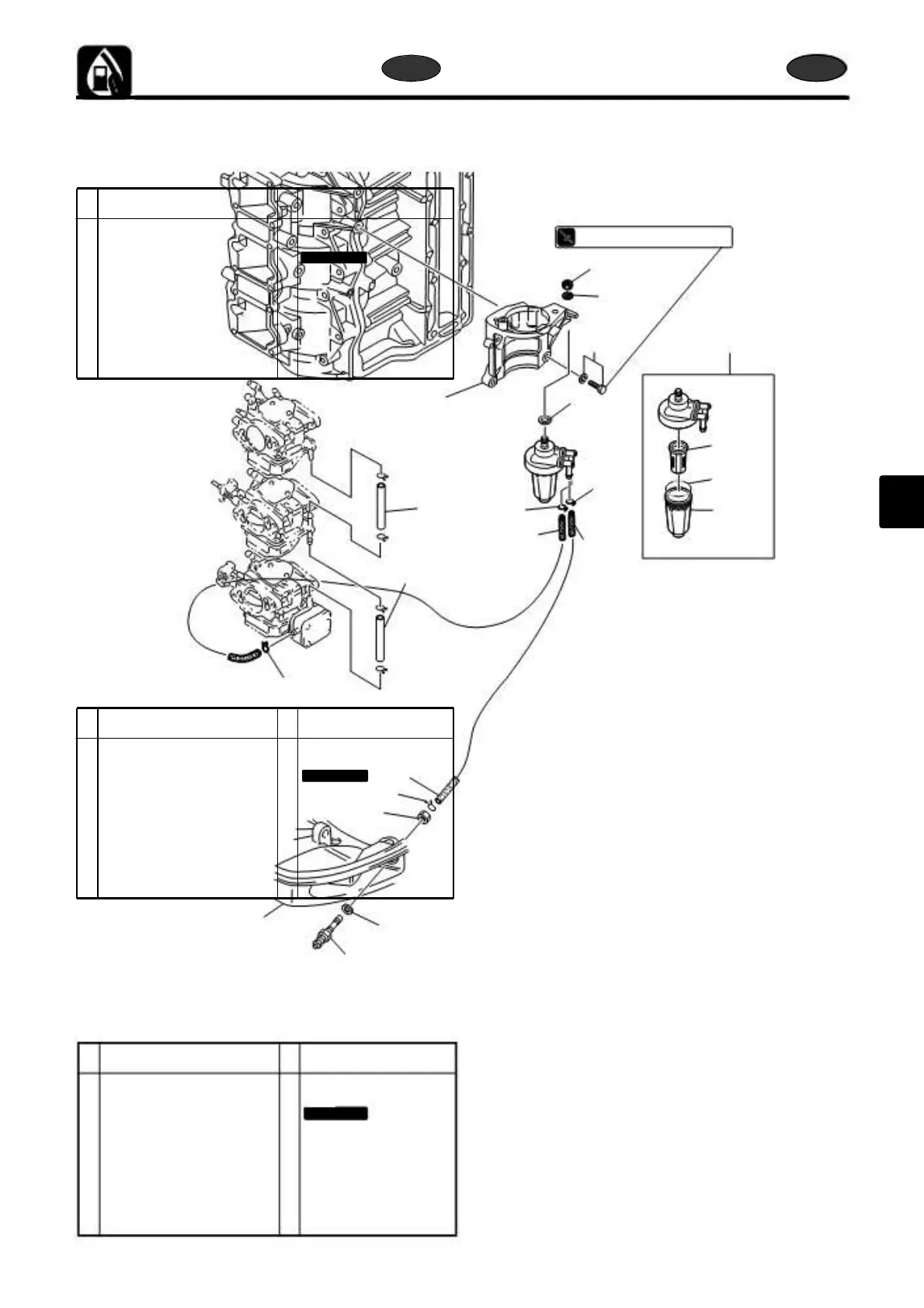

P/L Fig.5
Fuel line
Ref. No.
Description Q'ty Remarks
1 Fuel Filter Ass'y 1
2 Cup 1
3 O-Ring 1 Do not reuse.
4 Filter 1
5 Nut 1
6 Washer 2
5 Hose 1
7 Hose 1
8 Clip 4
9 Bracket 1
10 Bolt 4
4-4
2st 50D2 2011
