Power Unit
GB

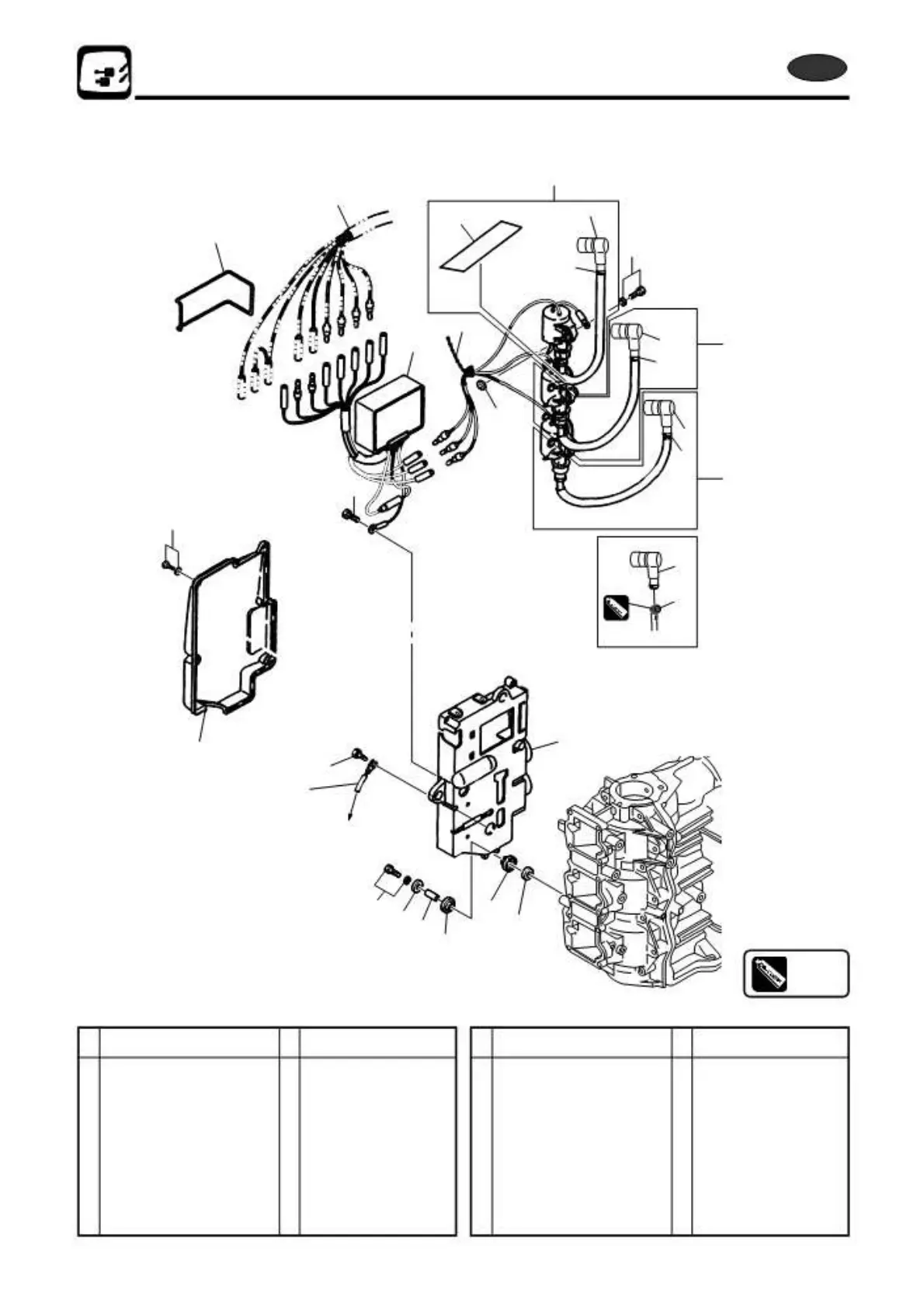

Electric Parts P/L Fig. 10
SOC
SOC
SOC
SOC
Ref.
No.
Description Q'ty Remarks
Ref.
Description Q'ty Remarks
No.
1 Ignition Coil Ass'y W/Label 1 F6T530 13 Bracket 1
2 Plug Cap 1 14 Cover 1
3 Caution Decal (B) 1 15 Screw 5
4 Ignition Coil W-Cap 2 F6T530 16 Mount 8.5-14-2.5 3
5 Band 3 17 Rubber Mount 8.5-14-2.5 3
6 Plug Cap Terminal 3 18 Spacer 6.2-9-15.7 3
7 Plug Cap 1 19 Bolt 3
8 Bolt 3 20 Washer 6.5-21-1 6
9 Gasket 6.2-11-1 3 21 Ground Cable L=270 1
10 Lead Wire Band 1 22 Bolt 1
11 CD Unit 1 F8T20572 23 Bolt 2
12 O-Ring 3.1-94.4 1
5-8
2st X50D2 2011
