Raider 50 - Removing Flywheel; Removing Electric Parts

Power Unit
GB
2 1 2
2

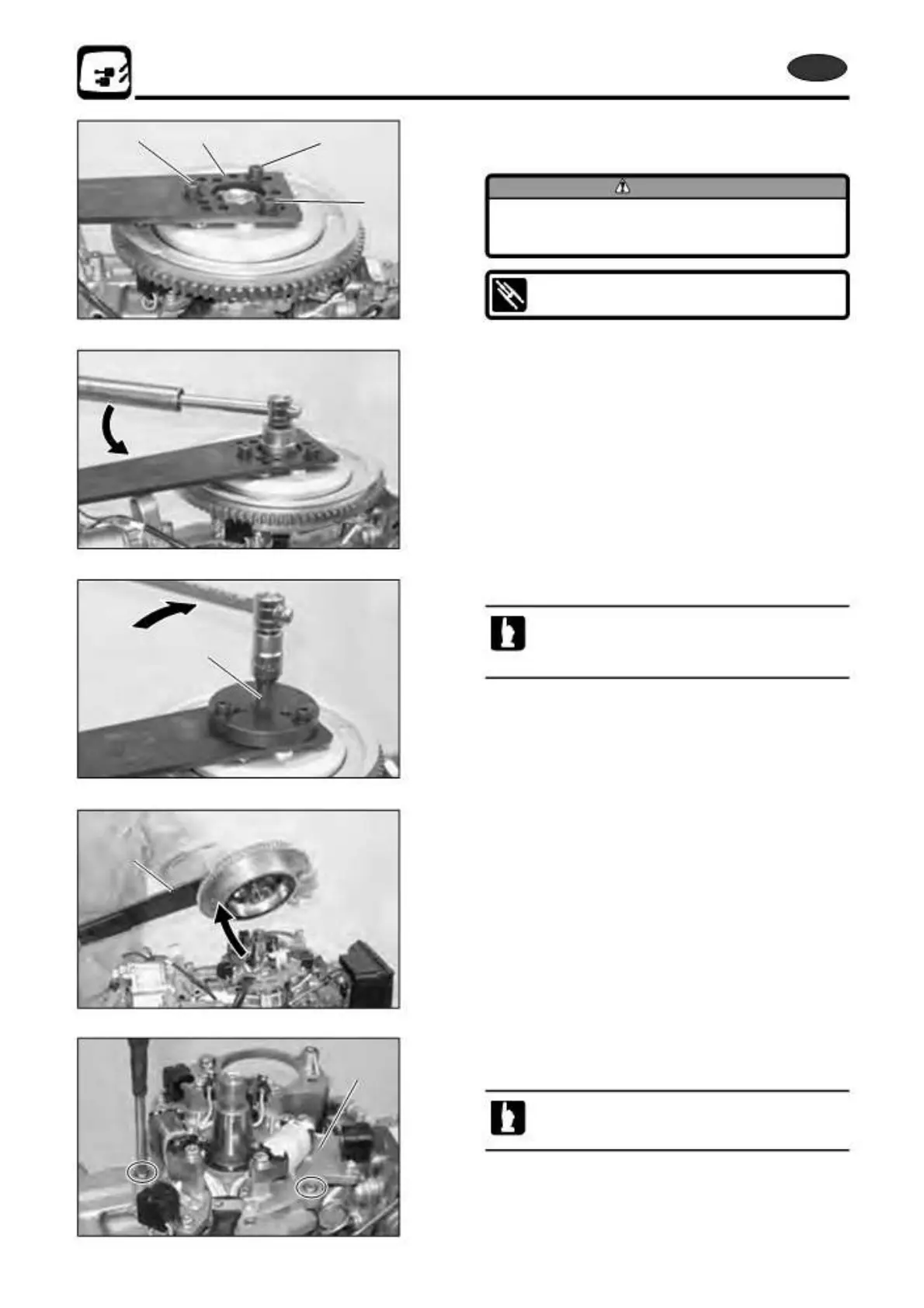

2) Removing Flywheel
1. Attach flywheel puller kit 1 to flywheel.
CAUTION
Use 25mm bolts 2 for removing. Otherwise
coil may be damaged and can short.
Fly Wheel Puller Kit 1 :
P/ N. 3T1-72211-0
2. Loosen flywheel nut and remove it.
3.
3
1
Remove flywheel by using pressing bolt 3.
· Turn center bolt clockwise to remove flywheel.
· Remove flywheel installing with fly wheel puller
kit 1.
3) Removing Electric Parts
1
1. Remove coil plate ass’y 1 from power unit.
D isconnect coil wire and ignition coil wire from CD
unit.
5
2st X50D2 2011
