Power Unit

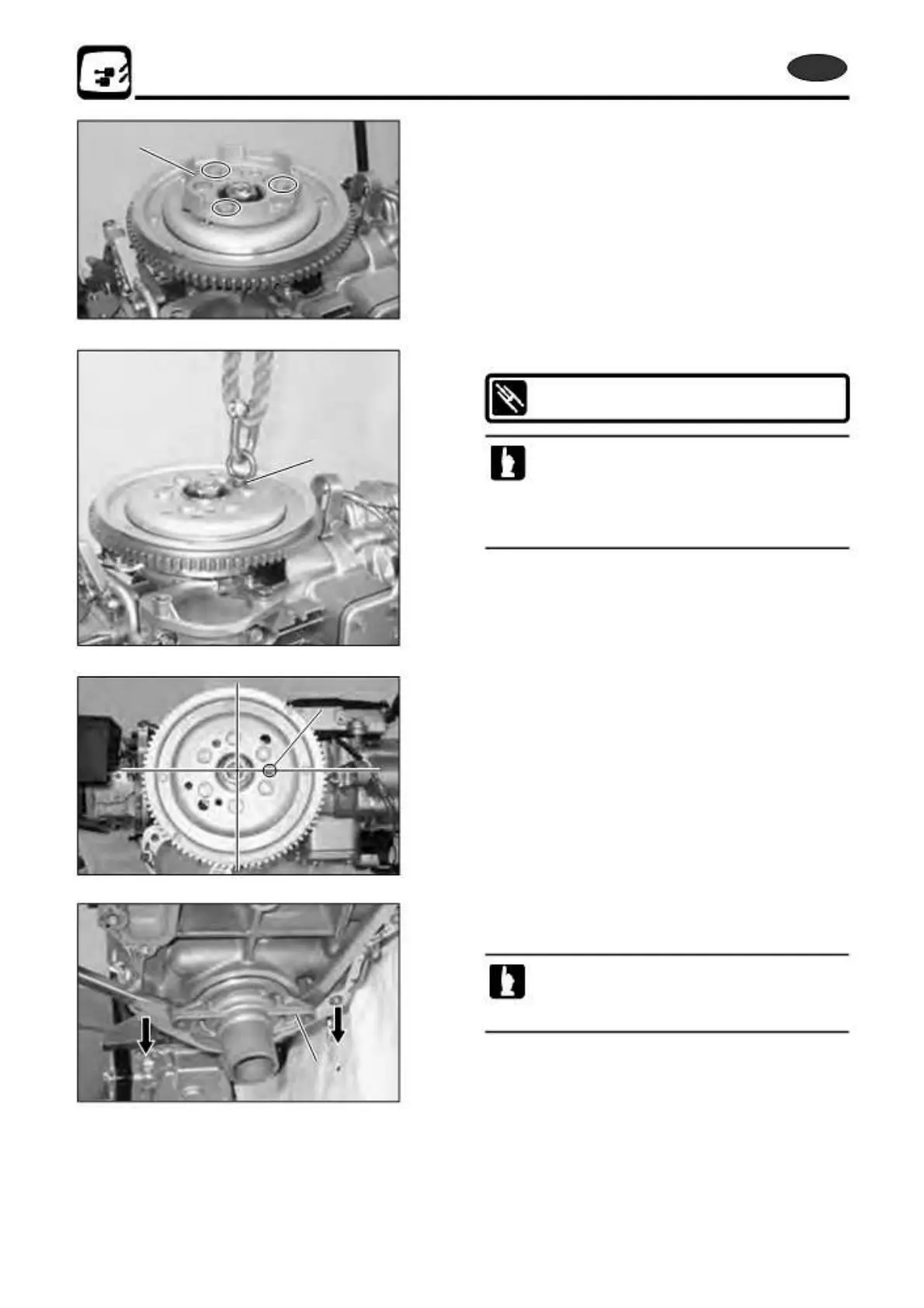

10. Loosen starter pully mounting bolts, and then remove
q
starter pully q.
11. Hoist power unit by using eye bolt w.
Eye Bolt :
P/N. 3T9-72212-0
w
· Turn the flywheel to adjust, in order for
installation position a of the eyebolt to be
center.
· Hoist power unit taking care not to catch wires and
hoses.
a
12. Remove two crank case bolts. Remove crank case head
e.
Put the tip of bladed screw driver in the mating
face of crank case head as shown to separate
from the engine body evenly.
e
5-30
2st X50D2 2011
