Raider 50 - Removing Intake Manifold and Reed Valves; Inspection of Reed Valve Assy

Power Unit
GB

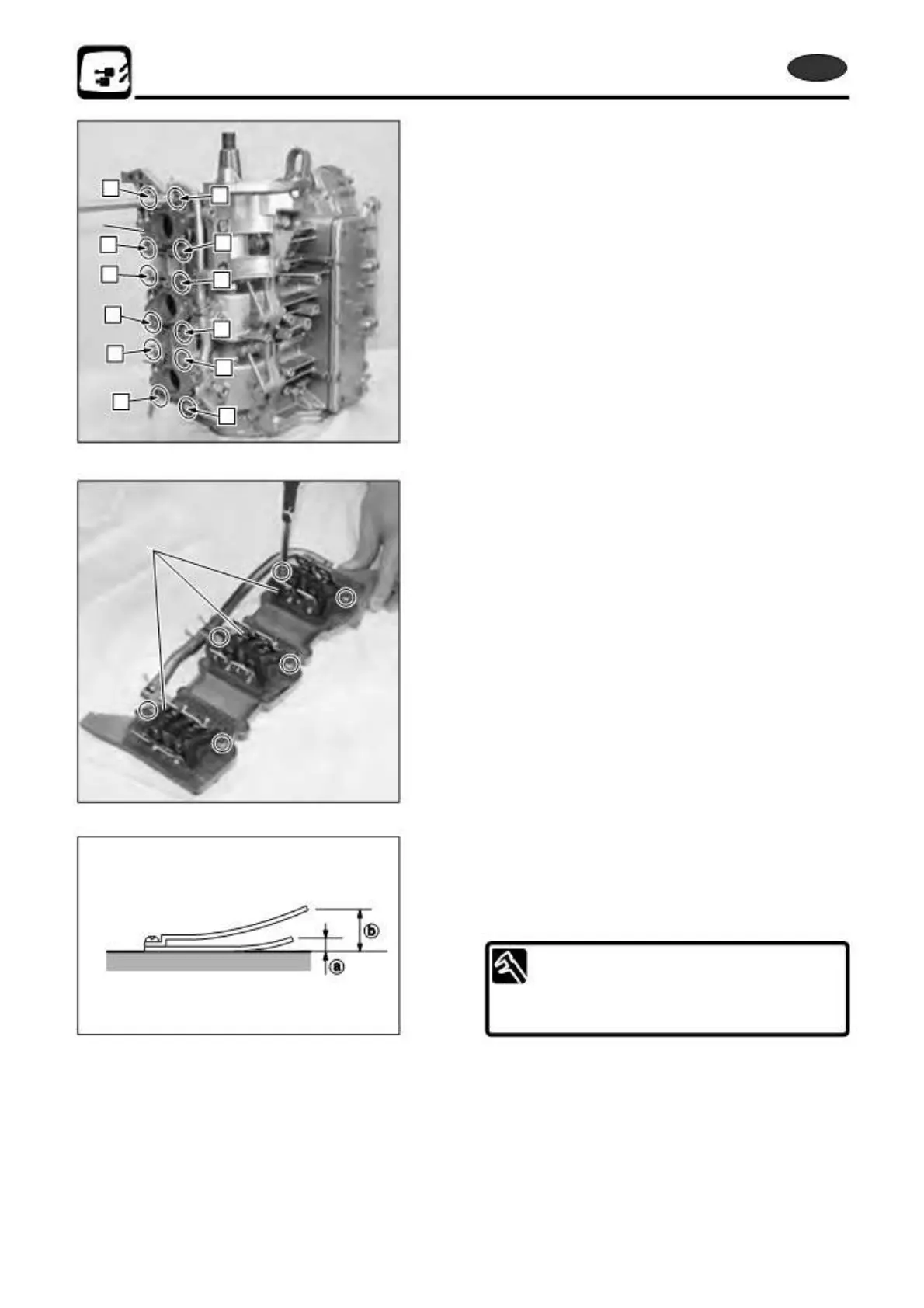

6) Removing Intake Manifold and
Reed valves
2
1. Loosen intake manifold mounting bolts and remove intake
1
manifold 1 in the order shown.
1
6
5
10
9
11
12
7
8
3
4
2. Loosen reed valve mounting screws, remove them, and
remove reed valve ass’y 2.
2
7) Inspection of Reed Valve Ass’y
1. Check reed valve and valve seat surface for bend, wear
and damage. Replace if the bend is out of the specified
range.
Reed Valve Stopper Height b :
9.3 - 9.5 mm (0.366 - 0.374 in)
Reed Valve Bend a :
0.4 mm (0.016 in)
5-40
2st X50D2 2011
