Service Information
RO
3. Tools and Instruments
1) Test Propeller
2) Measuring Instruments
Raider 50

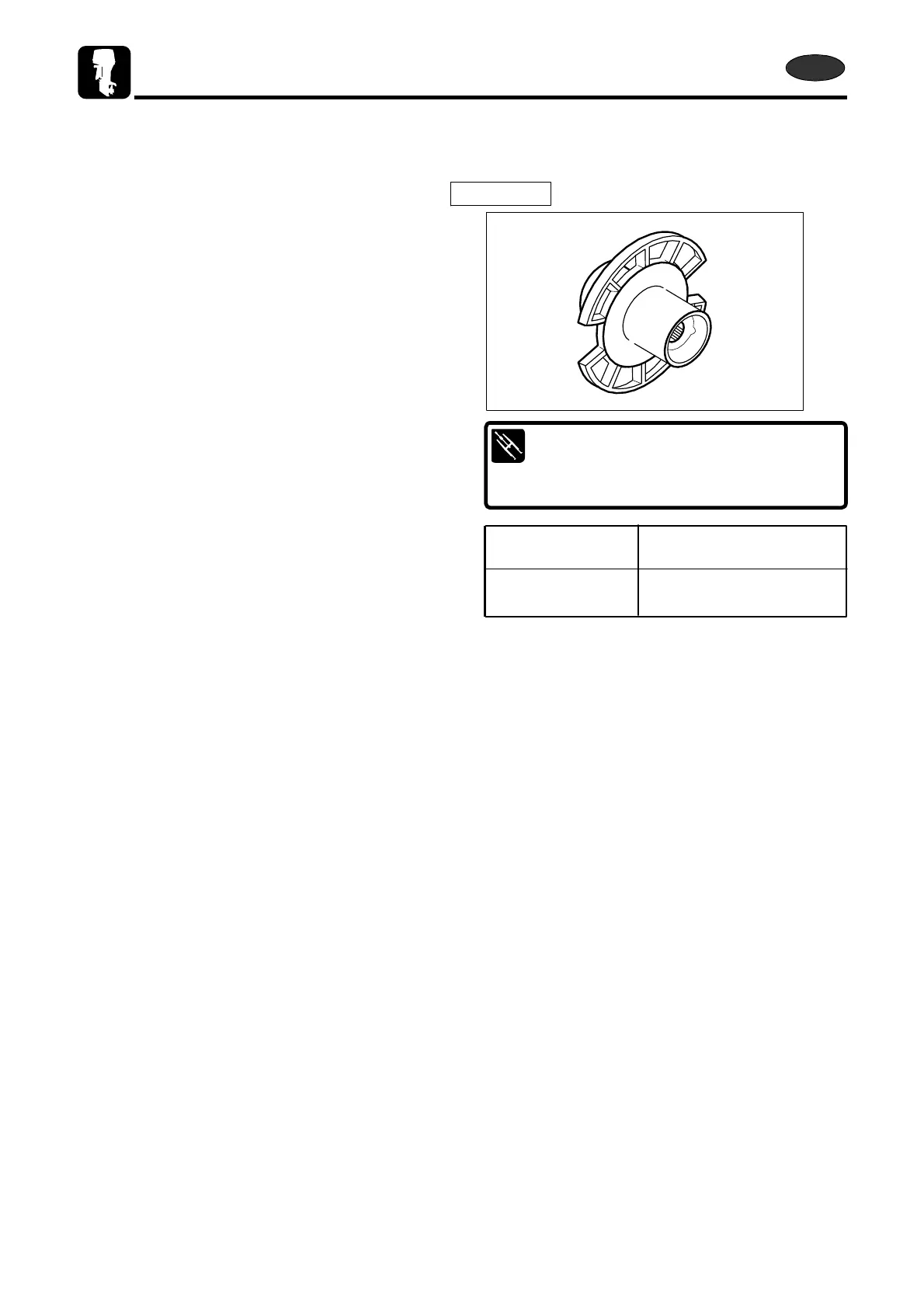

Test Propeller :
P/N. 3F3-64110-0
Outer : 236mm
Width : 45mm
Rotational speed at WOT
Model
(Wide Open Throttle) (r/min)
Raider 50 5000-5800
For the following measuring instruments, use commercially available ones.
Circuit tester ( Resistance : 1Ω, 10Ω, 10 kΩ, AC voltage : 30 to 300V, DC voltage : 30V, Internal voltage 3V or less )
Vernier calipers ( M1 type, 300 mm )
Micrometer ( minimum graduation of 0.01, outer, 0 to 25 mm, 25 to 50 mm, 50 to 75 mm )
Cylinder gauge ( 4 to 6 mm, 10 to 25 mm, 25 to 30 mm, 50 to 75 mm )
Ring gauge ( ø5.5, ø16, ø25, ø30, ø61)
Dial gauge ( minimum graduation of 0.01 )
Thickness gauge ( 0.03 to 0.3 mm )
V block
Surface plate ( 500 mm x 500 mm )
Dial gauge magnet base or dial gauge stand
Test Propeller is used in shop to instrument
Raider outboard motor.
