Raider 50 - Removing Throttle Link

Power Unit
GB
2.
2
3.
4
5
3

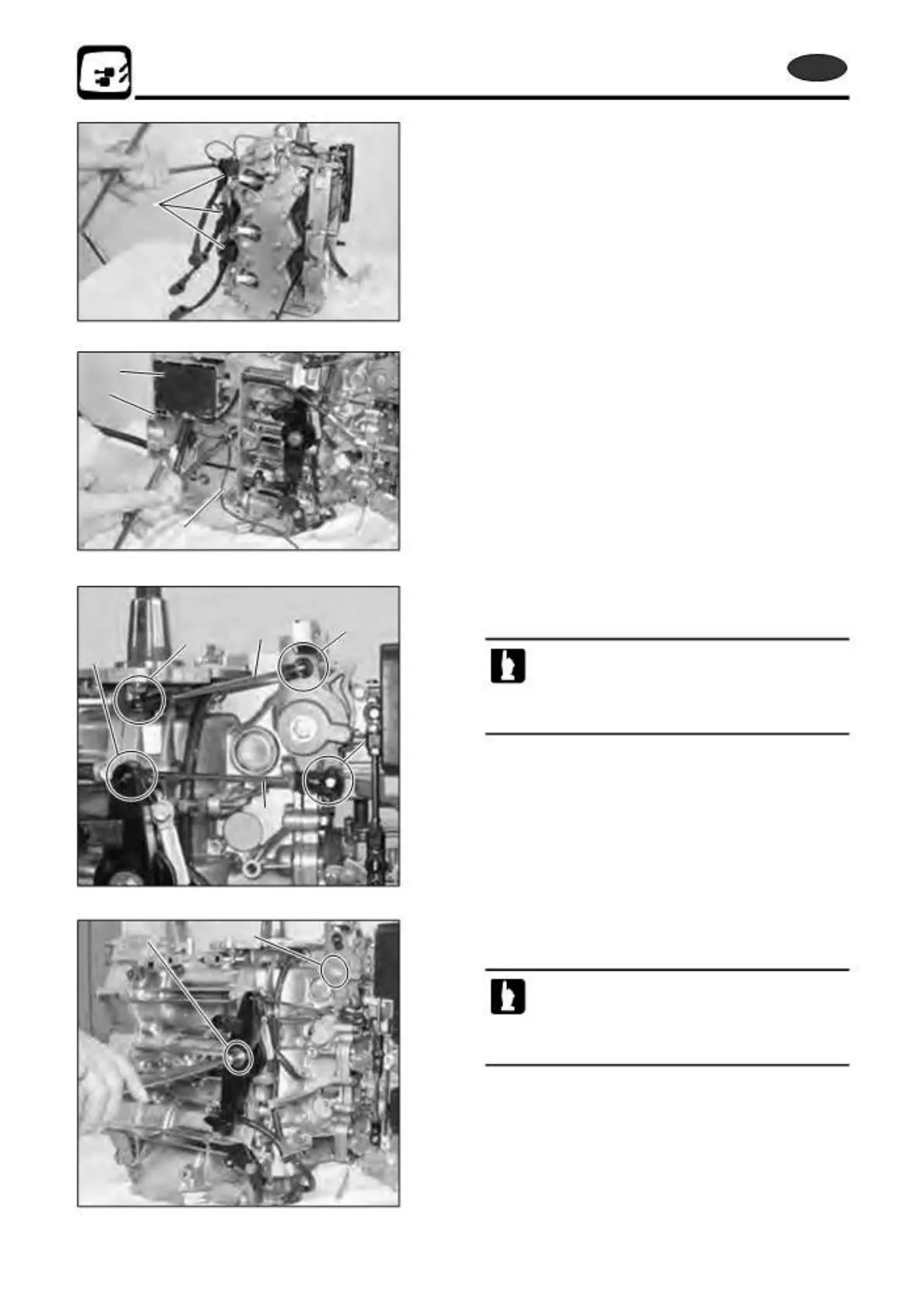

Remove all spark plug caps, ignition coils 2 and ground
wires.
Disconnect ground wire 3 and CD unit 4, then remove
electrical box 5.
4) Removing Throttle Link
a
1. Remove throttle link rod 1, 2.
b
2
a · Remove each link rod at the rod snap side a
first.
· When removing each link rod at the ball joint
side b, be careful not to apply force to the arm.
b
1
3 4
2. Loosen bolts, and then remove advancer arm 3 and
advancer lever 4.
· Check ball joint cap, rod snap for wear and
damage link rod for bend.
· After removal, use rubber band on bolt to keep
assembly together.
