Raider 50 - Parts Layout; Drive Shaft Housing

Bracket
GB

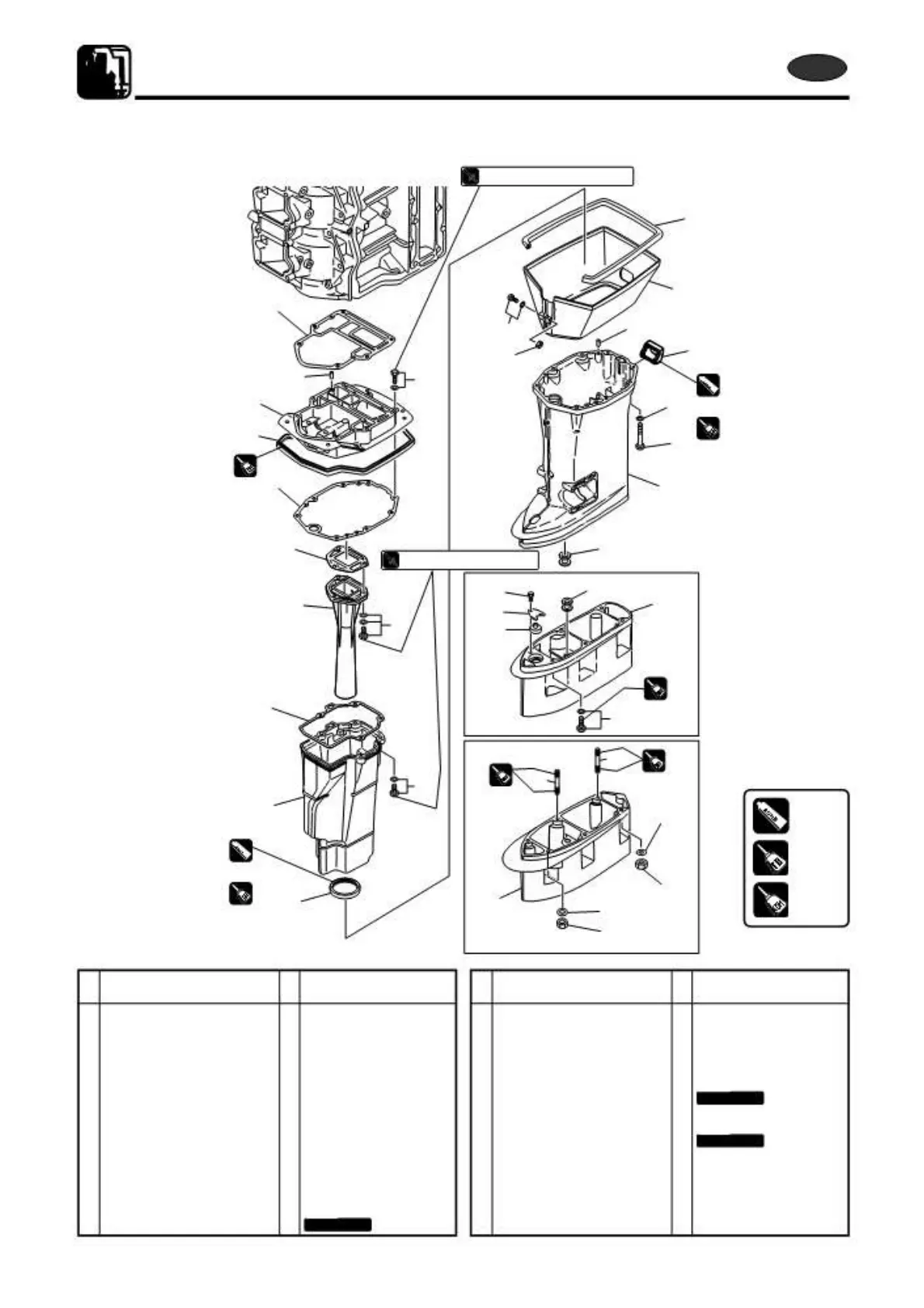

1.Parts Layout
P/L Fig. 13
Drive Shaft Housing
€
G17
G17
1741
1741
1741
1741
€
1342
1342
1342
Ref.
No.
G17
G17
1741
1741
Description Q'ty Remarks
1342 1342
1342
Ref.
Description
No.
G17
G17
1342
1 342
1741
1741
Q'ty Remarks
1-1 Drive Shaft Housing (L) 1 MX50D2 for Transom “L”, “UL” 16 Engine Basemen 1
1-2 Drive Shaft Housing (S) 1 Transom “S” 17 Engine Basement Seal L=830 1
2 Bolt 6 18 Bolt 4
3 Washer 6 19 Dowel Pin 6-12 4
4 Water Pipe Auxiliary Mount 1 Water Pipe Locking Rubber 20 Exhaust Pipe 1
5 Extension Housing 1 MX50D2 for Transom “UL” 21 Bolt 8-30 3
6 Water Pipe Auxiliary Mount 1 MX50D2 for Transom “UL” 22 Exhaust Pipe Gasket 1
Do not reuse.
7 Cam Rod Holder 1 MX50D2 for Transom “UL” 23 Exhaust Housing 1
8 Stopper 1 MX50D2 for Transom “UL” 24 Bolt 4
9 Bolt 1 MX50D2 for Transom “UL” 25 Exhaust Housing Gasket 1
Do not reuse.
10 Bolt 6 MX50D2 for Transom “UL” 26 Grommet 1
11 Extension Housing Ass'y 1 MWX50D2 27 Apron 1
12 Stud 6 MWX50D2 28 Grommet 1
13 Nut 6 MWX50D2 29 Seal 1
14 Washer 6 MWX50D2 30 Screw 1
15 Drive Shaft Housing Gasket 1
Do not reuse.
31 Nylon Nut 5-P0.8 1
7-2
2st X50D2 2011
