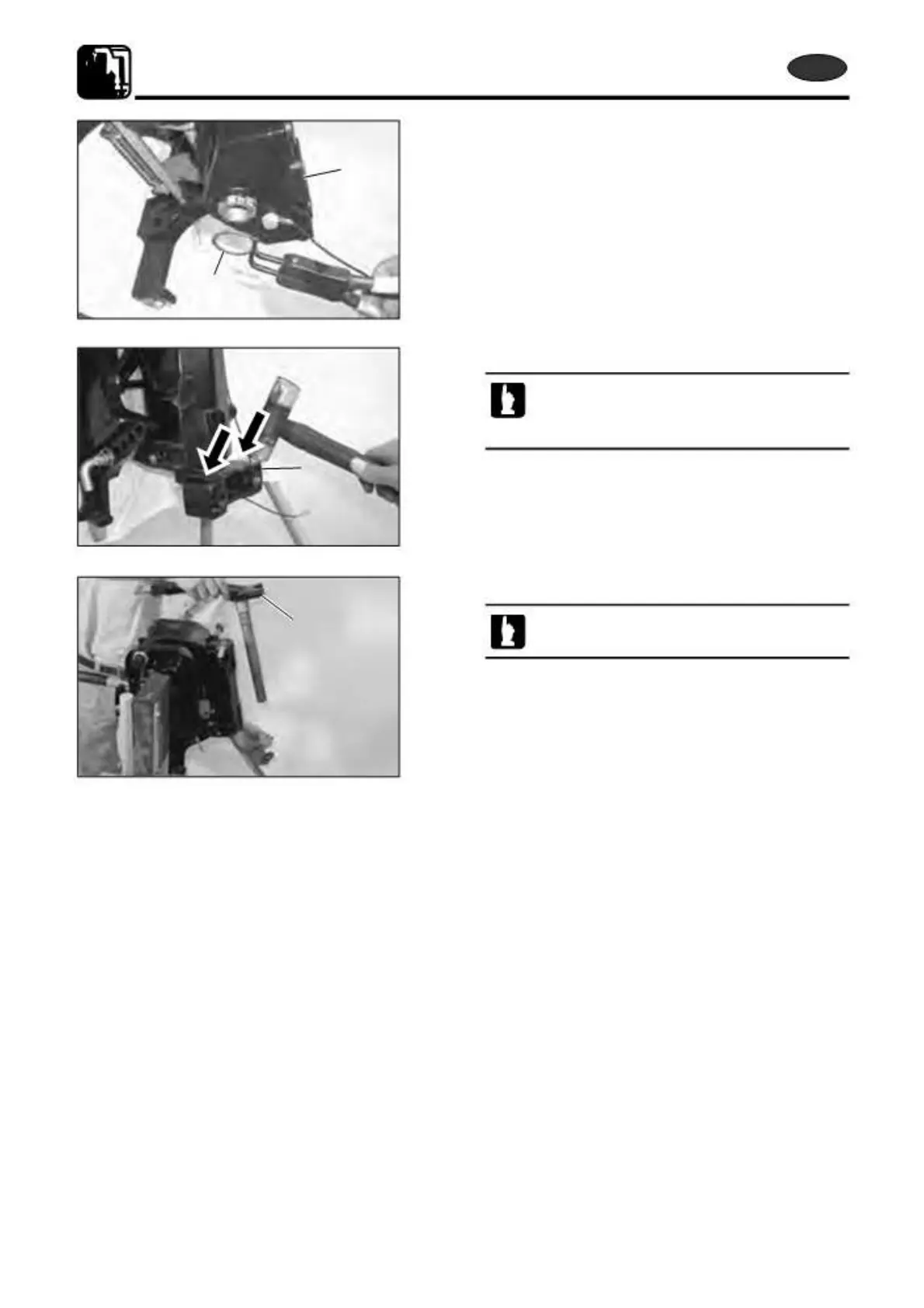

11) Removing Steering Shaft Arm
1. Remove "C" ring 1 that supports mount bracket 2.
2. Remove mount bracket 2.
When mount bracket cannot be removed, tap the
bracket at both ends alternately by using a plastic
hammer.
3. Pull up steering shaft arm 3 to remove.
Do not lose bushing and O-ring.
