Raider 50 - Specifications

Service Data

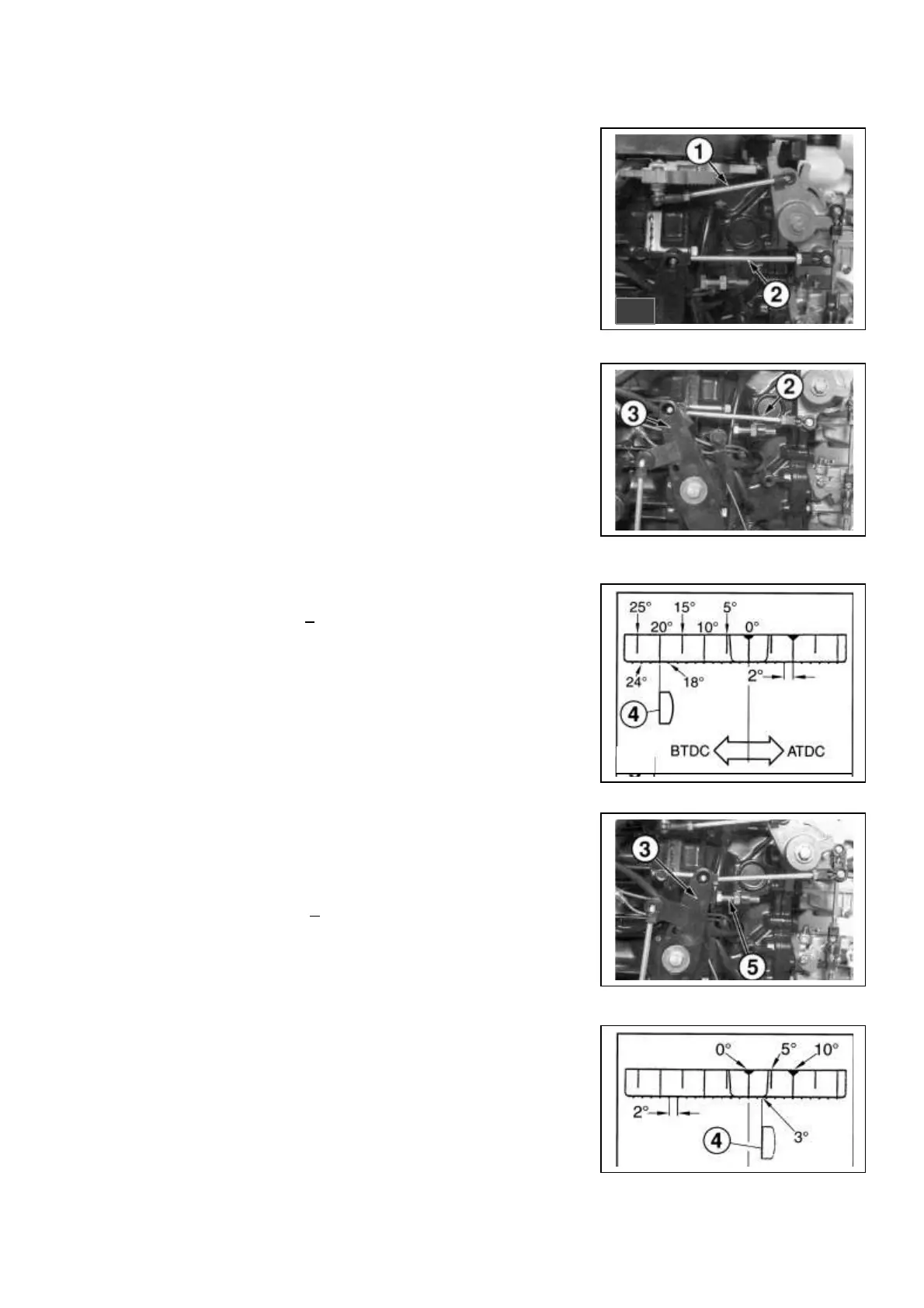

1. Ignition Timing Adjustment – Raider 50
Ignition Timing link (1) to specified length:
3.86 in. (98 mm)
Ignition throttle link (2) – 4.53 in. (115 mm)
2. Place advancer arm (3) in the maximum speed position
(wide open throttle) and make sure the carburetor throttle
Is fully open. If throttle is not fully open, make fine
Adjustments using throttle link (2).
3. Adjust ignition timing link (1) so ignition timing at full
Throttle is matches the following specifications:
BTDC 20 degrees + 1 degree.
Align flat surface (4) of crankcase mold boss with
Calibration marks on set ring.
4. Place advancer arm (3) in the minimum speed
Position (throttle fully closed) and adjust low speed
Side stopper (5) so ignition timing matches the
Following specification.
ATDC 3 degrees + 1 degree.
Align flat surface (4) of crankcase mold boss with
Calibration marks on set ring.
