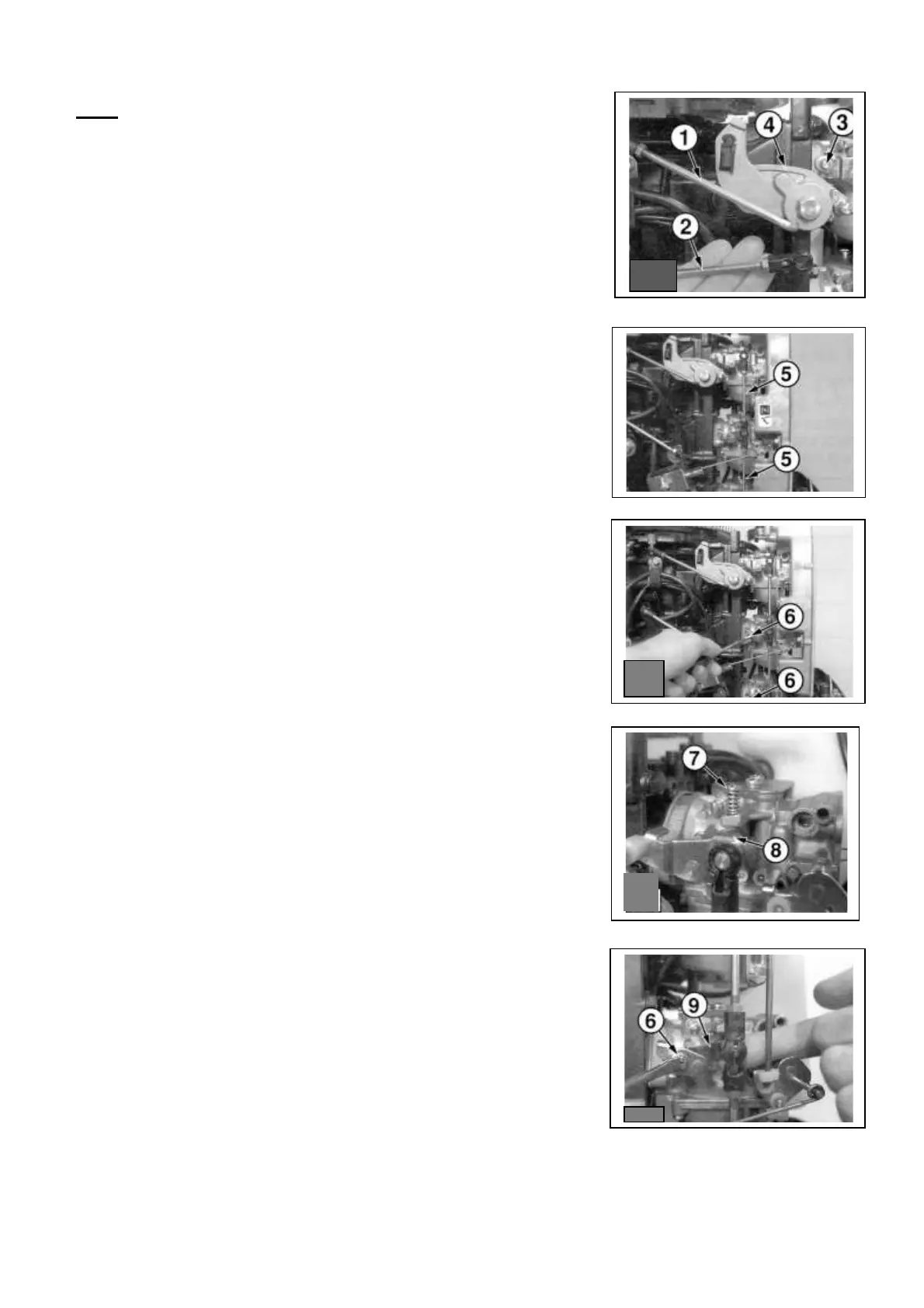

Carburetor Synchronization
NOTE
Engine ignition timing must be properly adjusted before
Synchronization the carburetors.
1. Remove the air silencer cover.
2. Disconnect ignition timing link (1) and throttle link (2) so
Throttle lever roller (3) does not make contact with
Throttle cam (4).
3. Adjust the length of each carburetor throttle link rod (5)
To specification:
Raider 50 – 3,54 inches (90 mm)
4. Reconnect timing link (1).
5. Turn all throttle lever screws (6) clockwise to loosen.
6. Loosen throttle stop- screw (7) on top carburetor so it does not
Make contact with throttle lever (8).
7. Starting with the second carburetor from the top of the engine,
Apply light upward pressure to linkage tab (9) and turn throttle
Lever screw (6) counterclockwise to tighten the throttle lever.
Repeat this step for each remaining carburetor, working
Toward the bottom carburetor.
