Raider 50 - Disassembly of Drive Shaft Assy; Inspection of Drive Shaft; Inspection of Pinion (B) Gear

Lower Unit
RO

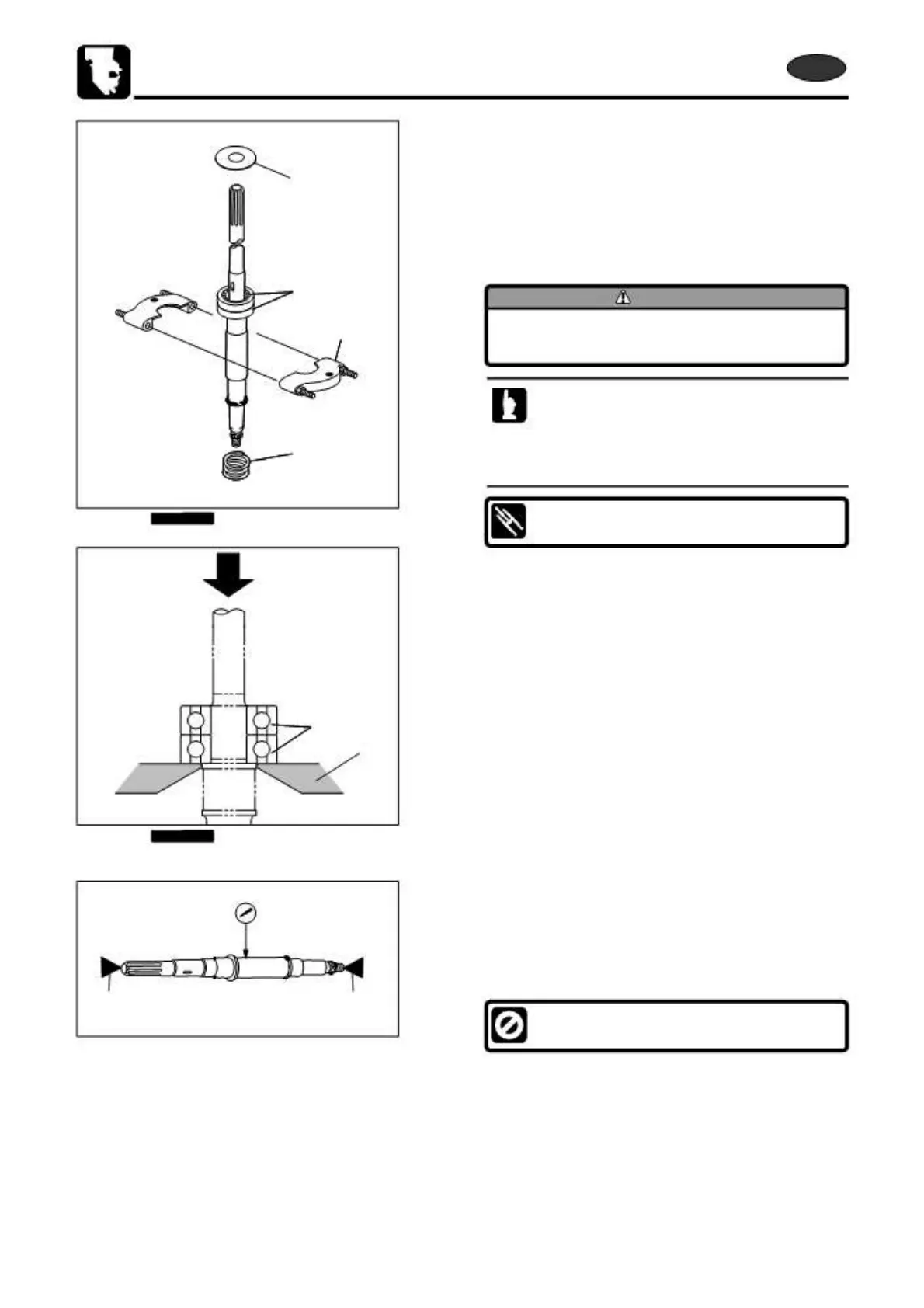

20) Disassembly of Drive Shaft Ass’y
3 Bearings
1
3
4
2
Do not reuse.
1. Remove outer shim 1.
2. Remove drive shaft spring 2.
3. Remove ball bearings 3 by using press and universal
puller 4.
CAUTION
Do not reuse removed bearing.
Be sure to replace with new one.
· Check bearing for play or deflection before
removing, and replace if necessary.
· When putting universal puller plate on the
bearing, hook the tip of puller’s claw on the inner
race of bearing correctly.
Universal Puller Plate 4 :
P/N. 3AC-99750-0
3
4
3 Bearings Do not reuse.
21) Inspection of Drive Shaft
1. Check drive shaft for bend and wear.
Replace if necessary.
2. Measure drive shaft runout.
a
a
Runout Limit :
0.4 mm (0.016 in)
a Supporting Points
22) Inspection of Pinion (B) Gear
1. Check gear teeth and dog for crack, wear and damage.
Replace if necessary.
6-54
2st 50D2 2011
