Maintenance

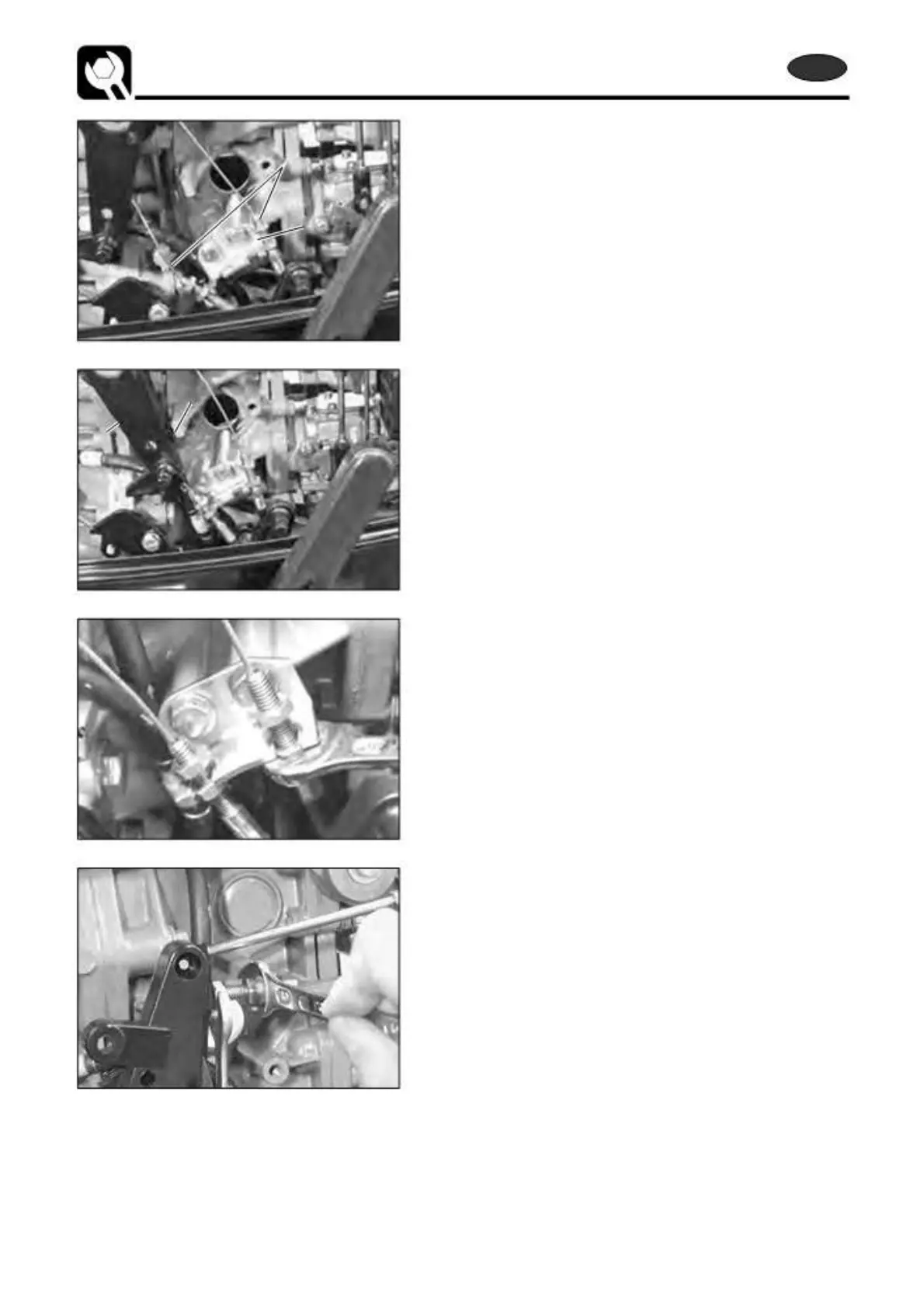

9) Adjustment of Throttle Cable
1
1. Remove throttle cable 1 from throttle cable bracket 2.
2
2. Temporally attach the left side cable to wire bracket, and
4
adjust a nut so that advancer arm 3 contacts the stopper
4, when throttle fully opened.
3
3. Temporally attach the right side cable to wire bracket, and
adjust a nut so that the throttle to be fully closed position.
4. Tighten each lock nut, and then fix the left and right cable.
5. Adjust stopper bolt so that advancer arm contacts the
stopper bolt, when throttle fully closed.
3-22
2st X50D2 2011
