Raider 50 - Assembling Carburetors

Fuel System
9) Assembling Carburetors

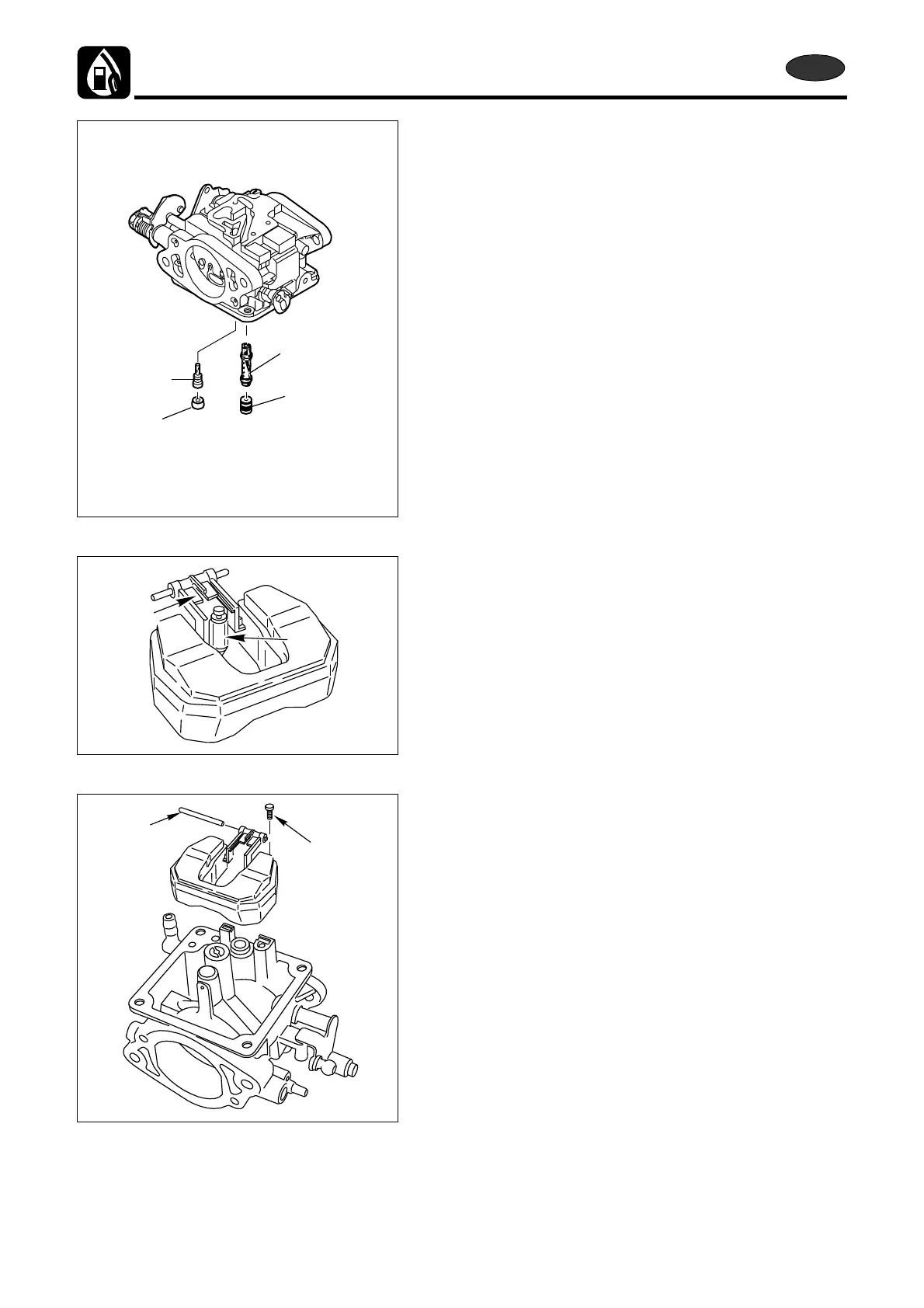

1. Install slow jet 1, main nozzle 2, main jet 3 and rubber
plug 4.
2
1
3
4
2. Attach needle valve 5 to float hinge 6.
6
5
3. Attach float ass’y with float arm pin 7 and secure with screw
7
8.
8
