Raider 50 - Inspection of Recoil Starter; Assembling of Recoil Starter

Power Unit
34) Inspection of Recoil Starter
1. Check ratchet, starter lock and all springs. Replace if any
deformation, wear or damage is found.
2. Check reel and starter case. Replace if any crack or
damage is found.
3. Check starter rope. Replace if any wear, unraveling or
damage is found.

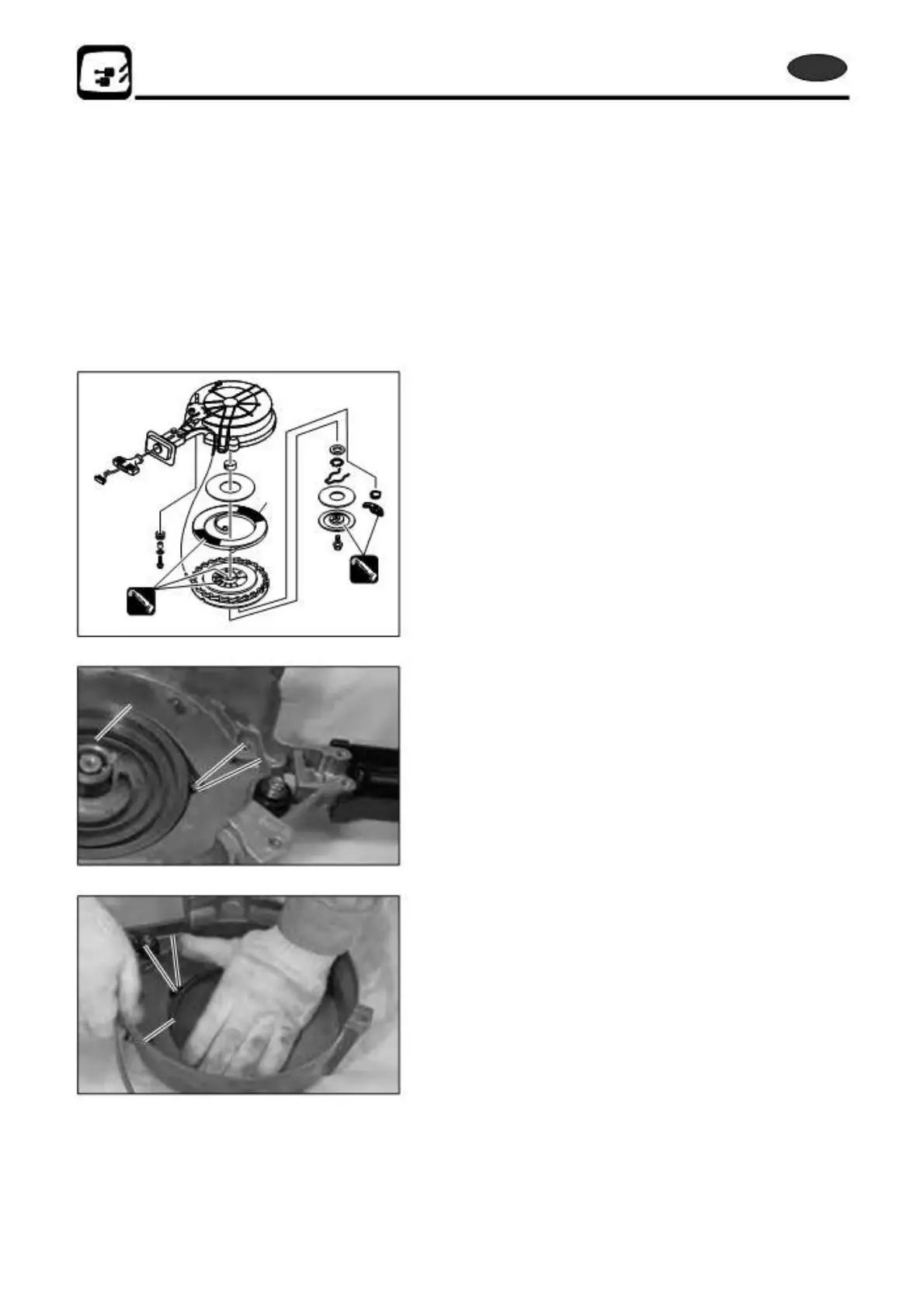

35) Assembling of Recoil Starter
Reverse disassembly procedure to assemble by taking care
of the following matters.
●Apply grease to parts as shown enough.
1
LIT
LIT
LIT
LIT
●When setting new starter spring 1 into starter case, face
starter spring outer edge hook a to the right and set it into
round projection b of starter case.
Since newly delivered starter spring is bound by wire, cut
the wire to release the tension after setting outer end hook in
the case.
●When reinstalling starter spring 1 as same into starter
case, face starter spring outer edge hook a to the right
1
and set it into round projection b of starter case.
a
Turn starter case and hold by hand to prevent the starter
b
spring pop out, then attach starter spring.
b a
1
5-98
2st X50D2 2011
